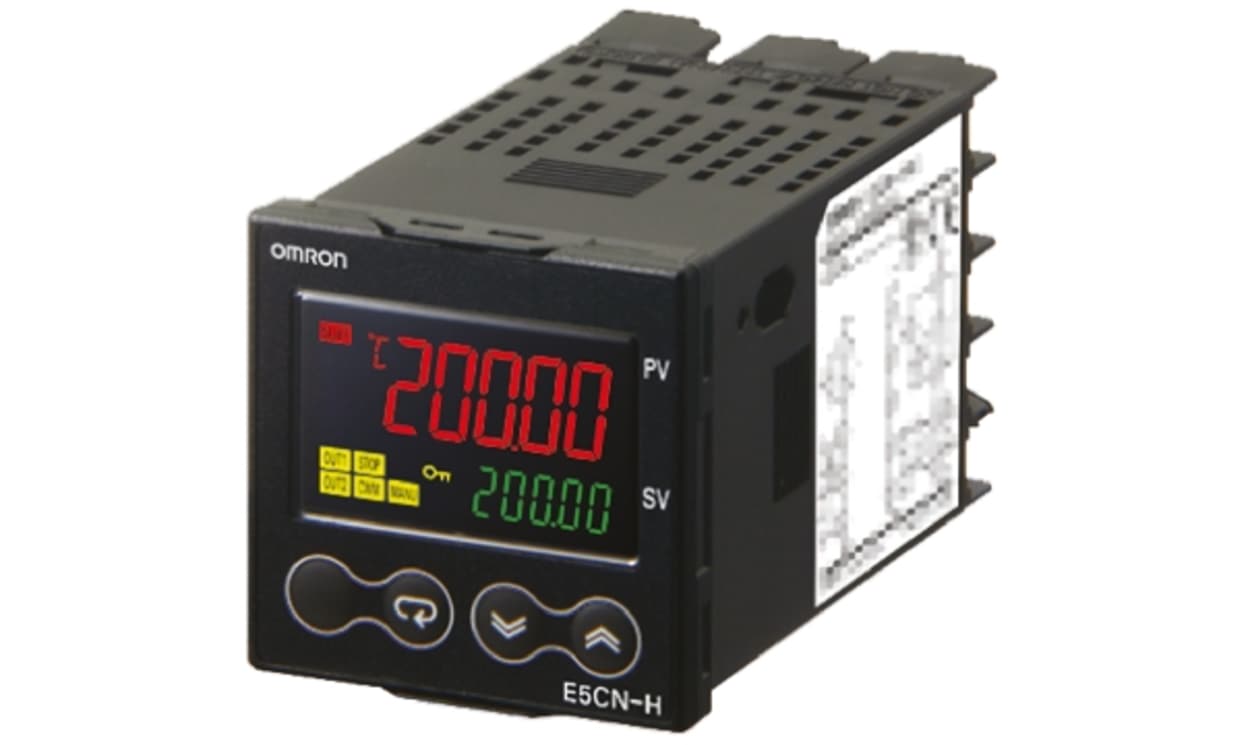

OMRON E5CN-HQ2MD-500 | E5CN PID Temperature Controller | 48x48 mm, SSR Output, 24 V AC/DC

Name: OMRON E5CN-HQ2MD-500 | E5CN PID Temperature Controller | 48x48 mm, SSR Output, 24 V AC/DC
Brand: OMRON
SKU: E5CN-HQ2MD-500
Availability: InStock

Part Number : E5CN-HQ2MD-500

This E5CN PID Temperature Controller from OMRON, part number E5CN-HQ2MD-500, pairs an SSR (logic) output with a 24 V AC/DC supply, in a 48 x 48 mm format. Supported control on the E5CN-HQ2MD-500: ON/OFF, PID and 2-PID control; sensor connection is via universal input (thermocouple, Pt100, analogue).

2 outputs
Ambient operating range: -10 to +55 °C
Listed display colour: red/green/yellow
Depth behind panel: 78 mm
Connections: screw terminal block
Listed input ranges: thermocouple -200 to +2300 °C, platinum resistance thermometer -200 to +850 °C, 0 to 10 V and 0 to 20 mA

Availability: low stock

Detailed Description
Specifications
Downloads

Omron Temperature Controller

The Omron E5CN series temperature controller offers single control voltage output for driving SSR and two auxiliary outputs. This high resolution, high speed, and high input accuracy controller has a width of 48mm and a height of 48mm (1/16 DIN) device. It has an operating supply of 24VAC/VDC.

Features and Benefits

A PV/SV-status display function can be set to automatically alternate between displaying the status of the Temperature Controller (auto/manual, RUN/STOP, and alarms) and the PV or SV
±0.1% FS analogue input
Available with cover terminal
Flexible contact outputs with logic operations (AND, OR, and delays) set from the Support Software (CX-Thermo Ver. 4.0)
High resolution display with 5 digits/0.01°C display
High-speed sampling cycle of 60ms
Preventive maintenance for relays using a control output ON/OFF counter
±0.1% PV input of thermocouple and PT
Universal inputs on all models (thermocouple, PT, analogue) to handle various sensors with one controller

Certifications

CSA C22.2 No. 1010-1
EN61010-1
EN61326
Front panel IP66 rated
IEC61010-1
Rear case IP20 rated
Terminals IP00 rated
UL 61010-1
VDE0106, Part 100 (Finger protection) when the terminal cover is mounted

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Outputs	2
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Control Type	ON/OFF, PID, 2-PID Controller
Series	E5CN
Range	0 → 10 V, 0 → 20 mA, -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Mounting Type	Panel Mount
Termination Type	Screw terminal block
Display Colour	Red/Green/Yellow
Panel Depth	78mm
