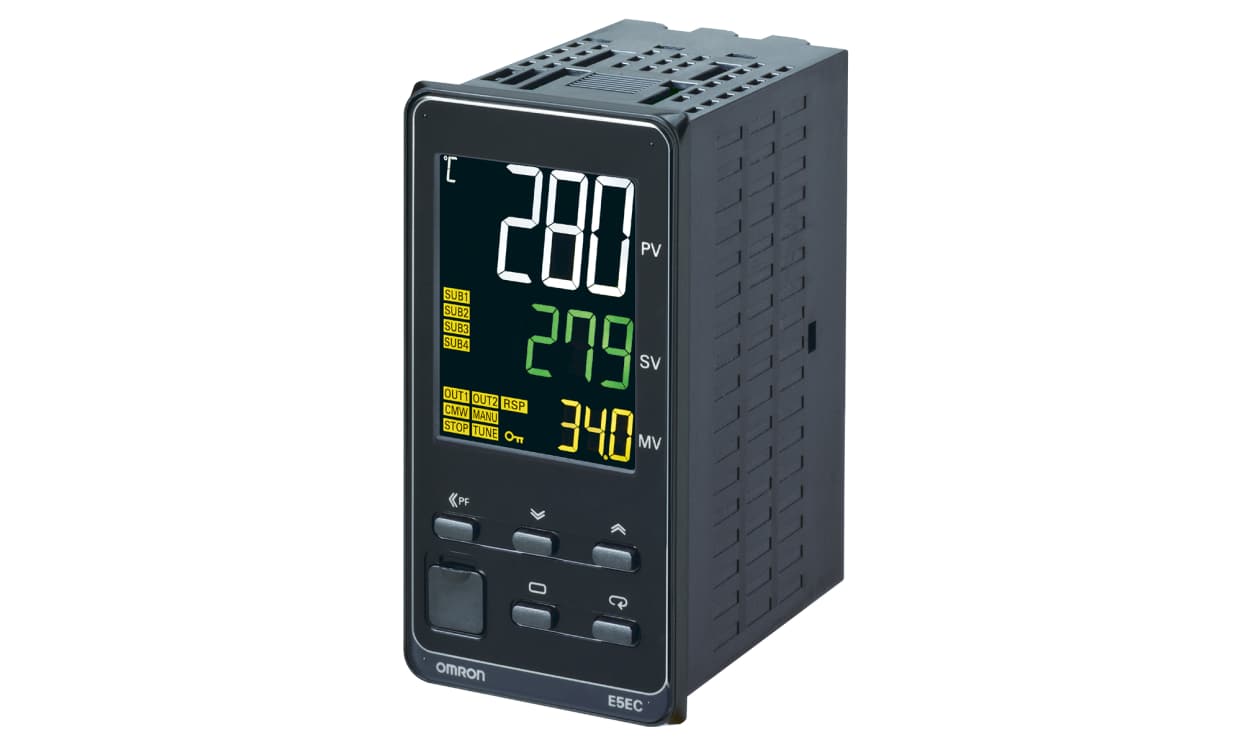

OMRON E5EC-QX4DBM-000 | PID Temperature Controller | 48 x 48 mm, SSR Output, 24 V AC/DC

Name: OMRON E5EC-QX4DBM-000 | PID Temperature Controller | 48 x 48 mm, SSR Output, 24 V AC/DC
Brand: OMRON
SKU: E5EC-QX4DBM-000
Availability: InStock

Part Number : E5EC-QX4DBM-000

The OMRON E5EC-QX4DBM-000 is a 48 x 48 mm panel-mount PID temperature controller from the E5EC series, fitted with one SSR/logic output and powered from 24 V AC/DC; the listed temperature range is -200 to +1300 °C (Type K), -200 to +850 °C (Pt100).

Control: ON/OFF, PID, 2-PID
Number of inputs: 1, universal (platinum RTD, Pt100, thermocouple, analogue)
Protection: IP00, IP20, IP66
Display: 11-segment digital display
Depth behind panel: 59 mm
Operating temperature: -10 °C to +55 °C

Availability: low stock

Detailed Description
Specifications
Downloads

E5EC Digital Temperature Controllers (48 x 96mm)

Premium range of temperature controllers which support a wide variety of applications. The controllers cover a comprehensive array of sensor inputs including Universal, Thermocouple, PT and Analogue current/voltage. Within the E5EC range, there is a temperature controller to suit your requirements.

• Large white LCD display, 18 mm of height for best visibility
• Three level display- PV/SV/MV displayed at the same time with 4-digit display
• 50 ms sampling period time
• Extended range of I/O's: 4 auxiliary outputs, 6 event inputs, transfer output and remote SP's
• Short housing case with only 60 mm of depth
• Easy connection to PLC with communications that require no programming
• Component communications can be used to link temperature controllers to each other
• Tool ports provided both on top panel and front panel
• Easy set up with CX-Thermo software (Windows XP, 7) without additional power supply via USB conversion cable

Approvals

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Inputs	1
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	+100 → +1800 (Type B Thermocouple) °C, 0 → +1300 (Type PLII Thermocouple) °C, 0 → +1700 (Type R Thermocouple) °C, 0 → +1700 (Type S Thermocouple) °C, 0 → +2300 (Type W Thermocouple) °C, -100 → +850 (Type J Thermocouple) °C, -100 → +850 (Type L Thermocouple) °C, -199.9 → +400 (Type T Thermocouple) °C, -199.9 → +400 (Type U Thermocouple) °C, -199.9 → +500 (JPt100) °C, -200 → +1300 (Type K Thermocouple) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +600 (Type E Thermocouple) °C, -200 → +850 (Pt100) °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	11-Segment Digital Display
IP Rating	IP00, IP20, IP66
Mounting Type	Panel Mount
Additional Functionality	ON/OFF, PID Controller
Series	E5EC
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Range	Omron E5EC
Termination Type	Push In
Panel Depth	59mm
