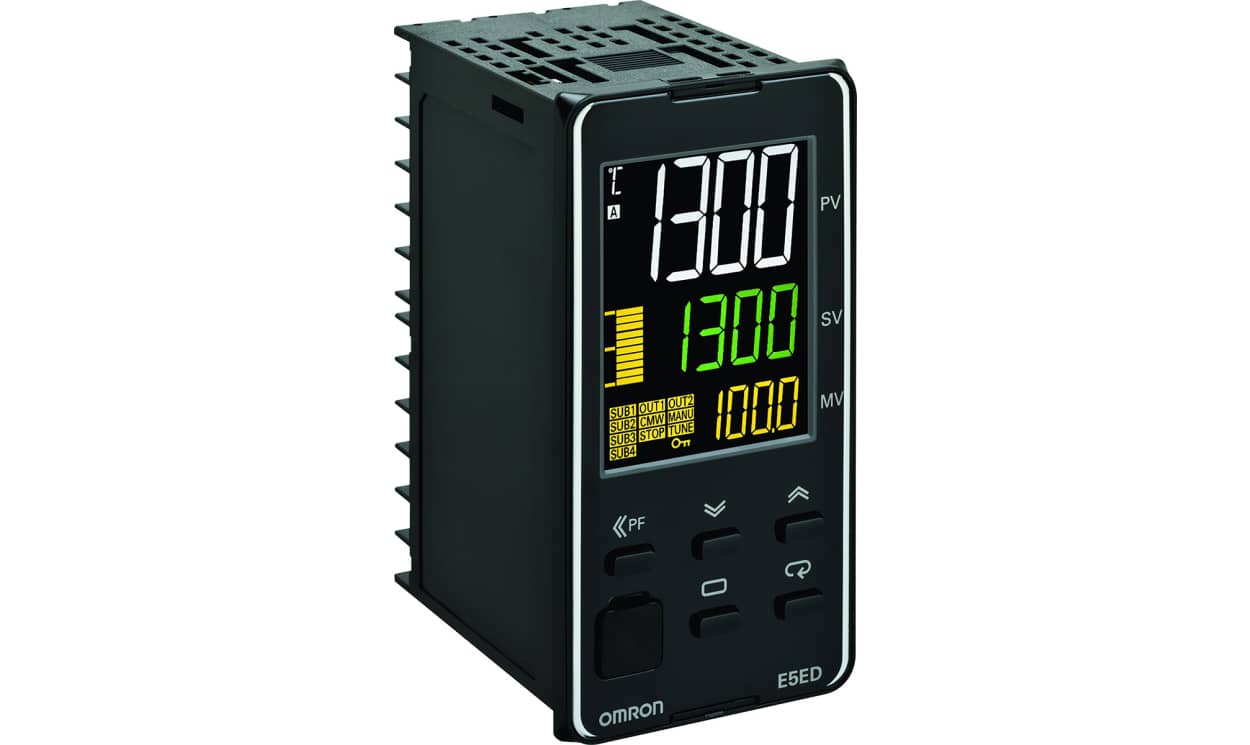

Name: Omron E5ED-QX4A6M-000, E5ED Panel Mount PID Temperature Controller, 48 x 48mm 2 Input, 2 Output SSR, Solid State Relay, Logic, 100 → 240
Brand: OMRON
SKU: E5ED-QX4A6M-000
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5ED-QX4A6M-000, E5ED Panel Mount PID Temperature Controller, 48 x 48mm 2 Input, 2 Output SSR, Solid State Relay, Logic, 100 → 240

Part Number : E5ED-QX4A6M-000

Availability: Sold out

Detailed Description
Specifications

E5ED Digital Temperature Controllers

E5ED series digital PID temperature controllers optimise control by detecting status changes and satisfy both productivity and quality in various applications.

Features and Benefits

48 x 96 mm
4-digit, three-level displays PV, SV and MV displayed at the same time
Functions specialised for packaging machines
Functions specialised for water-cooled extruders
Indication data (power ON time, ambient temperature and output On/Off count)
Draw-out structure for easy maintenance

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Inputs	2
Number of Outputs	2
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	11-Segment Digital Display
IP Rating	IP00, IP20, IP66
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Range	Omron E5ED
Series	E5ED
Mounting Type	Panel Mount
Termination Type	Screw terminal block
Panel Depth	62mm
