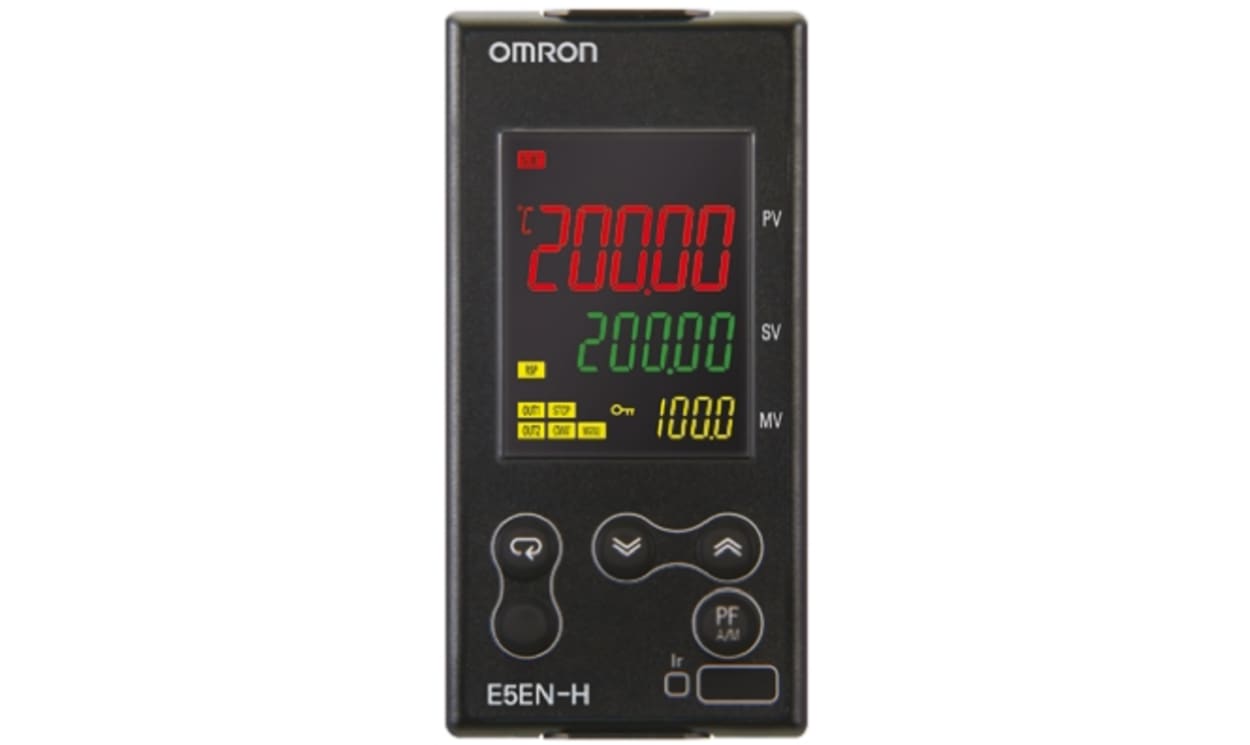

OMRON E5EN-HAA2HBM-500 100-240 VAC | PID Temperature Controller | 48 x 48 mm, 100-240 V AC

Name: OMRON E5EN-HAA2HBM-500 100-240 VAC | PID Temperature Controller | 48 x 48 mm, 100-240 V AC
Brand: OMRON
SKU: E5EN-HAA2HBM-500 100-240 VAC
Availability: InStock

Part Number : E5EN-HAA2HBM-500 100-240 VAC

OMRON's E5EN-HAA2HBM-500 100-240 VAC brings 3 outputs (with additional card) to a 48 x 48 mm E5EN PID temperature controller, supplied at 100 to 240 V AC and built for panel-mount use; the specified temperature range is -200 to +2300 °C (thermocouple), -200 to +850 °C (platinum RTD).

Control modes: ON/OFF, PID, 2-PID
Input types: universal (platinum RTD, Pt100, thermocouple, analogue)
Display colour: red/green/yellow
Panel depth: 78 mm
Operating temperature: -10 °C to +55 °C
Terminals: screw terminal block

Availability: low stock

Detailed Description
Specifications
Downloads

E5EN-H/E5AN-H 1/8 and 1/4 DIN Temperature Controllers

A high-performance controller with high resolution, high speed, and high input accuracy.In addition it has logic operations and preventive maintenance functions, and has an infrared port on the front panel.

High-resolution display with 5 digits/0.01°C display
High-speed sampling cycle of 60 ms.
Thermocouple/Pt input: ±0.1% of PV
Analogue input: ±0.1% FS
Universal inputs on all models (thermocouple, PT, analogue) to handle various sensors with one controller
PV/SV-status display function can be set to display the PV or SV and the status of the temperature controller (auto/manual, RUN/STOP and alarms)
Flexible contact outputs with logic operations (AND, OR, and delays) set from the Support Software (CX-Thermo Ver. 4.0)
Preventive maintenance for relays using a control output ON/OFF counter

Omron E5N-H Range

Brand	Omron
Output Type	With additional card
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Outputs	3
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Control Type	ON/OFF, PID, 2-PID Controller
Series	E5EN
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Mounting Type	Panel Mount
Range	0 → 10 V, 0 → 20 mA, -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C
Panel Depth	78mm
Termination Type	Screw terminal block
Display Colour	Red/Green/Yellow
