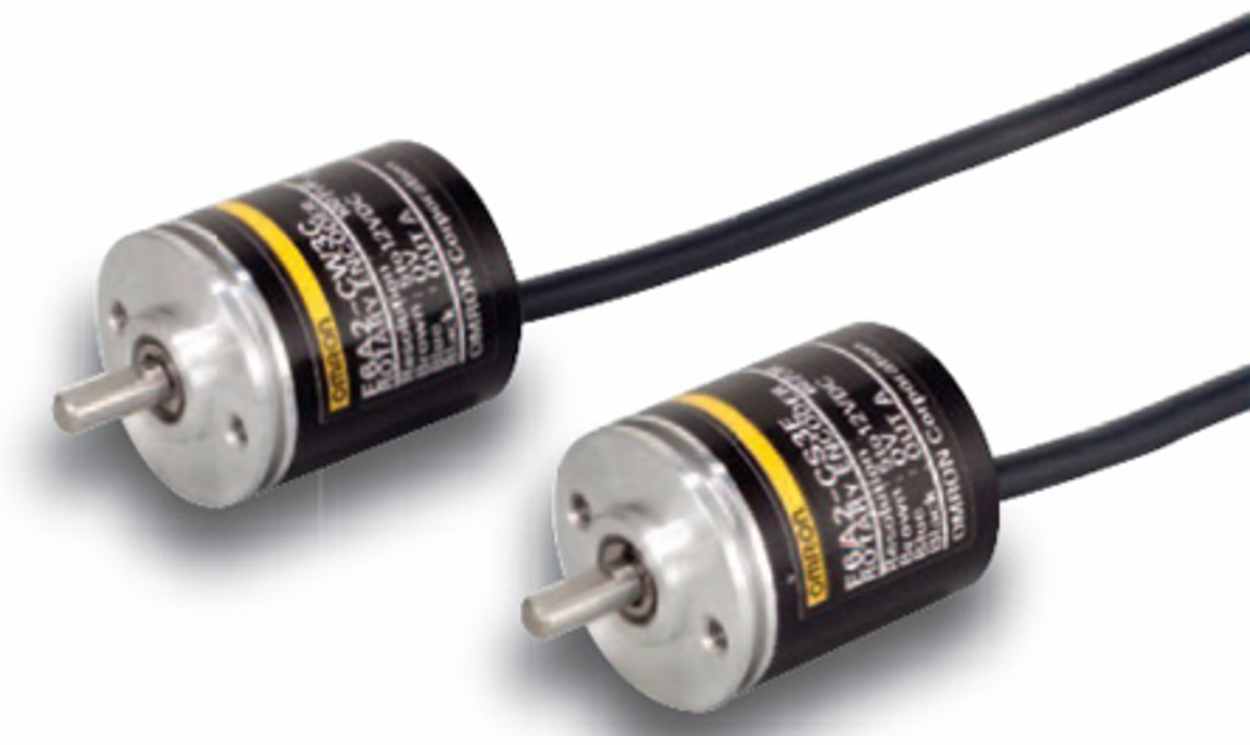

Omron E6A2-CS5C 100P/R 0.5M, E6A2 Series Incremental Incremental Encoder, 100 ppr, NPN Open Collector Signal, Solid Type, 4mm Shaft

Name: Omron E6A2-CS5C 100P/R 0.5M, E6A2 Series Incremental Incremental Encoder, 100 ppr, NPN Open Collector Signal, Solid Type, 4mm Shaft
Brand: OMRON
SKU: E6A2-CS5C 100P/R 0.5M
Availability: InStock

Part Number : E6A2-CS5C 100P/R 0.5M

Availability: low stock

Detailed Description
Specifications
Downloads

General Purpose Incremental Encoders

Incremental Encoders output a pulse string according to the rotational displacement of an axis. The number of rotations can be detected by counting the number of pulses. Improved reliability with reverse connection and load shortcircuit
protection..

Moment of inertia: 1´10−6 kg·m²max.; 3 ´ 10−7 kg·m² max. at 600 P/R max
External diameter E6A2: 25 mm
External diameter E6B2: 40 mm
External diameter E6C2: 50 mm
External diameter E6C3: 50 mm
External diameter E6FA: 60 mm

Omron Incremental Rotary Encoders

Brand	Omron
Encoder Technology	Incremental
Series	E6A2
Pulses Per Revolution	100
Maximum Revolutions	5000rpm
Output Signal Type	NPN Open Collector
Shaft Type	Solid
Supply Voltage	12 → 24 V dc
Shaft Diameter	4mm
Resolution	100 ppr
IP Rating	IP50
Overall Height	46.5mm
Overall Width	22mm
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Switching Frequency	30 kHz
