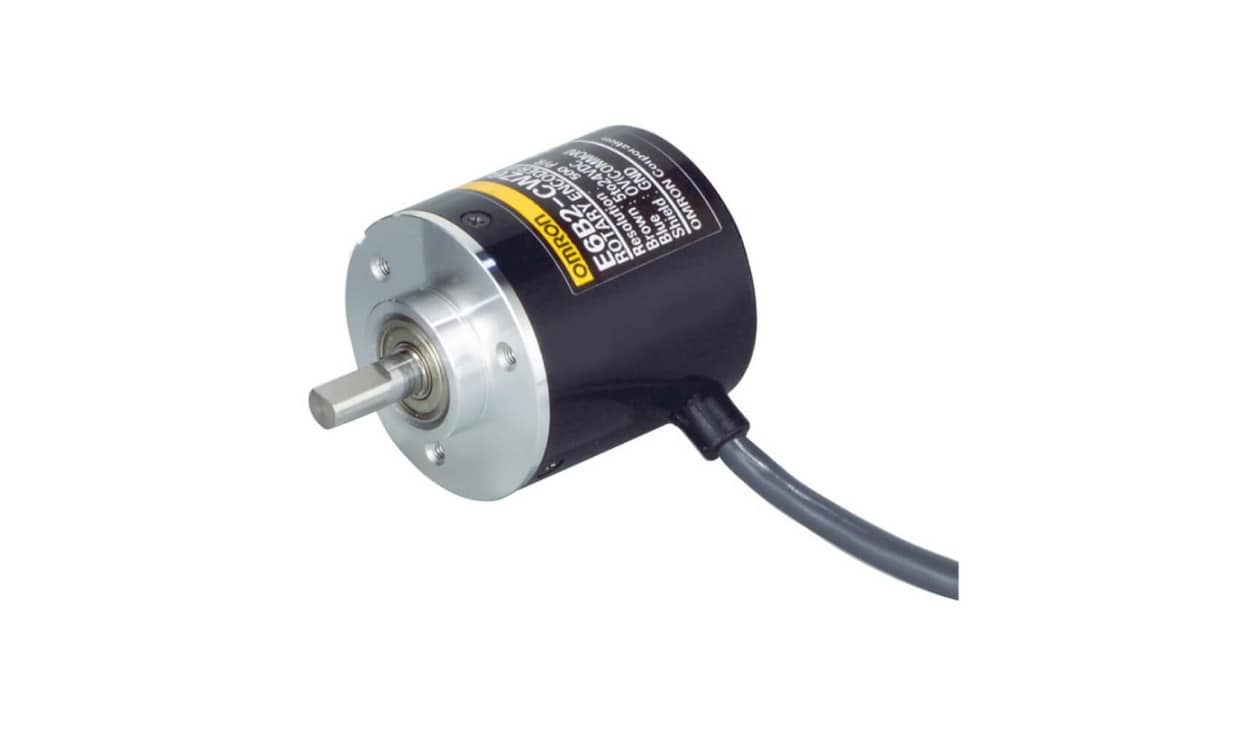

Omron E6B2-CWZ5B 360P/R 2M, E6B2-C Series Incremental Incremental Encoder, 360ppr ppr, PNP Open Collector Signal, Radial, Thrust Type, 6mm

Name: Omron E6B2-CWZ5B 360P/R 2M, E6B2-C Series Incremental Incremental Encoder, 360ppr ppr, PNP Open Collector Signal, Radial, Thrust Type, 6mm
Brand: OMRON
SKU: E6B2-CWZ5B 360P/R 2M
Availability: InStock

Part Number : E6B2-CWZ5B 360P/R 2M

Encoder, incremental, 360 ppr, 12 to 24 VDC, PNP output, 0.5 m cable

Availability: low stock

Detailed Description
Specifications
Features
Downloads

The Omron general purpose incremental rotary encoder with large shaft of 40 diameter has a wide operating voltage range from 5 to 24 VDC. A large load of 30 N in the radial direction and 20 N in the thrust direction are permitted. The load short-circuit and reversed connection protecting circuit assure high operation reliability.

Shock resistance strengthened by metal disk
Available with line driver output

Brand	Omron
Encoder Technology	Incremental
Series	E6B2-C
Pulses Per Revolution	360ppr
Maximum Revolutions	6000rpm
Output Signal Type	PNP Open Collector
Shaft Type	Radial, Thrust
Shaft Diameter	6mm
