OMRON E6B2-CWZ6C 360P/R 0.5M | Incremental Encoder | 360 ppr, NPN Open Collector, 6 mm Shaft

Name: OMRON E6B2-CWZ6C 360P/R 0.5M | Incremental Encoder | 360 ppr, NPN Open Collector, 6 mm Shaft
Brand: OMRON
SKU: E6B2-CWZ6C 360P/R 0.5M
Availability: InStock

Part Number : E6B2-CWZ6C 360P/R 0.5M

This E6B2-C series unit, the OMRON E6B2-CWZ6C 360P/R 0.5M, is an incremental encoder giving 360 ppr from an NPN open-collector output. Supply is 5 to 24 V with 80 mA current, and the 6 mm shaft is rated to 6000 rpm.

360 ppr resolution
NPN open-collector signal
5 to 24 V supply, 80 mA
6 mm shaft
IP50, 100 kHz switching frequency

Availability: low stock

Detailed Description
Specifications
Downloads

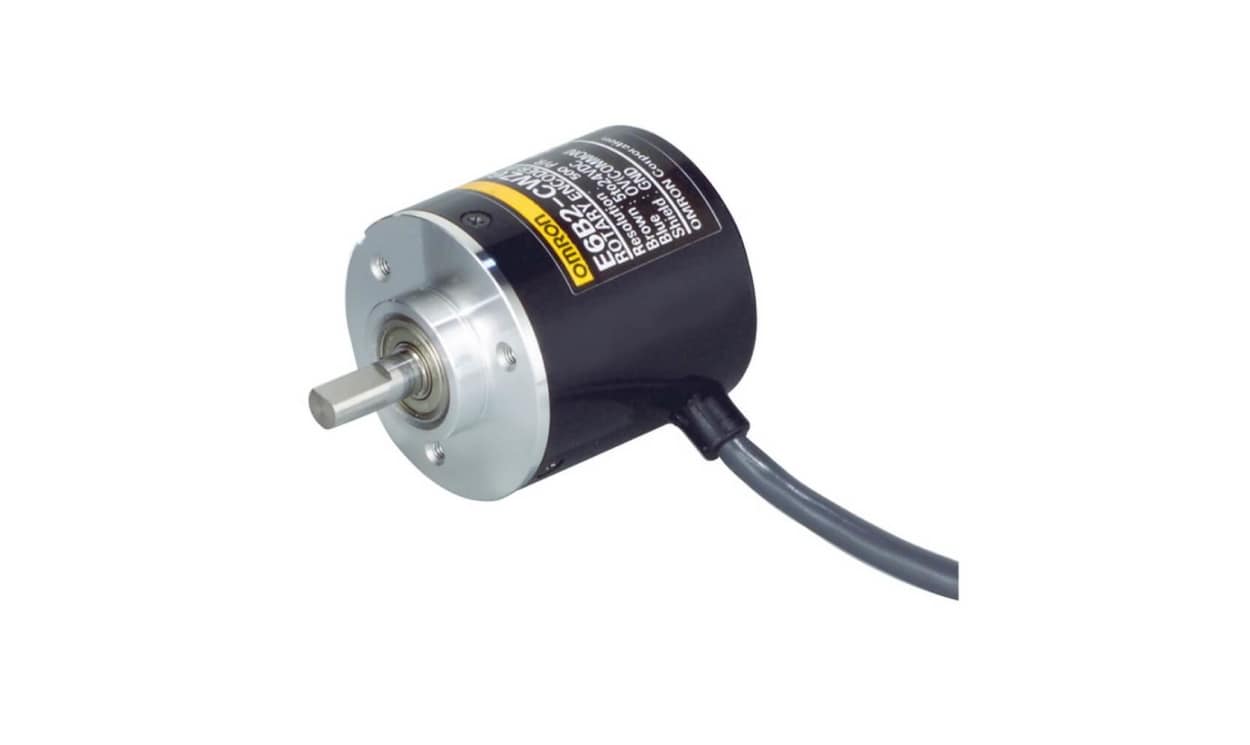

Omron E6B2-C Series Incremental Encoder, 360 Pulses Per Revolution, 6mm Shaft Diameter - E6B2-CWZ6C 360P/R 0.5M

This incremental encoder features a compact design with an external diameter of 40mm, making it ideal for applications requiring precise rotational measurements. It utilises incremental technology, offering a resolution of 360 pulses per revolution (PPR), and operates efficiently across a supply voltage range of 5V to 24V. Designed for reliability in various industrial settings, it incorporates a radial shaft type with a 6mm diameter shaft suitable for diverse applications.

Features & Benefits

• Provides 360 pulses per revolution to enhance measurement accuracy
• Capable of handling maximum revolutions of 6000 rpm for high-speed applications
• NPN open collector output enables straightforward integration with controllers
• IP50 rating protects against dust, ensuring durability in challenging environments
• Operates effectively within a temperature range of -10°C to +70°C for versatile use
• Current rating of 80mA supports stable performance across tasks

Applications

• Used for precision motion control in robotics and automation systems
• Utilised in conveyor systems for accurate speed measurement
• Applied in CNC machinery for enhanced position tracking
• Incorporated in packaging machines for rotation and count monitoring

What maximum speed can this encoder handle?

The encoder can manage maximum speeds of 6000 r/min, making it suitable for high RPM applications.

What is the type of output signal this encoder provides?

It features an NPN open collector output, making it compatible with various control systems.

How does the IP rating affect its usage?

The IP50 rating indicates protection against dust ingress, enhancing its reliability in industrial settings.

What temperature range can it operate within?

This device can function effectively in temperatures from -10°C to +70°C, suitable for diverse environments.

Brand	Omron
Encoder Technology	Incremental
Pulses Per Revolution	360
Series	E6B2-C
Maximum Revolutions	6000rpm
Output Signal Type	NPN Open Collector
Shaft Type	Radial, Thrust
Supply Voltage	5 → 24 V
Shaft Diameter	6mm
Resolution	360
Steps Per Revolution	360ppr
IP Rating	IP50
Minimum Operating Temperature	+70°C
Maximum Operating Temperature	-10°C
Switching Frequency	100 kHz
Current Rating	80 mA
