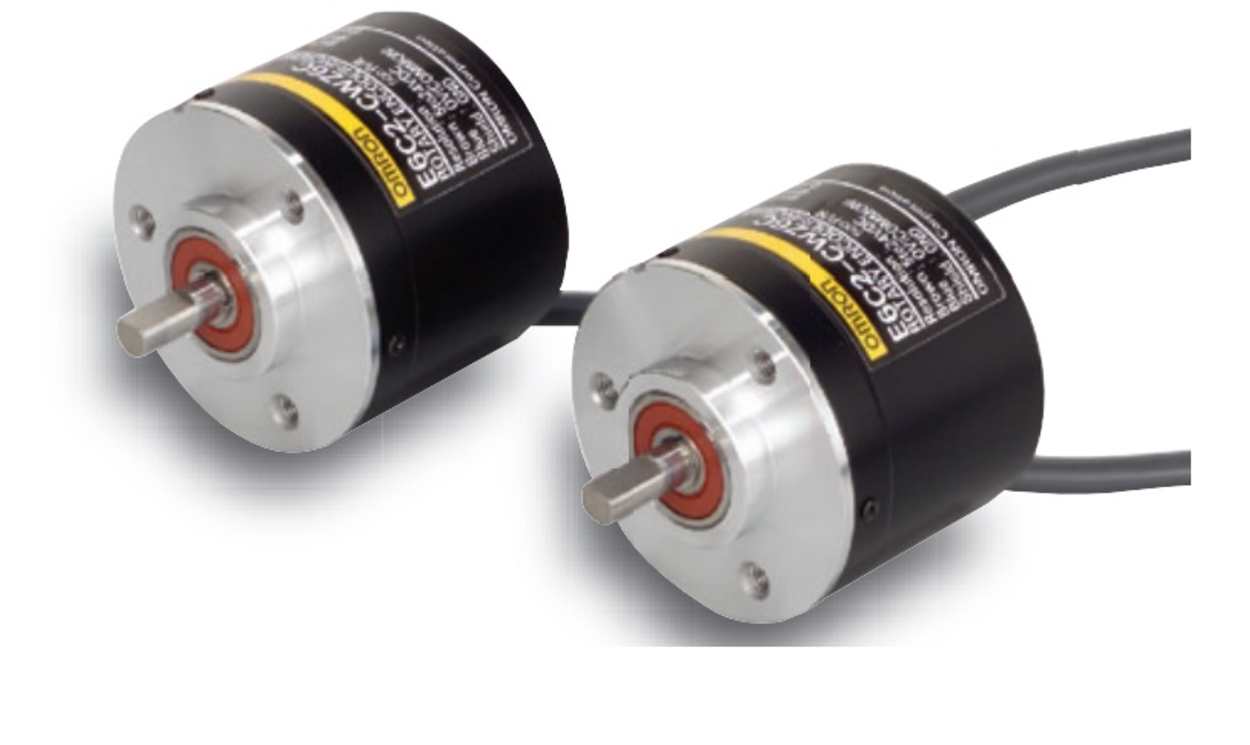

OMRON E6C2-CWZ6C 1000P/R 2M | Incremental Encoder | 1000 ppr, NPN Open Collector, 24 V DC

Name: OMRON E6C2-CWZ6C 1000P/R 2M | Incremental Encoder | 1000 ppr, NPN Open Collector, 24 V DC
Brand: OMRON
SKU: E6C2-CWZ6C 1000P/R 2M
Availability: InStock

Part Number : E6C2-CWZ6C 1000P/R 2M

The OMRON E6C2-CWZ6C 1000P/R 2M provides 1000 ppr via an NPN open-collector output. This incremental encoder is listed for a 24 V DC supply and up to 6000 rpm.

1000 ppr
NPN open collector
24 V DC supply
6000 rpm maximum

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron E6C2-CWZ6C 1000P/R 2M is a incremental rotary encoder, has a rated supply voltage of 12 to 24 VDC,has a PNP output, cable length is of 2 m.

IP64 Drip-proof Construction
Shaft Withstands Heavy Loads
Protective Circuit for Output Shorting

Brand	Omron
Encoder Technology	Incremental
Pulses Per Revolution	1000
Maximum Revolutions	6000rpm
Output Signal Type	NPN Open Collector
Shaft Type	Radial, Thrust
Supply Voltage	24 V dc
