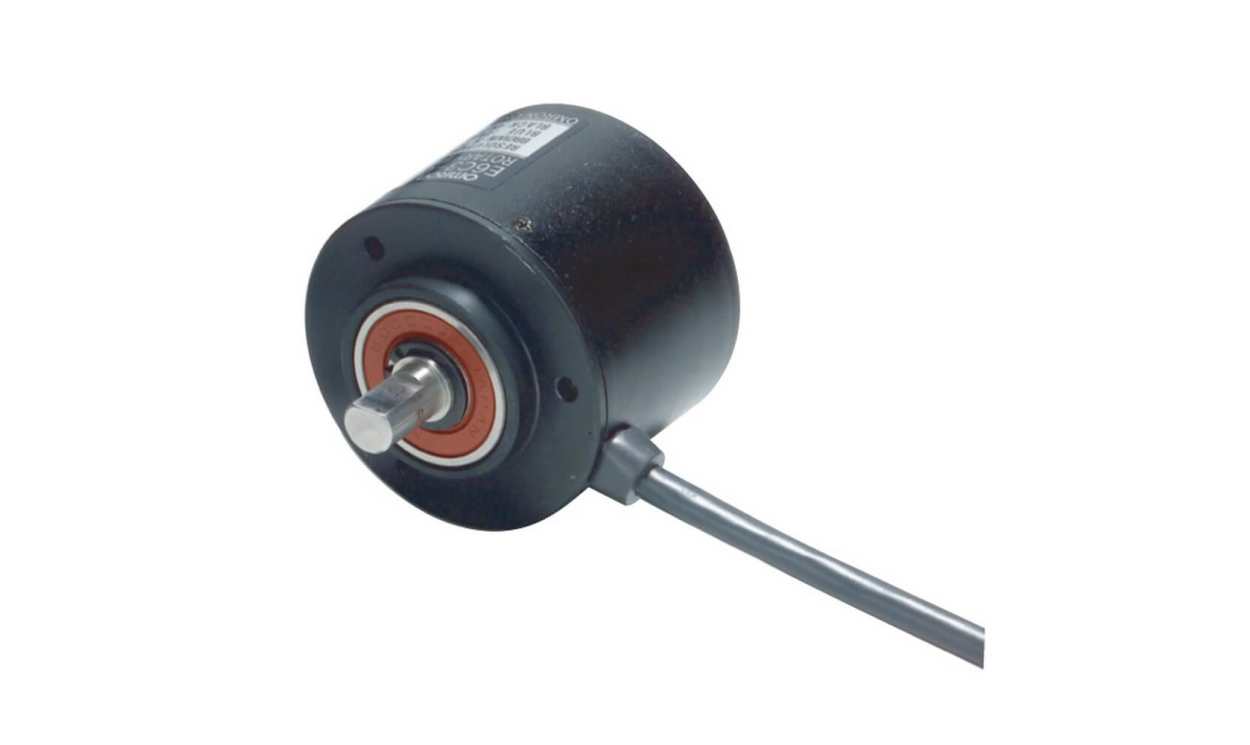

Omron E6C3-AG5B 360P/R 2M, E6C3-A Series Absolute Absolute Encoder, 360 ppr, PNP Open Collector Signal, Solid Type, 8mm Shaft

Name: Omron E6C3-AG5B 360P/R 2M, E6C3-A Series Absolute Absolute Encoder, 360 ppr, PNP Open Collector Signal, Solid Type, 8mm Shaft
Brand: OMRON
SKU: E6C3-AG5B 360P/R 2M
Availability: InStock

Part Number : E6C3-AG5B 360P/R 2M

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E6C3-A Series Absolute Encoder, 360 Pulses Per Revolution, 8mm Shaft Diameter - E6C3-AG5B 360P/R 2M

This absolute encoder is designed for precision measurement in various automation applications. The device features a solid shaft with an 8mm diameter and is compact, measuring 58mm in height and 50mm in width. With a supply voltage range of 12 to 24V DC, it operates effectively in diverse environments, offering a resolution of 360 pulses per revolution.

Features & Benefits

• High-resolution capability at 360 PPR ensures accurate position feedback
• Solid shaft design enhances durability and performance in demanding conditions
• PNP open collector output allows compatibility with various control systems
• IP65 rating protects against dust and water ingress for reliable operation
• Maximum rotational speed of 5000 RPM supports fast-moving applications
• SSI interface enables seamless integration with digital control systems

Applications

• Used with robotics for precise positioning and feedback
• Employed in conveyor systems for accurate motion control
• Integrated in CNC machines for reliable positioning data
• Utilised in material handling for efficient process automation

What is the significance of achieving 360 pulses per revolution?

Achieving 360 pulses per revolution enables finer resolution in position detection, which is crucial for tasks requiring high accuracy. This ensures that even minute adjustments can be measured and acted upon effectively.

How does the IP65 rating enhance the functionality of this encoder?

The IP65 rating signifies protection against dust and low-pressure water jets, allowing the encoder to operate in harsh environments without risk of damage, thus ensuring consistent performance across various applications.

What are the advantages of using a PNP open collector output?

The PNP open collector output is beneficial as it allows for easy interfacing with other components and systems. It provides a reliable low-side switch for driving loads and ensures compatibility with various electronic control devices.

What operational temperatures can this encoder handle?

This encoder functions effectively within a temperature range of -10 °C to +70 °C, making it suitable for a wide variety of industrial and operational environments, even under extreme conditions.

How does the SSI interface contribute to the encoder’s performance?

The SSI interface facilitates high-speed data transmission, enhancing communication efficiency between the encoder and control systems. This leads to faster processing of position data, essential for real-time applications in automation.

Omron Incremental Rotary Encoders

Brand	Omron
Encoder Technology	Absolute
Series	E6C3-A
Pulses Per Revolution	360
Maximum Revolutions	5000rpm
Output Signal Type	PNP Open Collector
Shaft Type	Solid
Shaft Diameter	8mm
Supply Voltage	12 → 24 V dc
Resolution	360 ppr
Steps Per Revolution	360ppr
IP Rating	IP65
Overall Height	58 mm
Interface	SSI-Gray
Overall Width	50 mm
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+70°C
Current Rating	70 mA
Switching Frequency	20 kHz
