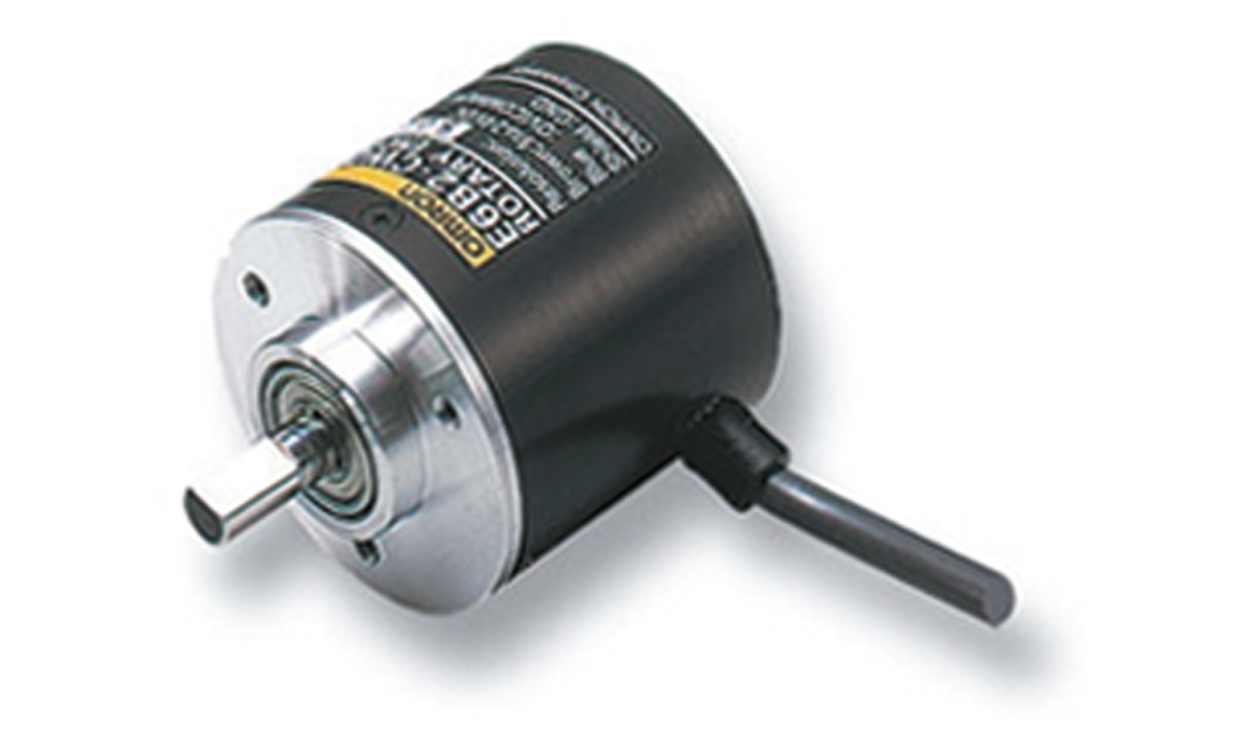

Omron E6F-AB3C-C 360 5M, E6F-A Series Absolute Absolute Encoder, 360 ppr, NPN Open Collector Signal, Solid Type, 10mm Shaft

Name: Omron E6F-AB3C-C 360 5M, E6F-A Series Absolute Absolute Encoder, 360 ppr, NPN Open Collector Signal, Solid Type, 10mm Shaft
Brand: OMRON
SKU: E6F-AB3C-C 360 5M
Availability: InStock

Part Number : E6F-AB3C-C 360 5M

Availability: low stock

Detailed Description
Specifications
Downloads

General Purpose Incremental Encoders

Incremental Encoders output a pulse string according to the rotational displacement of an axis. The number of rotations can be detected by counting the number of pulses. Improved reliability with reverse connection and load shortcircuit
protection..

Moment of inertia: 1´10−6 kg·m²max.; 3 ´ 10−7 kg·m² max. at 600 P/R max
External diameter E6A2: 25 mm
External diameter E6B2: 40 mm
External diameter E6C2: 50 mm
External diameter E6C3: 50 mm
External diameter E6FA: 60 mm

Omron Incremental Rotary Encoders

Brand	Omron
Encoder Technology	Absolute
Pulses Per Revolution	360
Series	E6F-A
Maximum Revolutions	5000rpm
Output Signal Type	NPN Open Collector
Shaft Type	Solid
Shaft Diameter	10mm
Supply Voltage	5 → 12 V dc
Resolution	10 Bit
IP Rating	IP65
Overall Height	85mm
Interface	BCD
Overall Width	60mm
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+70°C
Switching Frequency	10 kHz
