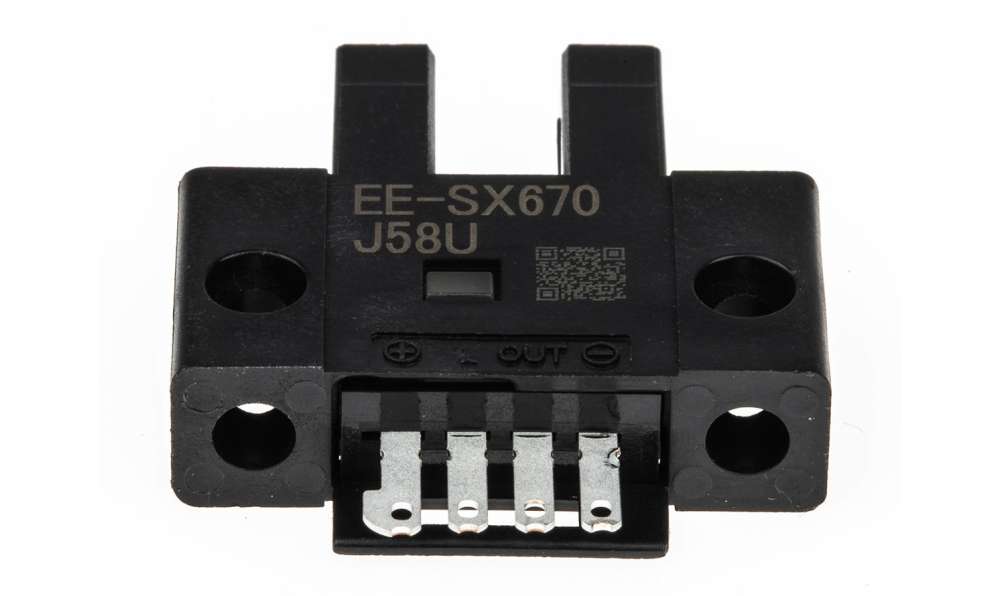

OMRON EE-SX670 | Slot-Type Photo Micro Sensor | 5 mm, NPN, Connector
The OMRON EE-SX670 is a slot-type photo micro sensor with a detection range of 5 mm and an NPN output. It is equipped with a connector, has an infrared light source and offers IP50 ingress protection. OMRON's description specifies a standard-shape slot design with selectable light-on / dark-on operation.
- Supply voltage up to 24 V DC
- Maximum current 100 mA
- Response time 0.17 ms
- Operating temperature -25 °C to +55 °C
- Housing: PBT
- Standards: CE
- Detailed Description
- Specifications
- Features
- Downloads




Omron Photoelectric Sensor, PBT Housing, IP50 - EE-SX670
Features & Benefits
• IP50 rating for protection against dust and debris
• NPN output type for compatibility with industrial systems
• Fork sensor style for versatile installation options
Applications
• Ideal for automated packaging systems
• Suitable for conveyor belt monitoring
• Can be used for robotics and automation systems
Can it withstand harsh industrial environments?
Will it work with my current automation system?
Is it easy to install and maintain?
| Brand | Omron |
| Series | EE-SX67 |
| Detection Type | Through Beam |
| Detection Range | 5 mm (0.197 in) |
| Sensor Style | Fork |
| Output Type | NPN |
| Electrical Connection | Connector |
| Switching Mode | Light / Dark switching |
| Light Source | Infrared |
| Response Time | 0.17 ms |
| Maximum DC Voltage | 24V |
| IP Rating | IP50 |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Standards Met | CE |
Photo micro sensor, slot type, standard shape, L-ON/D-ON selectable, NPN, connector
