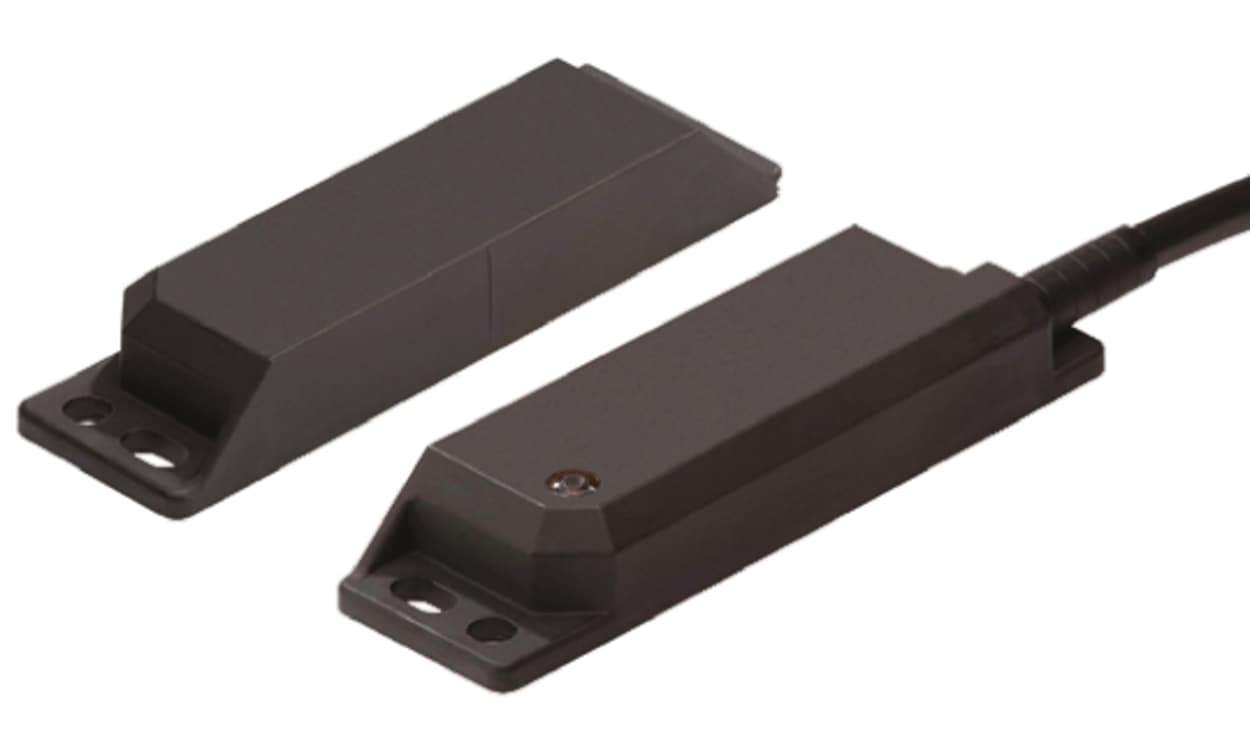

OMRON F3S-TGR-NLPR-21-10 | Magnetic Non-Contact Safety Switch | NO/2NC, 10 m Cable, Plastic Housing
The OMRON F3S-TGR-NLPR-21-10 is a magnetic non-contact safety switch with a switching distance of 22 mm, a 10 m cable and NO/2NC contacts, in a plastic housing. It has a 24 V dc supply, a magnetic actuator (included), 2 approach directions, IP67 protection and Safety Category 4.
- Switching distance: 22 mm
- Safety contacts: NO/2NC
- Connection: 10 m cable
- Housing: plastic
- Protection rating: IP67
- Safety category: 4
- Detailed Description
- Specifications
- Downloads
F3S-TGR Non Contact Safety Switch
Excellent coverage of mechanical tolerances
Can operate behind stainless steel fittings
Screw hole covers
F3S-TGR-N_C Switch
LED for easy diagnosis
Electronic output (potential-free optocoupler output)
IP67 protection
F3S-TGR-N_R Switch
Reed contacts
IP67 protection
Note
Actuator is included.
For suitable controller see the G9SA or G9SB from Omron, or the NE1A DeviceNet system.
Standards
| Brand | Omron |
| Series | F3S-TGR-N_R |
| Connection Type | 10m Cable |
| Supply Voltage | 24V dc |
| Housing Material | Plastic |
| Sensor Principle | Magnetic |
| Safety Contacts | NO/2NC |
| IP Rating | IP67 |
| Actuator Type | Magnetic |
| Actuator Included | Yes |
| Switching Distance | 22 mm (0.866 in) |
| Width | 25 mm (0.984 in) |
| Length | 88 mm (3.46 in) |
| Safety Category | 4 |
| Depth | 13 mm (0.512 in) |
| Number of Approach Directions | 2 |
