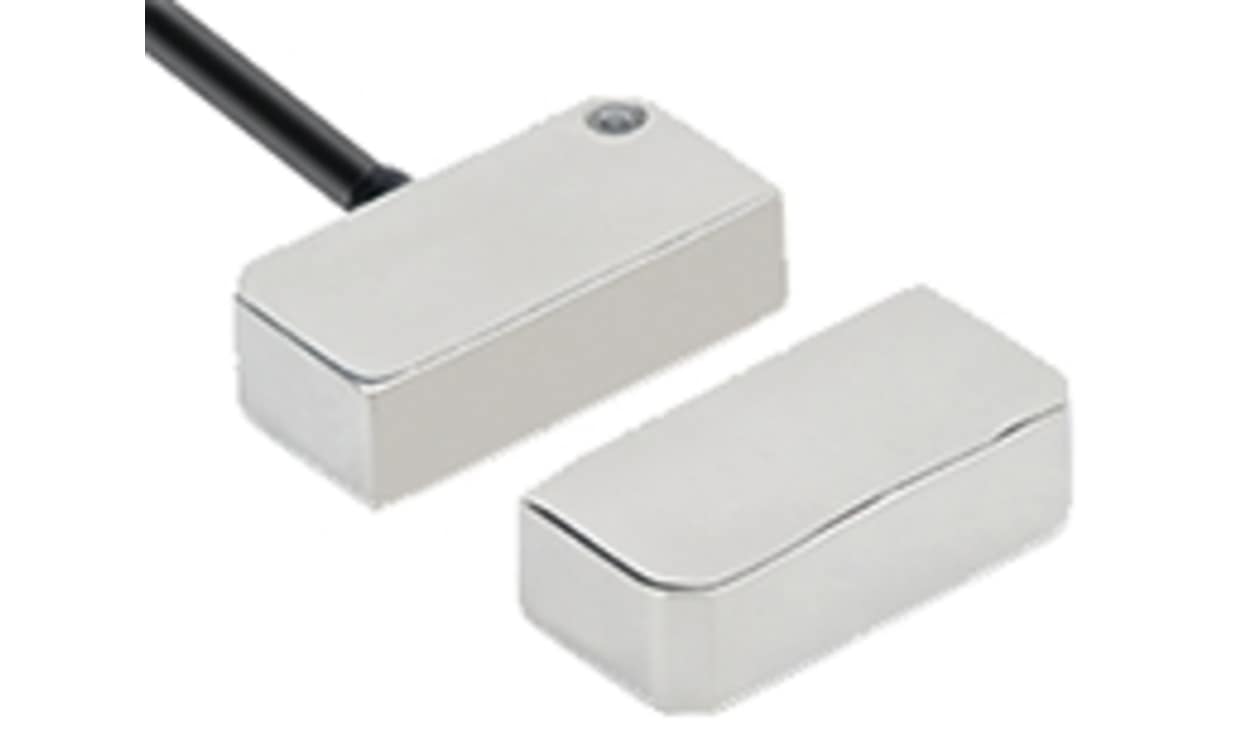

OMRON F3S-TGR-NSFR-21-M1J8 | Magnetic Non-Contact Safety Switch | NO/2NC, M12 Connector
Offering a switching distance of 10 mm, the OMRON F3S-TGR-NSFR-21-M1J8 magnetic non-contact safety switch uses a stainless steel housing and an M12 connector plus NO/2NC contacts. This variant features a 24 V dc supply, a magnetic actuator (included), 6 approach directions, IP67 protection and Safety Category 4.
- Switching distance: 10 mm
- Safety contacts: NO/2NC (auxiliary NO)
- Connection: M12 connector
- Housing: stainless steel
- Protection rating: IP67
- Safety category: 4
- Detailed Description
- Specifications
- Downloads
F3S-TGR Non Contact Safety Switch
Excellent coverage of mechanical tolerances
Can operate behind stainless steel fittings
Screw hole covers
F3S-TGR-N_C Switch
LED for easy diagnosis
Electronic output (potential-free optocoupler output)
IP67 protection
F3S-TGR-N_R Switch
Reed contacts
IP67 protection
Note
Actuator is included.
For suitable controller see the G9SA or G9SB from Omron, or the NE1A DeviceNet system.
Standards
| Brand | Omron |
| Series | F3S-TGR-N_R |
| Connection Type | M12 |
| Supply Voltage | 24V dc |
| Housing Material | Stainless Steel |
| Sensor Principle | Magnetic |
| Safety Contacts | NO/2NC |
| IP Rating | IP67 |
| Actuator Type | Magnetic |
| Actuator Included | Yes |
| Switching Distance | 10 mm (0.394 in) |
| Width | 25.5 mm (1.00 in) |
| Length | 50 mm (1.97 in) |
| Safety Category | 4 |
| Depth | 13 mm (0.512 in) |
| Number of Approach Directions | 6 |
| Auxiliary Contacts | NO |
