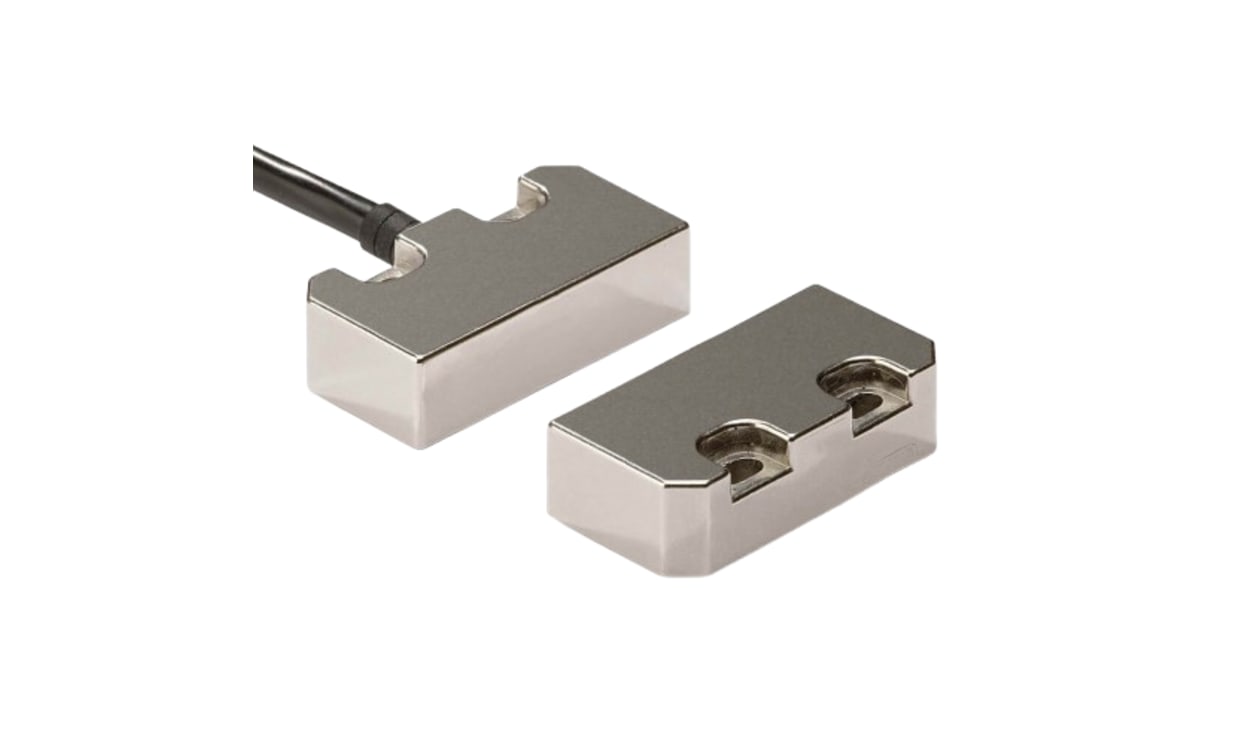

Omron F3S-TGR-NSMR-21-M1J8, F3S-TGR-N_R Series Magnetic Non-Contact Safety Switch, 24V dc, Stainless Steel Housing, NO/2NC, M12

Part Number : F3S-TGR-NSMR-21-M1J8

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron F3S-TGR-N_R Series Non-Contact Safety Switch, 50mm Length, IP67 - F3S-TGR-NSMR-21-M1J8

This non-contact safety switch is engineered for high reliability and safety within industrial settings. It utilises a magnetic actuator to ensure operational safety without mechanical contact. With an IP67 rating, it is suitable for environments subject to dust and moisture, providing assurance for various applications. The robust stainless steel housing enhances durability, making it appropriate for a range of automation tasks.

Features & Benefits

• Operates with a supply voltage of 24V DC for versatile applications
• Compact dimensions enable easy installation in confined spaces
• Certified as Safety Category 4 to satisfy strict safety standards

Applications

• Used in machinery safeguarding to prevent unintended operation
• Implemented in automated systems for process control
• Suitable for robotic work cells requiring non-contact sensing

What installation requirements should be considered for this device?

Ensure precise alignment of the actuator and switch, as it relies on a magnetic field for operation

consider the environmental conditions during installation.

How can I maintain the safety switch?

Regularly inspect the housing for any signs of damage or wear, clean the surface to prevent dust accumulation, and verify that the actuator is functioning correctly.

What is the maximum switching distance for the actuator?

It has a switching distance of 22mm, making it effective for applications with slight positional adjustments in the actuator.

Can it be used in outdoor settings?

While it has an IP67 rating, it is advisable to ensure that the electrical connexions are protected from direct exposure to moisture and extreme temperatures when used outdoors.

Brand	Omron
Supply Voltage	24V dc
Safety Contacts	NO/2NC
Housing Material	Stainless Steel
Connection Type	M12
Switch Type	Non Contact
Actuator Type	Magnetic
Safety Category	4
Sensor Principle	Magnetic
Actuator Included	Yes
Switching Distance	22 mm
Series	F3S-TGR-N_R
IP Rating	IP67
Width	25.5mm
Length	50mm
Number of Approach Directions	2
Depth	13mm
