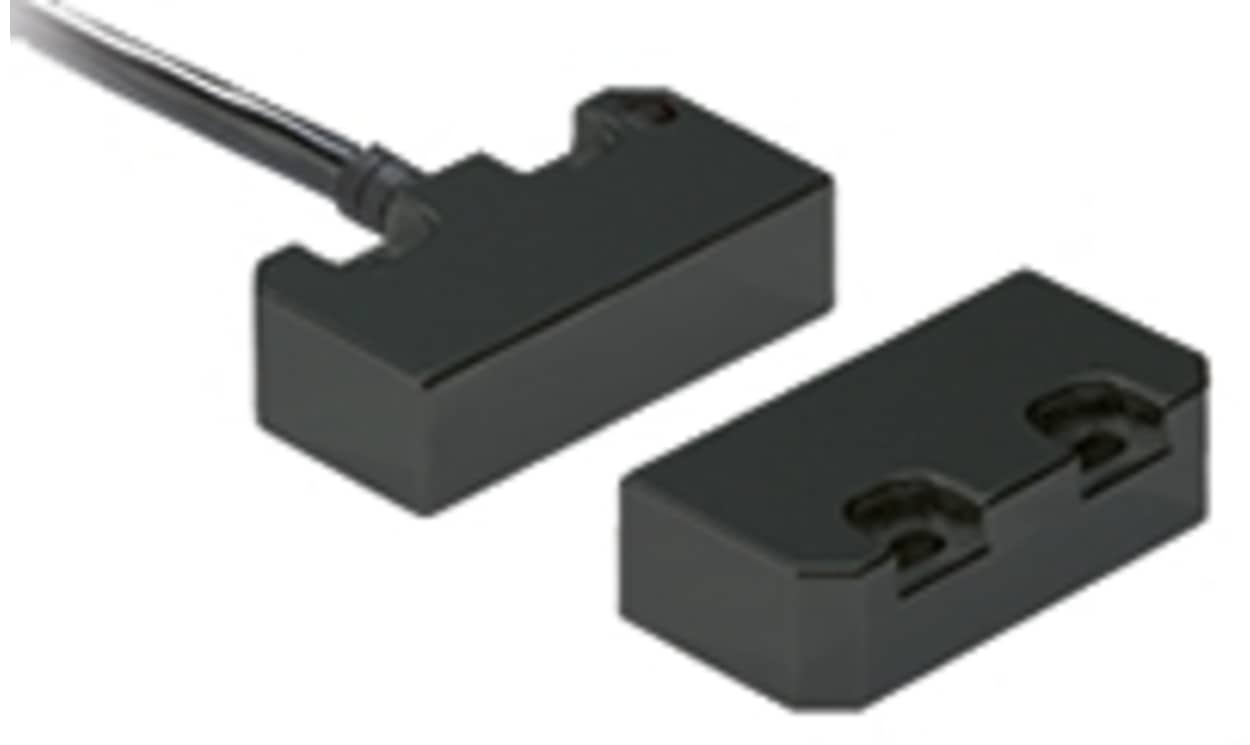

Name: Omron F3S-TGR-NSPU-21-10, F3S-TGR-N_U Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/2NC, 10m Cable
Brand: OMRON
SKU: F3S-TGR-NSPU-21-10
Availability: OutOfStock

Omron F3S-TGR-NSPU-21-10, F3S-TGR-N_U Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/2NC, 10m Cable

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron F3S-TGR-NSPU-21-10, F3S-TGR-N_U Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/2NC, 10m Cable

Part Number : F3S-TGR-NSPU-21-10

Availability: Sold out

Detailed Description
Specifications
Downloads

F3S-TGR Tamper Resistant Non Contact Switch

The Omron F3S-TGR-N series of non-contact switches use a design based on RFID technology. They have unique coding, only one actuator fits to the code of the sensor, which makes them ideal for applications that require high tamper resistance.

Connect up to 20 switches in series
LED for easy diagnosis
Suitable for high pressure cleaning, CIP and SIP processes
Flying lead IP69K, M12 connector IP67
Electronic output (potential-free optocoupler output)
UL approved polyester
Conforms to safety categories up to PLe acc. EN ISO 13849-1

Note

For suitable controller see the G9SA or G9SB from Omron, or the NE1A DeviceNet system.

Standards

EN standards certified by TÜV Rheinland, EN 954-1, EN ISO 13849-1, EN 60204-1, EN/IEC 60947-5-3, UL 508, CSA C22.2, BS 5304, EN 1088-1 conformance.

Supplied with

Actuator.

Brand	Omron
Supply Voltage	24V dc
Safety Contacts	NO/2NC
Housing Material	Plastic
Connection Type	10m Cable
Actuator Type	Unique Coded
Auxiliary Contacts	NO
Safety Category	4
Sensor Principle	Magnetic
Actuator Included	Yes
Series	F3S-TGR-N_U
Switching Distance	10 mm
IP Rating	IP69K
Supply Current	30mA
Width	25mm
Depth	13mm
Length	88mm
Number of Approach Directions	20

Omron F3S-TGR-NSPU-21-10, F3S-TGR-N_U Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/2NC, 10m Cable

DOWNLOAD CATALOG

F3S-TGR-NSPU-21-10 Omron Machine Safety 0900766b814c686b
