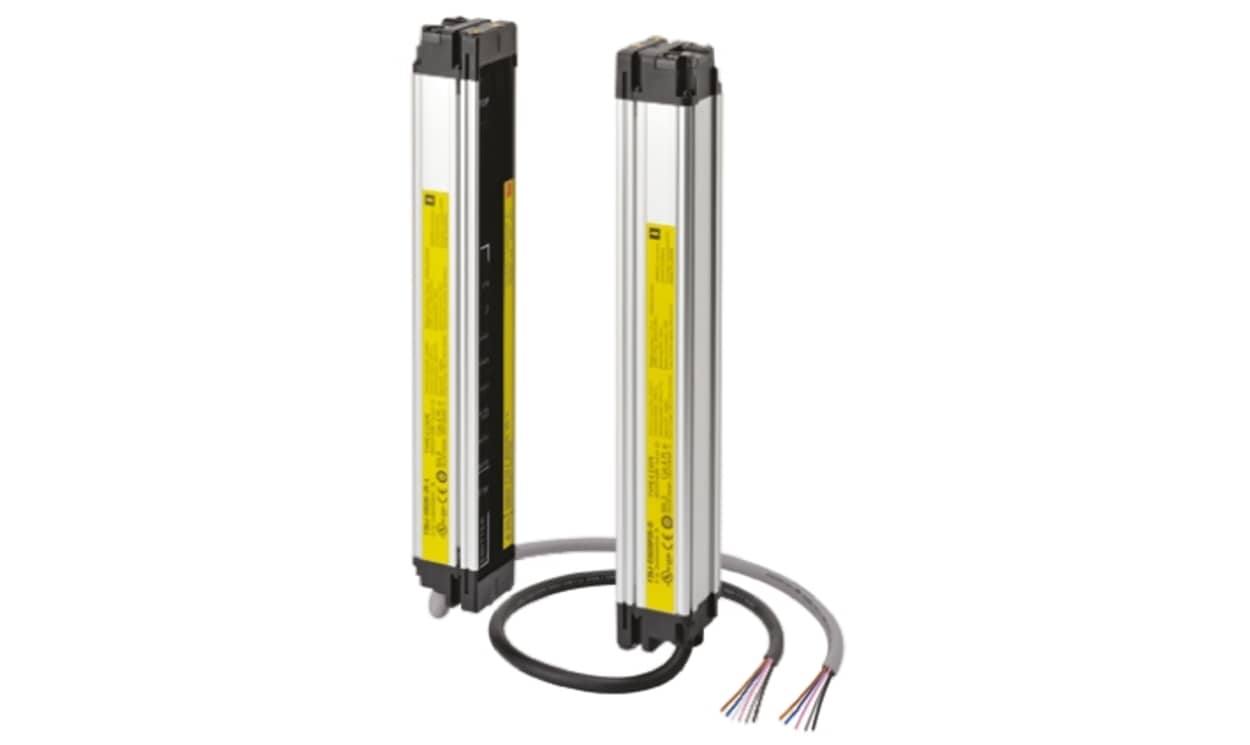

Omron F3SJ-E1025P25, F3SJ Series Light Curtain, Sender & Receiver, 50 Beam(s), 20mm Resolution

Name: Omron F3SJ-E1025P25, F3SJ Series Light Curtain, Sender & Receiver, 50 Beam(s), 20mm Resolution
Brand: OMRON
SKU: F3SJ-E1025P25
Availability: OutOfStock

Part Number : F3SJ-E1025P25

Availability: Sold out

Detailed Description
Specifications

F3SJ-E Safety Light Curtain & Accessories

Fast and easy installation
Easy to view diagnostics
Resolution: 25 mm (1.01 in.)
Range: 7 m (23 ft.)
Protected heights: 185 to 1105 mm (7.28 to 43.50 in.)
Very compact size: 30 x 30 mm (1.18 x 1.18 in.)
Cross talk prevention
A range of accessories are available

The F3SJ-E light curtain is ideal for straight forward on/off detection applications as it simply stops the machine upon detection of personnel. The light curtains reduced wiring, quick mount brackets and easy to view alignment beams mean fast and easy installation. Additionally, one fixed response time means the safety distance is now easier to calculate. The F3SJ-E is made with an aluminium case, PMMA resin (acrylic) optical cover and ABS resin PBT cap.

Standards

IEC 61496-1, EN 61496-1 UL 61496-1, Type 4 ESPE (Electro-Sensitive Protective Equipment)
IEC 61496-2, CLC/TS 61496-2, UL 61496-2, Type 4 AOPD (Active Opto-electronic Protective Devices)
IEC 61508-1 to -3, EN 61508-1 to -3 SIL3
IEC 13849-1: 2006, EN ISO 13849-1: 2008 (PLe, Cat.4)
UL 508, UL 1998, CAN/CSA C22.2 No.14, CAN/CSA C22.2 No.0.8

Approvals

TUV, cULus, CE marked.

Light Curtain

Brand	Omron
Series	F3SJ
Beam Resolution	20mm
Component Type	Receiver, Sender
Safety Type	4
SIL IEC 61508	3
PL EN ISO 13849-1	e
Number of Beams	50
Protective Height	1025mm
Minimum Scanning Distance	0.2m
Maximum Scanning Distance	7m
Maximum Response Time	15 (On to Off) ms, 70 (Off to On) ms
Length	30mm
Height	1094mm
Supply Voltage	24 V dc
Application	Hand
Width	30mm
Dimensions	30 x 30 x 1094 mm
Terminal Type	M12 Connector
Features	Muting
