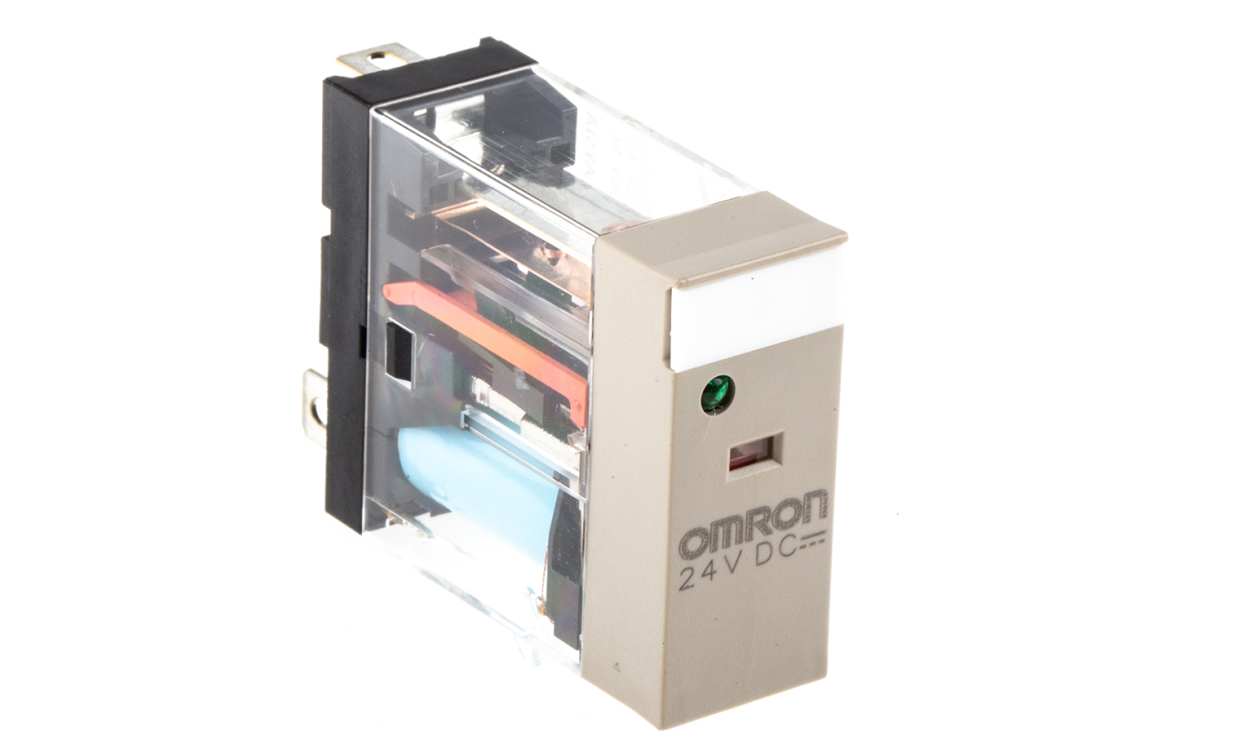

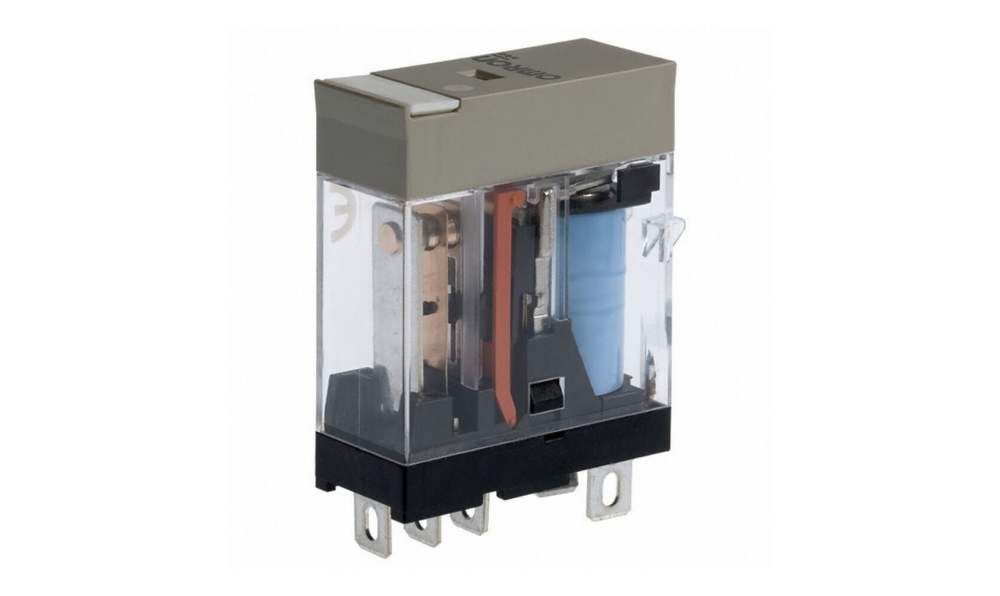

Omron G2R-1-SN 24VDC (S), Plug In Power Relay, 24V dc Coil, 10A Switching Current, SPDT
Part Number : G2R-1-SN 24VDC (S)
Relay, plug-in, 5-pin, SPDT, 10 A, mech & LED indicators, label facility
For pricing, please contact our experts.
G2RS Series Non-Latching Relay
Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.
Features & Benefits
Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately
Product Application Information
Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances
Lifts and Elevators
Gas and electric boilers
Domestic Appliances
Note
Can be used as a replacement for earlier version of G2R-SN series, check height clearance.
Approvals
UL, CSA, VDE
OMRON Power Relay, 10A Maximum Switching Current, LED Indicator - G2R-1 Series - G2R-1-SN 24DC(S)
Want to keep your electrical circuits running smoothly? Pick up this power relay from OMRON. When mounted into a push-in socket (such as 111-3066), it saves time and reduces your wiring needs by up to 60%. Silver alloy contacts stand their ground against corrosion and impact, so you can rest assured of long-lasting use. LED and mechanical operation indicators display its status, making troubleshooting a walk in the park. You can use this versatile relay in equipment like vending machines and packaging systems.
Features & Benefits
• Insulation resistance of 1000MΩ, so it's finger-safe and you're protected from electric shocks
• Cadmium-free and lead-free material so it won't release toxic fumes
• Plug-in termination type for easy and direct installation without the need for complex tools
• Safe to use in hazardous conditions, thanks to an operating temperature range between -40°C and +70°C
• Cadmium-free and lead-free material so it won't release toxic fumes
• Plug-in termination type for easy and direct installation without the need for complex tools
• Safe to use in hazardous conditions, thanks to an operating temperature range between -40°C and +70°C
Applications
• Pharmaceutical industry
• Oil refineries
• Industrial automation
• Oil refineries
• Industrial automation
What's a non-latching relay?
A non-latching relay, like this device, reverts to its initial resting position when power is turned off. This makes it a reliable choice for machine functions with short time delays.
Approvals
VDE; TUV; UL; CSA; SEMKO; IMQ
