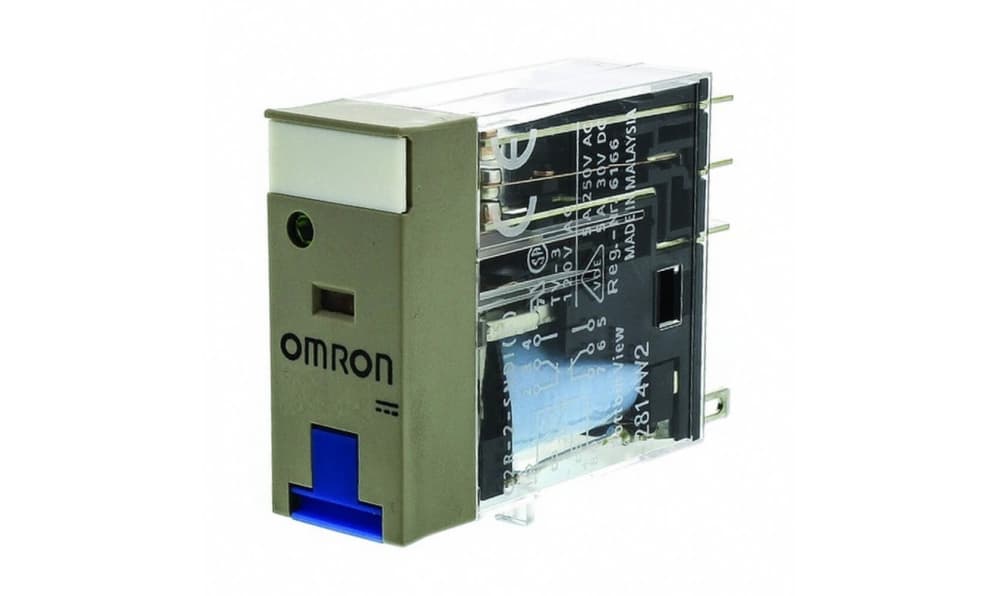

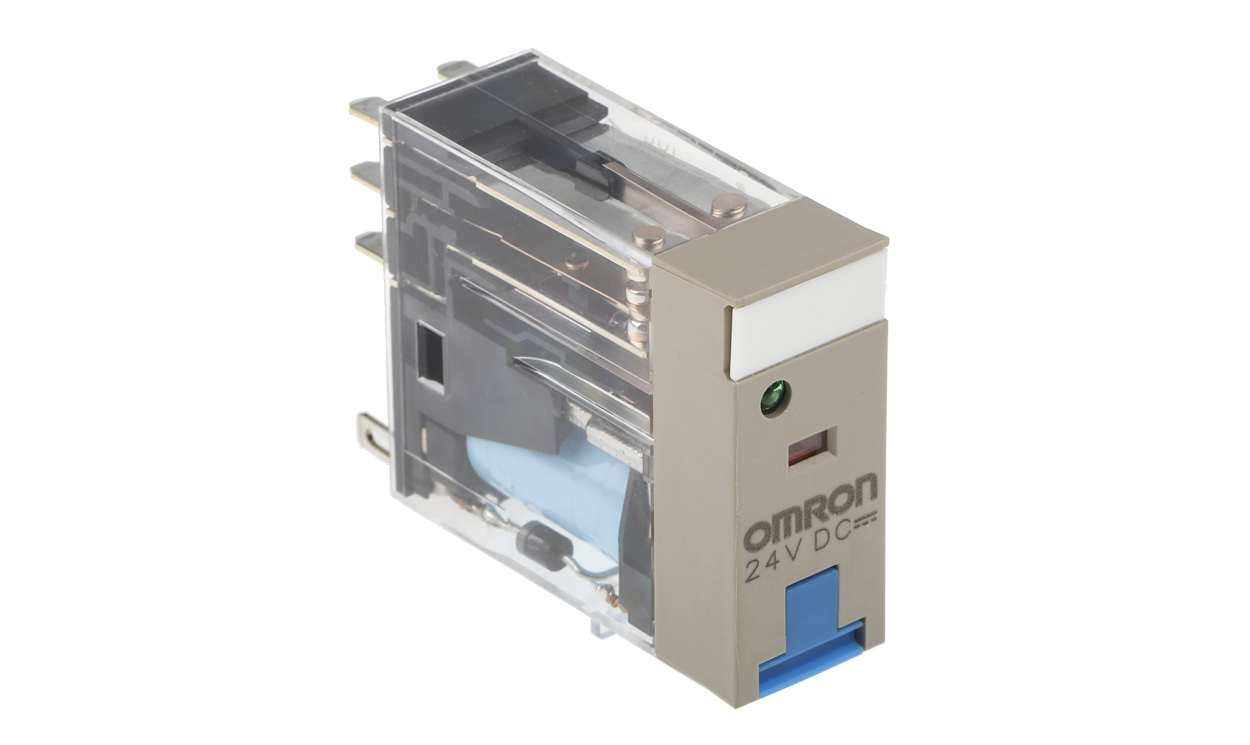

Omron G2R-2-SNDI 24VDC (S), Plug In Power Relay, 24V dc Coil, 5A Switching Current, DPDT

Name: Omron G2R-2-SNDI 24VDC (S), Plug In Power Relay, 24V dc Coil, 5A Switching Current, DPDT
Brand: OMRON
SKU: G2R-2-SNDI 24VDC (S)
Availability: OutOfStock

Part Number : G2R-2-SNDI 24VDC (S)

Relay, plug-in, 8-pin, DPDT, 5 A, mech & LED indicators, coil suppressor, lockable test button, label facility

Availability: Sold out

Detailed Description
Specifications
Features

OMRON Power Relay, 29 (L) x 41.7 (W) x 13mm (D), PCB Pin Terminal Type - G2R Series - G2R-2-SNDI 24DC(S)

Want a speedy way to bring your electrical equipment to life? Trust this power relay from OMRON to get the job done. When the coil inside is energised, it opens or closes a connected circuit. As a general-purpose component, this unit is ideal for booting up lighting, HVAC and motor systems in a jiffy. With its DPDT configuration, it makes quick work out of controlling two circuits at once. Thanks to its high operational speed of 18,000 cycles per hour and long lifespan of at least 20 million operations, you can count on this hardy product to deliver over the long haul.

Features & Benefits

• Performs reliably in extreme temperatures between -40°C to +70°C
• Light weight of 20g won't strain your system
• Low 0.53W power consumption for energy-efficient operation
• Plug-in mounting makes installation speedy

Applications

• Industrial process control
• Aerospace engineering
• Power utilities
• Manufacturing industry

What accessories can I use with this relay?

This relay plugs into a Push-in Plus socket (111-3067) to reduce wiring work by up to 60% and make connections simple. You can expand its capabilities by pairing it with a 5-pin relay socket (827-6781) and a PCB terminal block.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	5A
Number of Poles	2
Series	G2R
Latching	No
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	30V dc
Maximum Switching Current AC	5 A
Maximum Switching Current DC	5 A
Length	29mm
Coil Resistance	1113Ω
Coil Power	530mW
Contact Material	Silver Alloy
Isolation Coil To Contact	5kV
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-40°C

Relay, plug-in, 8-pin, DPDT, 5 A, mech & LED indicators, coil suppressor, lockable test button, label facility
