Omron G3RV-SR500-D AC230, G3RV-SR Series Solid State Interface Relay, 230 V ac Control, 3 A Load, DIN Rail Mount

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G3RV-SR500-D AC230, G3RV-SR Series Solid State Interface Relay, 230 V ac Control, 3 A Load, DIN Rail Mount

Part Number : G3RV-SR500-D AC230

Availability: Sold out

Detailed Description
Specifications
Downloads

G3RV-SR Slim I/O Solid State Relay

Omron G3RV-SR slim I/O solid state relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. The G3RV-SR relays allow installation with either top or bottom facing up for a flexible panel design. This flexible design allows efficient wiring inside panels. Push-In Plus terminal blocks are used to save wiring work in comparison with conventional screw terminals.

High frequency
High-speed opening and closing
Switching capacity up to 3 A (DC), and 2 A (AC).
LED operating status

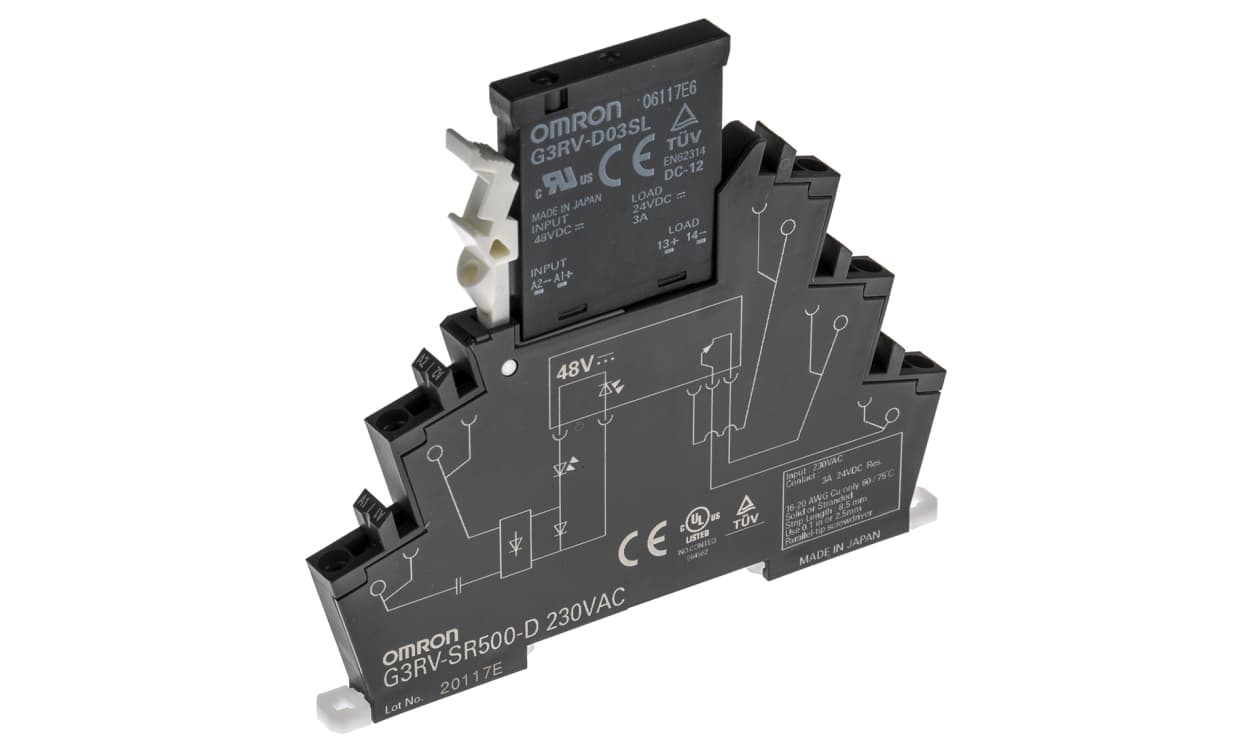

G3RV-SR500-D AC230 – I/O Low Profile SSR - Solid State Relay 6.2 mm Wide.

When 1113012 is no longer for sale, please see RS article 2711878 for the updated version in the new range of relays from Omron.
This I/O SSR-Solid state relay has a lower profile up to 25% of other standard SSR allowing further downsizing of the control panel. An optimal slim design relay that includes high frequency and high speed opening and closing of the SSR –solid state relay.

Features and Benefits G3RV-SR500-D AC230 I/O Slim SSR – Solid State Relay.

• Push-In Plus terminal.
• Release lever for easy relay locking and release.
• 60% Reduced wiring time.
• DC Applicable output load.
• Rated input voltage 230 V ac.
• Slim compact design.
• DC output – MOS FET.
• High frequency.
• High speed opening and closing.
• Easy wiring.

SSR – Solid State Relay Input Rating at ambient 25°C.

• Rated current AC – 7.5 mA 50 Hz, 8.8 mA 60 Hz.
• Must operate voltage 207 V max.
• Must release voltage 1 V min.
• Input voltage ±10% of rated voltage.

SSR – Solid State Relay Output.

• Rated load voltage 5 to 24 V dc.
• Load voltage range 3 to 26.4 V dc.
• Load current 100 μA to 3 A at an ambient 25°C.
• Inrush current resistance 30 A, 60 hZ, 1 cycle.
• Applicable load capacity 72 W, output voltage 34 V dc.

Additional Features of G3RV-SR500-D AC230 SSR – Solid State Relay.

• Operate time 6 ms max.
• Release time 60 ms max.
• Output ON resistance 0.3 Ω max at 24 v dc.
• Leaked current 10 μA max at 24 V dc.
• Vibration resistance – malfunction 10 to 55 to 10 Hz double amplitude.
• Shock resistance 300 m/s².
• Ambient operating temperature -30°C to +55°C.
• Relay weight 38 g.
• IP 20
• Load category DC-12.
• Rated insulation voltage 240 V.

Suitable SSR – Solid State DIN Rails.

• Part number PFP-100N – 1 m DIN relay, Stock number 8278403.
• Part number PFP-50N – 0.5 m DIN relay, Stock number 8278400.

Suitable End Plate for the SSR –Solid State Relay.

• Part number PFP-M, stock number 8278419.

Suitable Spacer Plate for the SSR- Solid State Relay.

• Part number PFP-S, Stock number 8278412.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.

Standards

UL 508, E64562. CE.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Brand	Omron
Maximum Control Voltage	230 V ac
Maximum Load Current	3 A
Mounting Type	DIN Rail
Maximum Load Voltage	26.4 V dc
Control Voltage Range	Maximum of 230 V ac
Switching Type	AC/DC
Contact Configuration	SPST
Load Voltage Range	3 → 26.4V dc
Minimum Load Voltage	3 V dc
Terminal Type	Push In
Number of Poles	1
Length	6.2mm
Height	90mm
Minimum Load Current	100 μA
Output Device	MOSFET
Series	G3RV-SR
Depth	78mm
Dimensions	6.2 x 78 x 90mm
Off State Leakage Current	10 μA
