Omron G3RV-ST700-D 12VDC, G3RV-ST Series Solid State Interface Relay, 12 Vdc Control, 3 A Load, DIN Rail Mount

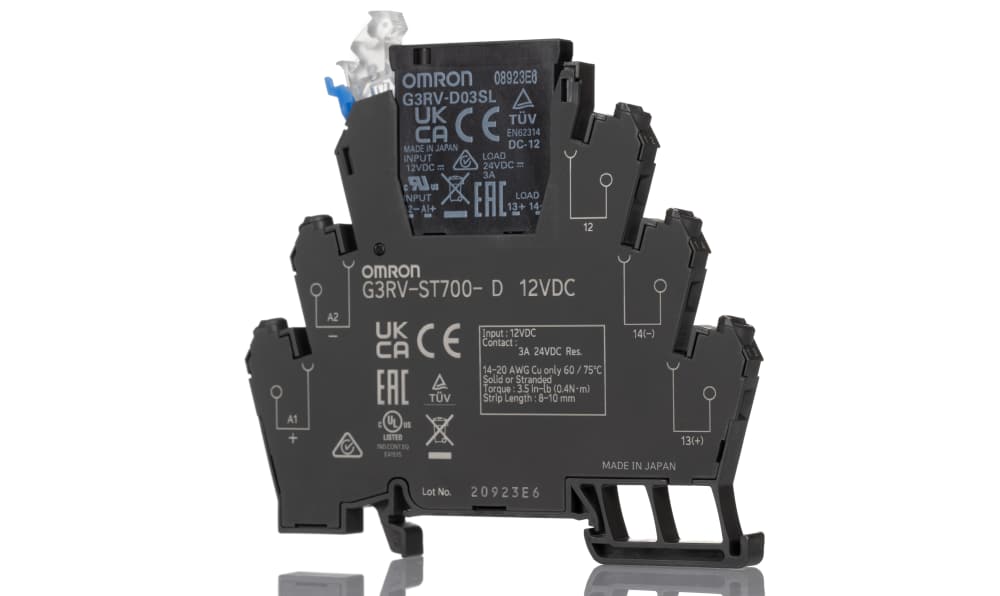

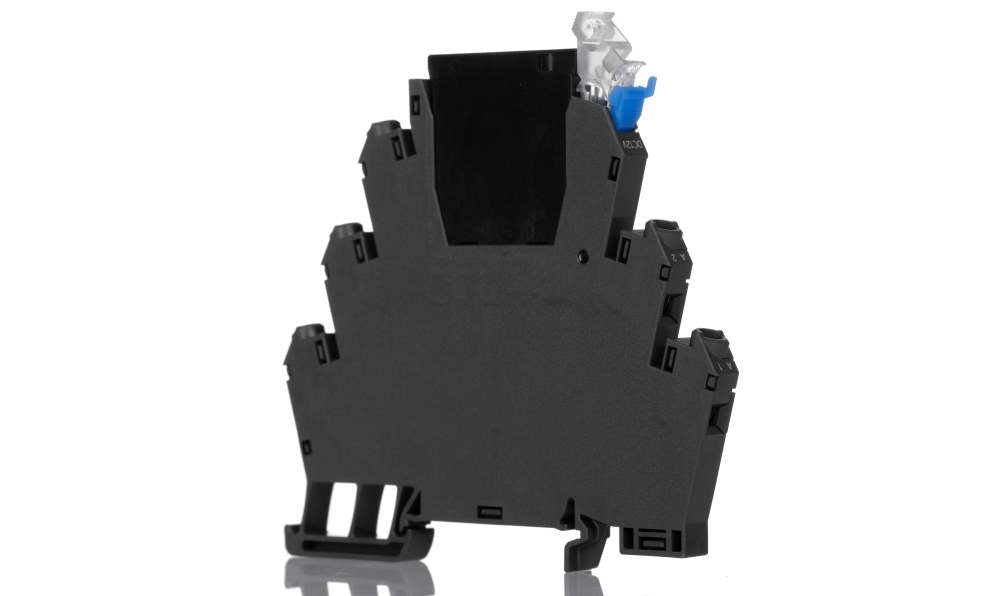

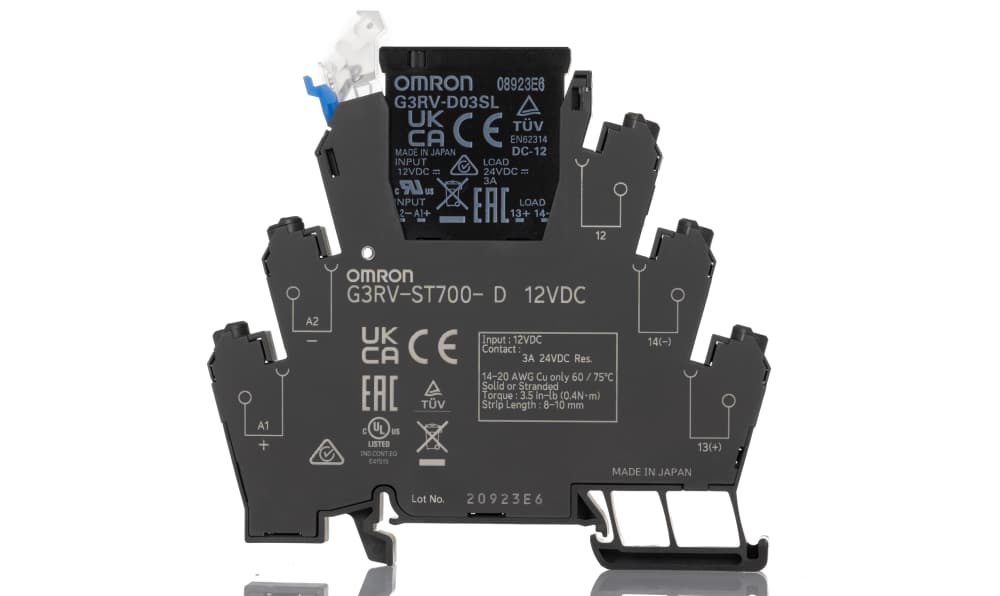

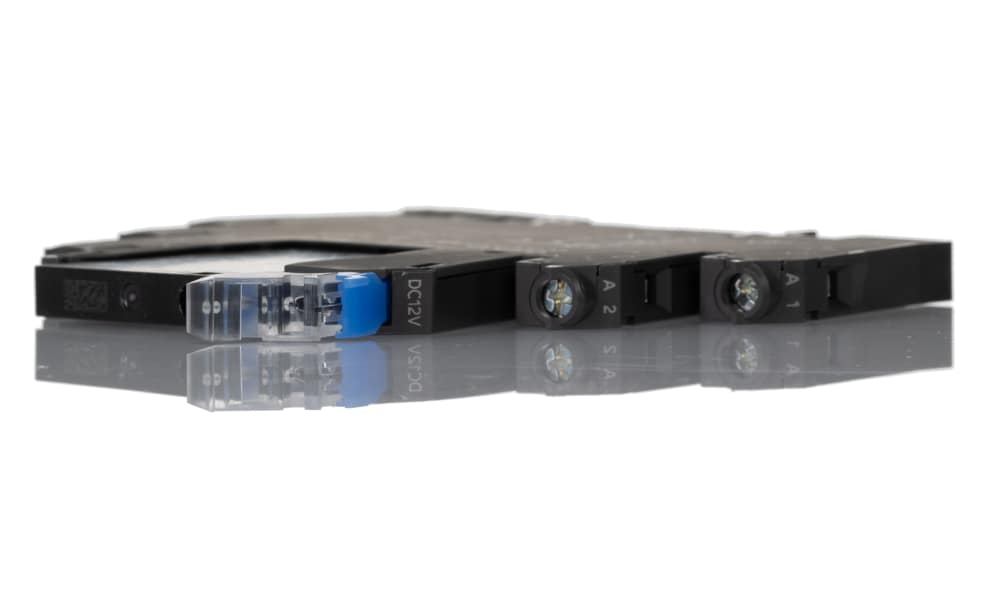

Name: Omron G3RV-ST700-D 12VDC, G3RV-ST Series Solid State Interface Relay, 12 Vdc Control, 3 A Load, DIN Rail Mount
Brand: OMRON
SKU: G3RV-ST700-D 12VDC
Availability: OutOfStock

Part Number : G3RV-ST700-D 12VDC

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron G3RV-ST Series Solid State Interface Relay, SPDT Configuration, 9.6 to 13.2 V Control Voltage Range - G3RV-ST700-D DC12

This Omron product is a compact solid-state relay with an integrated low-profile socket. It features a DC output (MOSFET) and operates at 12V DC. Its slim design saves panel space, making it ideal for space-constrained applications.

Features & Benefits

• Occupies minimal space on panels, allowing for efficient use of limited real estate
• The relay comes with a built-in socket, simplifying installation and reducing wiring complexity
• With a maximum leakage current of 10 μA (at 24 VDC), it ensures energy efficiency and minimises power loss

Applications

• Suitable for PLC control, motor drives, and sensor interfacing
• Used in lighting control, HVAC systems, and access control
• Ideal for switching valves, pumps, and heaters

What is the maximum load current supported by the G3RV-ST700-D DC12?

The relay can handle load currents from 100 μA to 3A.

Is the G3RV-ST700-D DC12 suitable for high-speed switching applications?

Yes, it has an operate time of 6 ms max, making it suitable for rapid switching.

Can I use this relay for both AC and DC loads?

Yes, it supports both AC and DC loads within the specified voltage range.

Brand	Omron
Maximum Control Voltage	12 Vdc
Maximum Load Current	3 A
Mounting Type	DIN Rail
Maximum Load Voltage	26.4 Vdc
Minimum Control Voltage	10.8 V
Control Voltage Range	9.6 - 13.2 V
Switching Type	High-Speed
Contact Configuration	SPDT
Load Voltage Range	3 - 26.4V
Minimum Load Voltage	3 Vdc
Terminal Type	Screw
Number of Poles	1
Input Current	8mA
Width	6.2mm
Height	90mm
Rise Time	6ms
Length	88mm
Series	G3RV-ST
Minimum Load Current	0.1 mA

Omron G3RV-ST700-D 12VDC, G3RV-ST Series Solid State Interface Relay, 12 Vdc Control, 3 A Load, DIN Rail Mount

DOWNLOAD CATALOG

G3RV-ST700-D 12VDC Brochure - Industrial Relays A700000011227029
