Name: Omron G3VM-355CR, G3VM Series Solid State Relay, 0.12 A Load, PCB Mount, 350 V ac Load, 1.3 V Control
Brand: OMRON
SKU: G3VM-355CR
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G3VM-355CR, G3VM Series Solid State Relay, 0.12 A Load, PCB Mount, 350 V ac Load, 1.3 V Control

Part Number : G3VM-355CR

Availability: Sold out

Detailed Description
Specifications

G3VM MOSFET SSR

Solid-state relay with MOSFET output and photo-LED input
Combines advantages of mechanical and solid state technology
Low on-resistance and output capacitance
Long life
Wide range of models available
Ideal for telecom solutions, including line seizing, switching, hook switching, line transformer control and other phone functions

G3VM-355CR MOS FET General Purpose Series SSR – Solid State Relay.

The G3VM-355CR General purpose MOS FET relay offers a wealth of benefits required from maintenance free relays. SPST NO/NC (normally open) (normally closed), DIP (dual inline) Thru-hole package relay with 8-pin PCB relay terminals, high speed and a load voltage of 350 V.

Features and Benefits G3VM-355CR General Purpose SSR – Solid Sate Relay.

• MOS FET Solid state relay.
• Surface mounted relay terminals.
• Contact form SPST-NO 1a (normally open) SPST-NC 1b (normally closed).
• Through hole relay.
• PCB Terminals.
• 8 Relay terminals.
• Load voltage 350 V ac.
• Load current 120 mA max.
• Maximum resistance with output ON 15 Ω.
• Current leakage when relay is open 1000 nA max.
• Capacitance between terminals 65 pF.
• SSR -Turn ON time 1 ms max.
• SSR -Turn OFF time 3 ms max.
• Dielectric strength between I/O 2500 Vrms.
• RoHS Compliant.

Additional Features G3VM-355CR General Purpose SSR – Solid State Relay.

• Long operational life.
• Small leakage current.
• SSR has excellent shock resistance.
• High insulation.
• Silent operation.
• High-speed switching.
• Control the micro analogue signal.
• Photo-LED input.
• Status output.
• Compact

Other Application Examples.

• Test and measurement equipment.
• Communication equipment.
• Security equipment.

Brand	Omron
Maximum Load Current	0.12 A
Mounting Type	PCB Mount
Maximum Load Voltage	350 V ac
Minimum Load Voltage	0 V ac
Maximum Control Voltage	1.3 V
Switching Type	DC
Control Voltage Range	Maximum of 1.3 V
Minimum Load Current	100 mA
Terminal Type	PCB Pin
Contact Configuration	SPDT
Output Device	MOSFET
Package Style	PDIP
Load Voltage Range	0 → 350V ac
Series	G3VM
Dimensions	9.66 x 6.4 x 3.65mm
Depth	6.4mm
Height	3.7mm
Off State Leakage Current	50 mA
Operating Temperature Range	-40 → +85°C

Omron G3VM-355CR, G3VM Series Solid State Relay, 0.12 A Load, PCB Mount, 350 V ac Load, 1.3 V Control

Omron G3VM-355CR, G3VM Series Solid State Relay, 0.12 A Load, PCB Mount, 350 V ac Load, 1.3 V Control

G3VM MOSFET SSR

G3VM-355CR MOS FET General Purpose Series SSR – Solid State Relay.

Features and Benefits G3VM-355CR General Purpose SSR – Solid Sate Relay.

Additional Features G3VM-355CR General Purpose SSR – Solid State Relay.

Other Application Examples.

Omron G3VM-41UR4, G3VM Series Solid State Relay, 250 mA Load, Surface Mount, 32 V ac/dc Load, 1.4 V Control

Omron G3VM-41GR8, G3VM Series Solid State Relay, 1 A Load, Surface Mount, 40 V Load, 1.5 V Control

Omron G3VM-351VY1, G3VM Series Solid State Relay, 700 mA Load, Surface Mount, 350 V Load, 1.4 V Control

Omron G3VM-61QV2L(TR05), G3VM Series Solid State Relay, 1000 mA Load, Surface Mount, 60 V Load

Omron G3VM-61AR1, G3VM Series Solid State Relay, 3 A Load, PCB Mount, 60 V Load

Omron G3VM-61WR(TR05), G3VM Series Solid State Relay, 3 A Load, Surface Mount, 60 V Load

Omron G3VM-31DR(TR05), G3VM Series Solid State Relay, 4 A Load, Surface Mount, 30 V Load

Meet Us F2F

Chicago Pneumatic CP8848-2 Pack US 1/2 Cordless impact wrenches Cordless electric tools 68-950NM

Chicago Pneumatic CP8848-2 1/2 Cordless impact wrenches Cordless electric tools 68-950NM

Mitutoyo 193-101 Micrometer Digit Read, 0-25mm

Mitutoyo 7321A Dial Thickness Gauge, 0-10mm

Omron G3VM-355CR, G3VM Series Solid State Relay, 0.12 A Load, PCB Mount, 350 V ac Load, 1.3 V Control

G3VM MOSFET SSR

G3VM-355CR MOS FET General Purpose Series SSR – Solid State Relay.

Features and Benefits G3VM-355CR General Purpose SSR – Solid Sate Relay.

Additional Features G3VM-355CR General Purpose SSR – Solid State Relay.

Other Application Examples.

Related Products

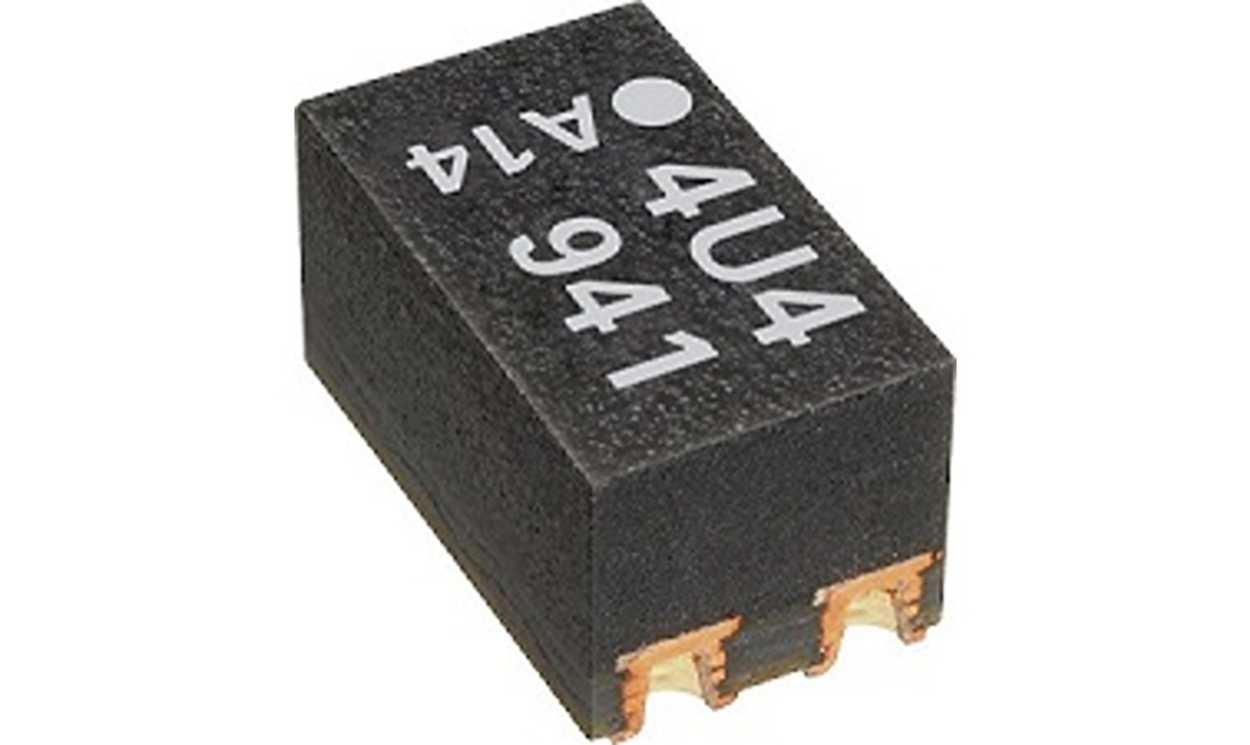

Omron G3VM-41UR4, G3VM Series Solid State Relay, 250 mA Load, Surface Mount, 32 V ac/dc Load, 1.4 V Control

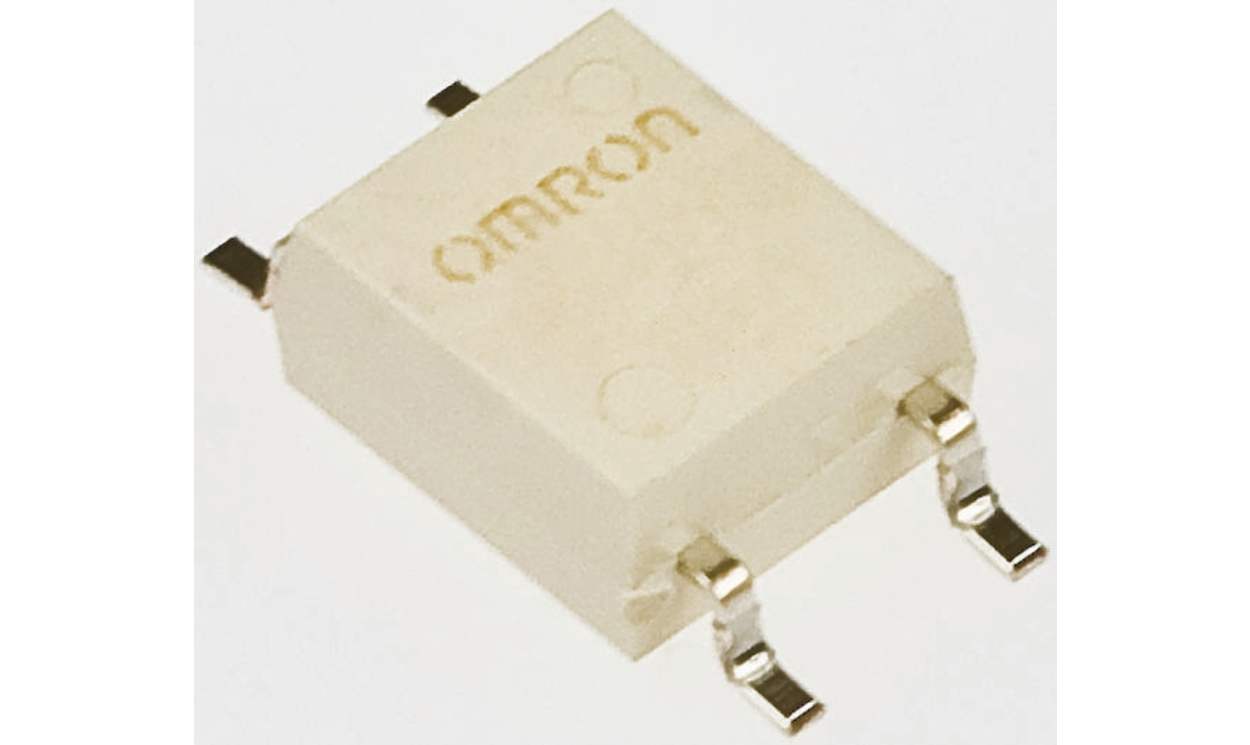

Omron G3VM-41GR8, G3VM Series Solid State Relay, 1 A Load, Surface Mount, 40 V Load, 1.5 V Control

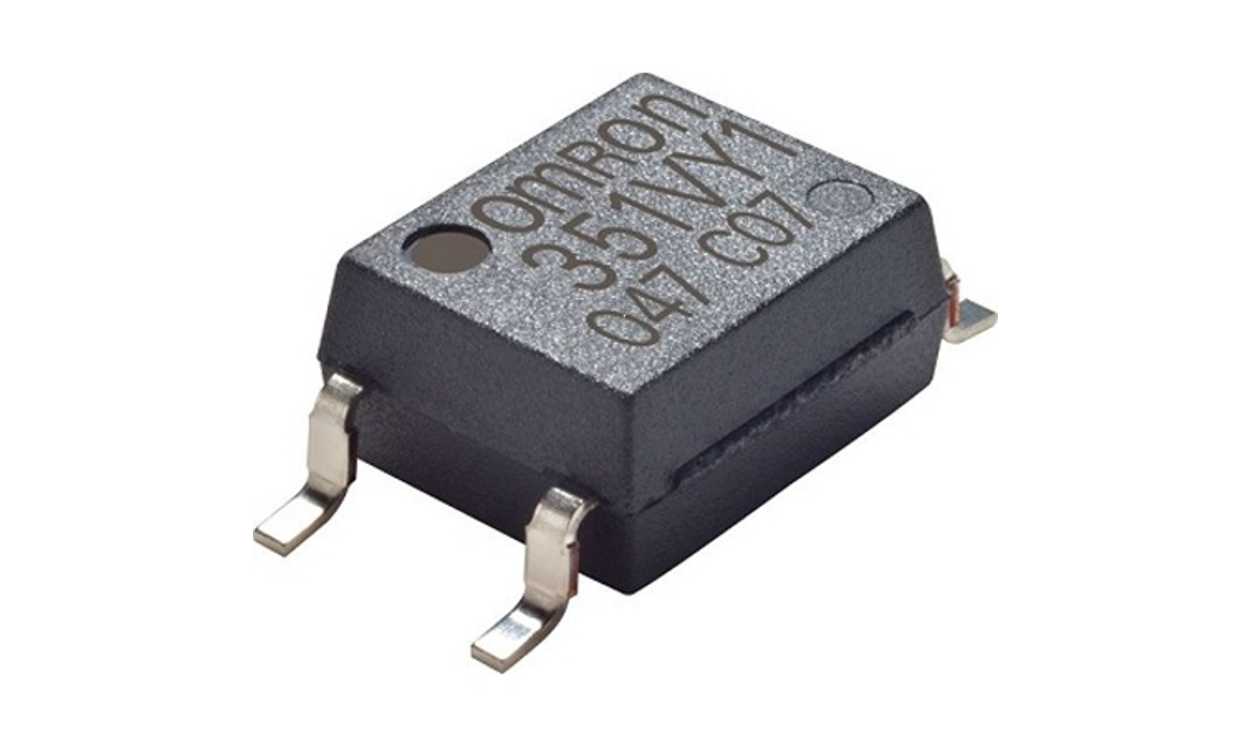

Omron G3VM-351VY1, G3VM Series Solid State Relay, 700 mA Load, Surface Mount, 350 V Load, 1.4 V Control

Omron G3VM-61QV2L(TR05), G3VM Series Solid State Relay, 1000 mA Load, Surface Mount, 60 V Load

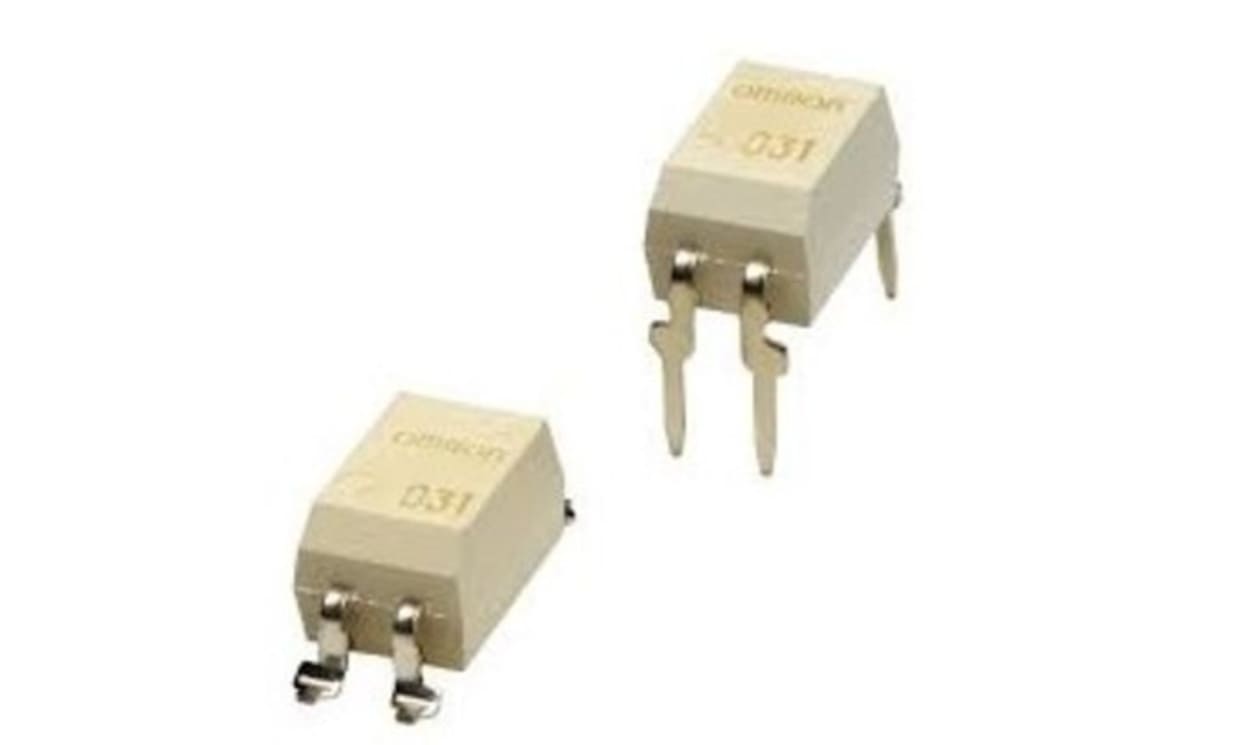

Omron G3VM-61AR1, G3VM Series Solid State Relay, 3 A Load, PCB Mount, 60 V Load
