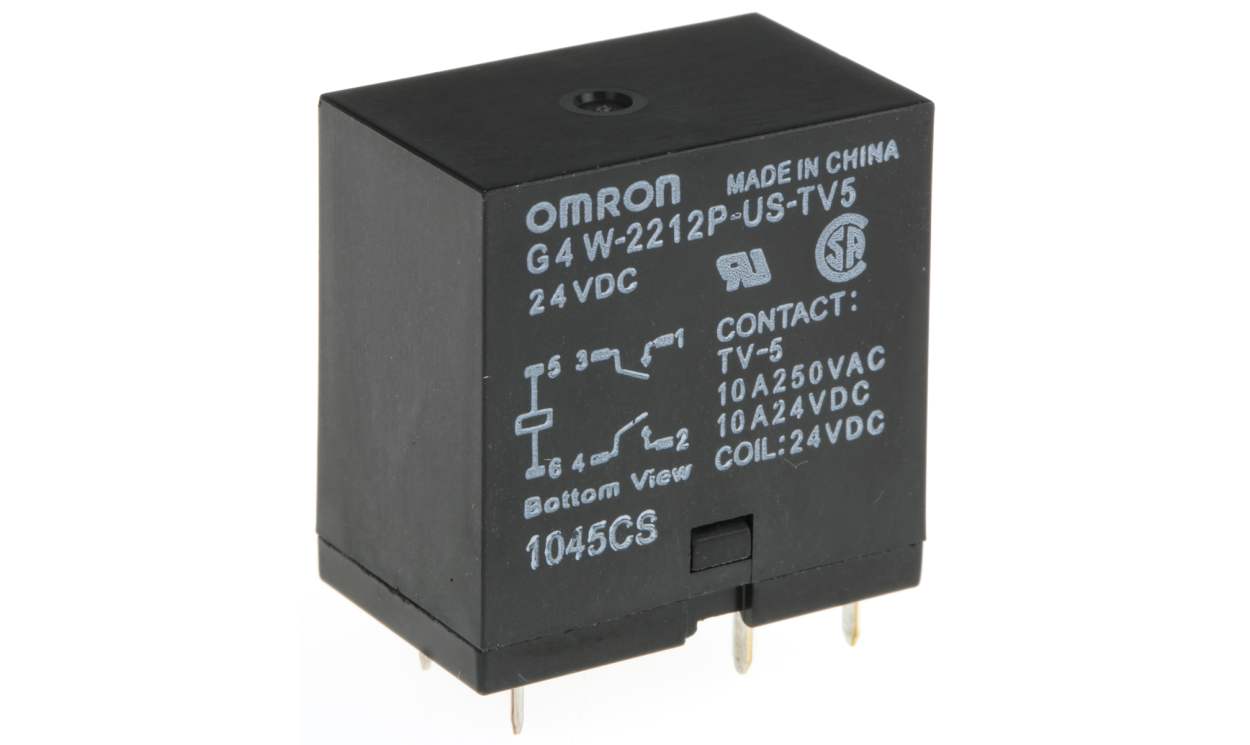

Name: Omron G4W-2212P-US-TV5 DC24, PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, DPST
Brand: OMRON
SKU: G4W-2212P-US-TV5 DC24
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G4W-2212P-US-TV5 DC24, PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, DPST

Part Number : G4W-2212P-US-TV5 DC24

Availability: Sold out

Detailed Description
Specifications

G4W Series

Impulse withstand voltage of 10,000V between input and output (coil and contact)
Creepage distance of 8mm typically
Low power consumption (0.8W)
Ideal for power supply switching
Unsealed DPST-NO types conform to TV-5 rating
Unsealed SPST-NO types conform to TV-8 rating

Approvals

UL, CSA

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPST
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	2
Series	G4W
Latching	No
Terminal Type	Through Hole
Length	30.5mm
Coil Resistance	720Ω
Minimum Operating Temperature	-25°C
Height	30.5mm
Contact Material	Silver
Depth	19.5mm
Maximum Operating Temperature	+55°C
Maximum Switching Power AC	2.5 kVA
Maximum Switching Power DC	240 W
Application	Power
