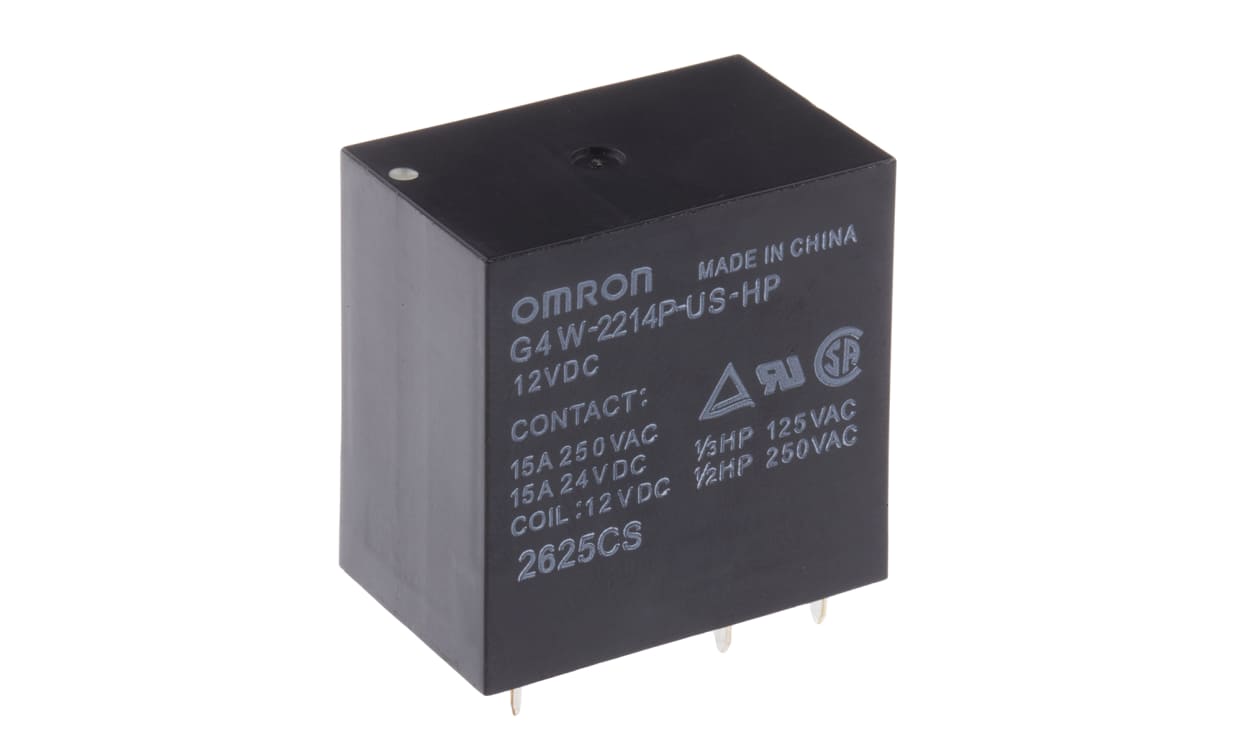

OMRON G4W-2214P-US-HP 12DC | PCB Power Relay | 12 V DC Coil, 15 A, DPST

Name: OMRON G4W-2214P-US-HP 12DC | PCB Power Relay | 12 V DC Coil, 15 A, DPST
Brand: OMRON
SKU: G4W-2214P-US-HP 12DC
Availability: InStock

Part Number : G4W-2214P-US-HP 12DC

The OMRON G4W-2214P-US-HP 12DC is a PCB-mount G4W series power relay with a 12 V DC coil and DPST contacts, rated for 15 A switching current. Further G4W-2214P-US-HP 12DC details: a coil resistance of 180 Ω and non-latching operation.

2-pole DPST contact form
Switches up to 3.75 kVA AC
Silver Alloy contacts
Through-hole terminals
Rated for -25 °C to 55 °C ambient
Size 30.48 x 30.5 x 19.5 mm (L x H x D)

Availability: low stock

Detailed Description
Specifications
Downloads

G4W Series

Impulse withstand voltage of 10,000V between input and output (coil and contact)
Creepage distance of 8mm typically
Low power consumption (0.8W)
Ideal for power supply switching
Unsealed DPST-NO types conform to TV-5 rating
Unsealed SPST-NO types conform to TV-8 rating

Approvals

UL, CSA

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	DPST
Mounting Type	PCB Mount
Switching Current	15A
Number of Poles	2
Latching	No
Series	G4W
Terminal Type	Through Hole
Length	30.48mm
Coil Resistance	180Ω
Height	30.5mm
Contact Material	Silver Alloy
Minimum Operating Temperature	-25°C
Depth	19.5mm
Maximum Operating Temperature	+55°C
Maximum Switching Power AC	3.75 kVA
Application	Power
