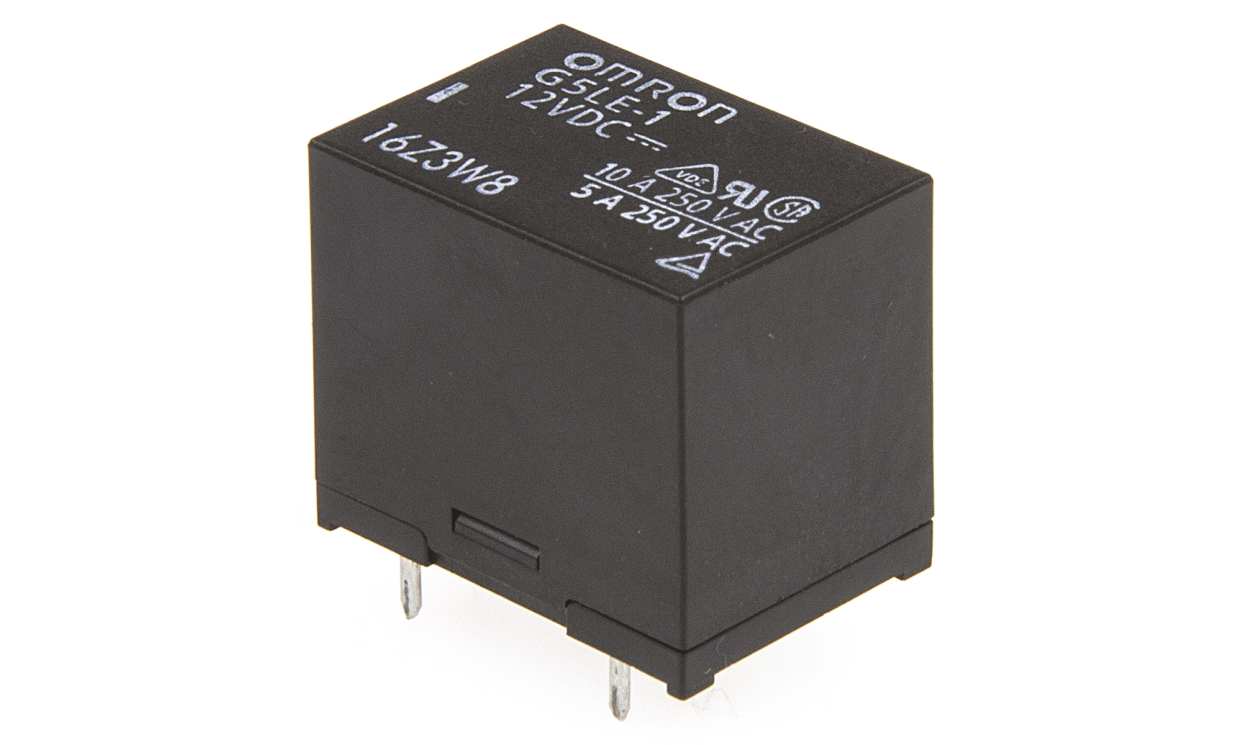

OMRON G5LE-1 12DC | PCB Power Relay | 12 V DC Coil, 10 A, SPDT

Name: OMRON G5LE-1 12DC | PCB Power Relay | 12 V DC Coil, 10 A, SPDT
Brand: OMRON
SKU: G5LE-1 12DC
Availability: InStock

Part Number : G5LE-1 12DC

This 12 V DC coil version of the OMRON G5LE relay family, part number G5LE-1 12DC, is a PCB-mount power relay with SPDT contacts switching up to 10 A. Further G5LE-1 12DC details: a coil resistance of 360 Ω and non-latching operation.

Coil power: 400 mW
Number of poles: 1
Maximum DC switching power: 240 W
Coil-to-contact isolation: 2 kV AC
Contact material: silver alloy
Terminal type: PCB pin

Availability: low stock

Detailed Description
Specifications
Downloads

G5LE Series

Subminiature 'sugar cube' format
Ideal for control circuit applications
High current switching capacity
Withstands impulse of up to 4500V
Dimensions; L22.5xW16.5xH19 mm

Approvals

UL, CSA, VDE

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	SPDT
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	1
Latching	No
Series	G5LE
Terminal Type	PCB Pin
Length	22.5mm
Coil Resistance	360Ω
Coil Power	400mW
Height	19mm
Depth	16.5mm
Maximum Operating Temperature	+85°C
Isolation Coil To Contact	2kV ac
Life	10000000 (Electrical) cycles
Contact Material	Silver Alloy
Minimum Operating Temperature	-25°C
Maximum Switching Power DC	240 W
