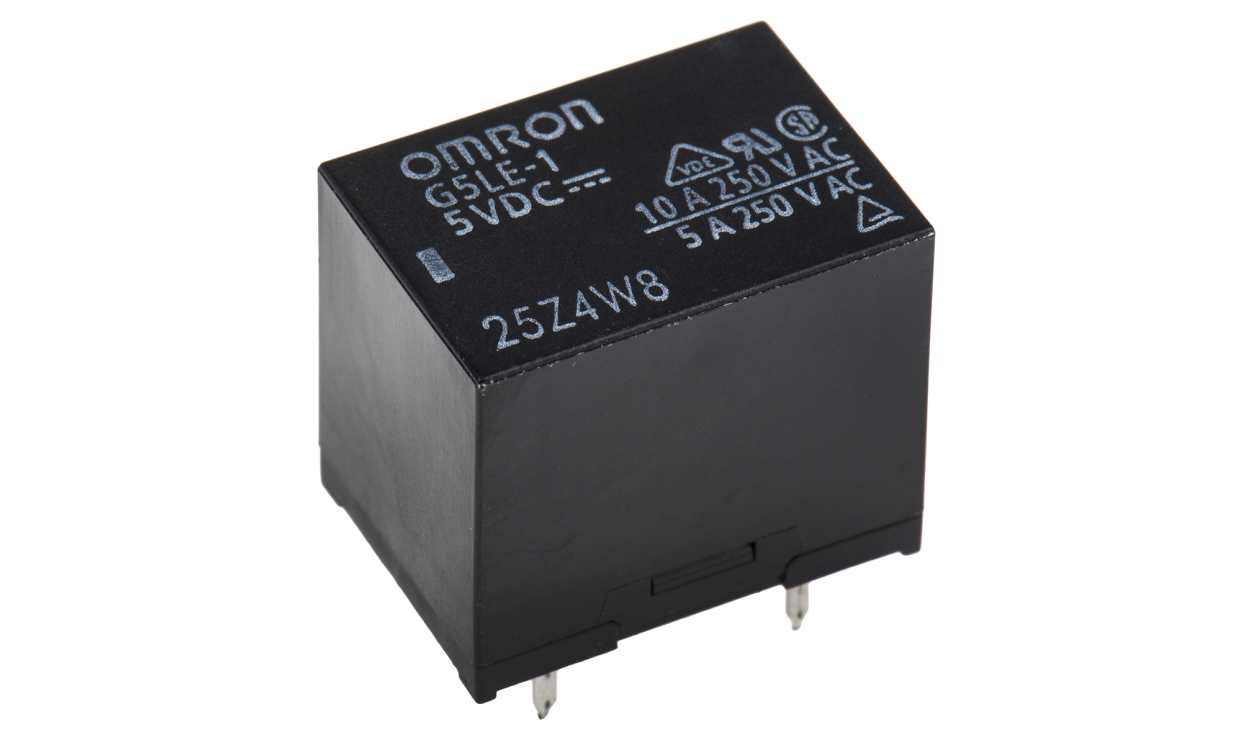

OMRON G5LE-1 DC5 | PCB Power Relay | 5 V DC Coil, 10 A, SPDT
For circuits needing a 5 V DC coil, the OMRON G5LE-1 DC5 provides an SPDT contact set in a PCB-mount G5LE series power relay format, rated at 10 A. Also specified: a coil resistance of 63 Ω and non-latching operation.
- Number of poles: 1
- Maximum switching power: 1.2 kVA AC, 240 W DC
- Contact material: silver alloy
- Terminal type: PCB pin
- Operating temperature: -25 °C to 85 °C
- Dimensions: 22.5 x 19 x 16.5 mm (L x H x D)
- Detailed Description
- Specifications
- Downloads
G5LE Series
Ideal for control circuit applications
High current switching capacity
Withstands impulse of up to 4500V
Dimensions; L22.5xW16.5xH19 mm
Approvals

G5LE-1 5DC Cubic Single Pole PCP Power Non-Latching Relay.
Features and Benefits.
• Universal terminal footprint.
• SPDT (1c) contact.
• Flux protection
• 1-Pole.
• Rated coil voltage 5 V dc.
Relay Coil Ratings.
• Coil resistance 63 Ω.
• Must operate voltage 75% max of rated voltage.
• Max voltage 130% of rated voltage at 85°C, 170% pf rated voltage at 23°C.
• Approx power consumption of 400 mW.
Contact Rating.
• Rated carry current 10 A.
• Switching voltage max 250 V ac, 125 V dc (30 V dc when the standard UL/CSA is applied).
• Switching current max AC is 10 A, DC is 8 A.
• Switching power max 1200 VA, 240 W.
• Permissible load min is 100 mA at 5 V dc.
Relay additional features.
• Dielectric strength 2000 V ac, 50/60 Hz (1 minute between coil and contacts), 750 V ac, 50/60 Hz (1 minute between contacts of the same polarity).
• Vibration resistance destruction and malfunction 10 to 55 Hz, 1.5 mm double amplitude.
• Shock resistance destruction 1000 m/s², malfunction 100 m/s².
• Ambient operating temperature -40°C to 85°C, no icing.
• Relay approx. weight 12 g.
| Brand | Omron |
| Series | G5LE |
| Coil Voltage | 5V dc |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 10A |
| Number of Poles | 1 |
| Latching | No |
| Coil Resistance | 63Ω |
| Terminal Type | PCB Pin |
| Length | 22.5 mm (0.886 in) |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Height | 19 mm (0.748 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Depth | 16.5 mm (0.650 in) |
| Contact Material | Silver Alloy |
| Maximum Switching Power AC | 1.2 kVA |
| Application | Power |
| Maximum Switching Power DC | 240 W |
