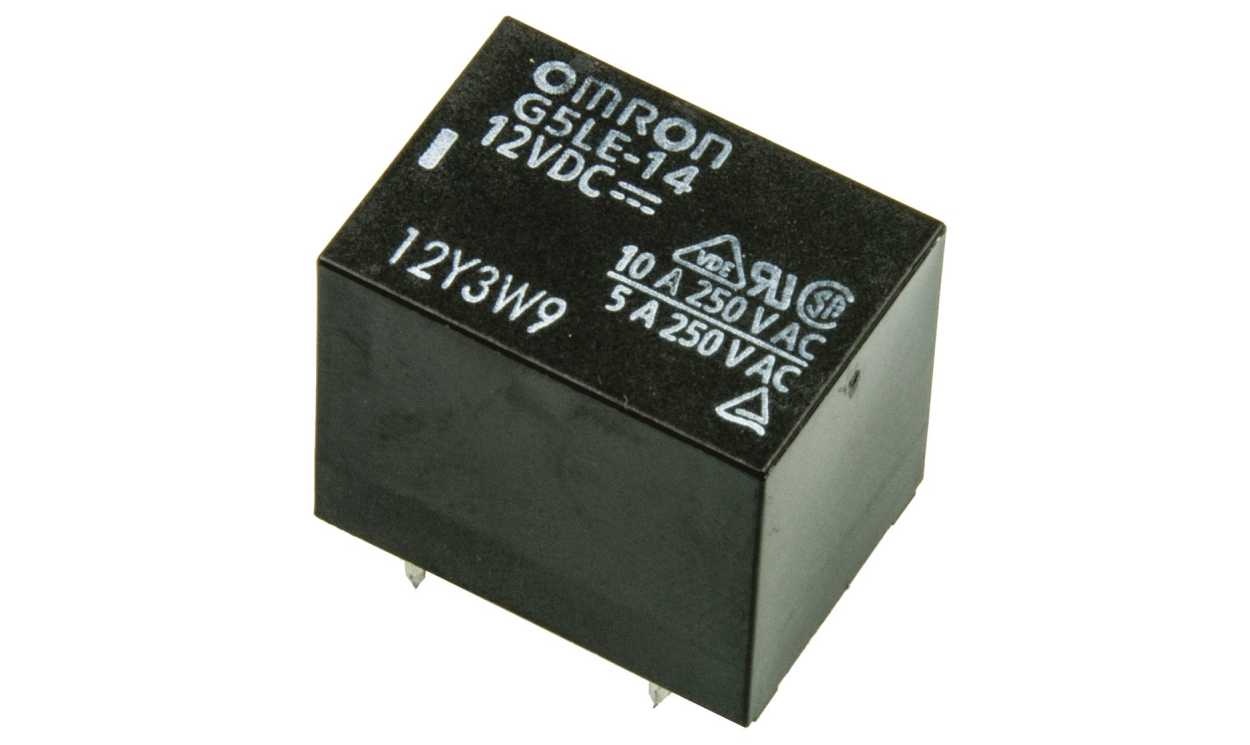

OMRON G5LE-14 DC12 | PCB Power Relay | 12 V DC Coil, 10 A, SPDT

Name: OMRON G5LE-14 DC12 | PCB Power Relay | 12 V DC Coil, 10 A, SPDT
Brand: OMRON
SKU: G5LE-14 DC12
Availability: InStock

Part Number : G5LE-14 DC12

For circuits needing a 12 V DC coil, the OMRON G5LE-14 DC12 provides an SPDT contact set in a PCB-mount G5LE series power relay format, rated at 10 A. Further G5LE-14 DC12 details: a coil resistance of 360 Ω and non-latching operation.

1-pole SPDT contact form
Switching power up to 1.2 kVA (AC) and 240 W (DC)
Silver Alloy contacts
PCB pin terminals
Rated for -25 °C to 85 °C ambient
Size 22.5 x 19 x 16.5 mm (L x H x D)

Availability: low stock

Detailed Description
Specifications
Downloads

G5LE Series

Subminiature 'sugar cube' format
Ideal for control circuit applications
High current switching capacity
Withstands impulse of up to 4500V
Dimensions; L22.5xW16.5xH19 mm

Approvals

UL, CSA, VDE

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	SPDT
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	1
Series	G5LE
Latching	No
Terminal Type	PCB Pin
Length	22.5mm
Coil Resistance	360Ω
Height	19mm
Contact Material	Silver Alloy
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+85°C
Depth	16.5mm
Maximum Switching Power DC	240 W
Maximum Switching Power AC	1.2 kVA
Application	Power
