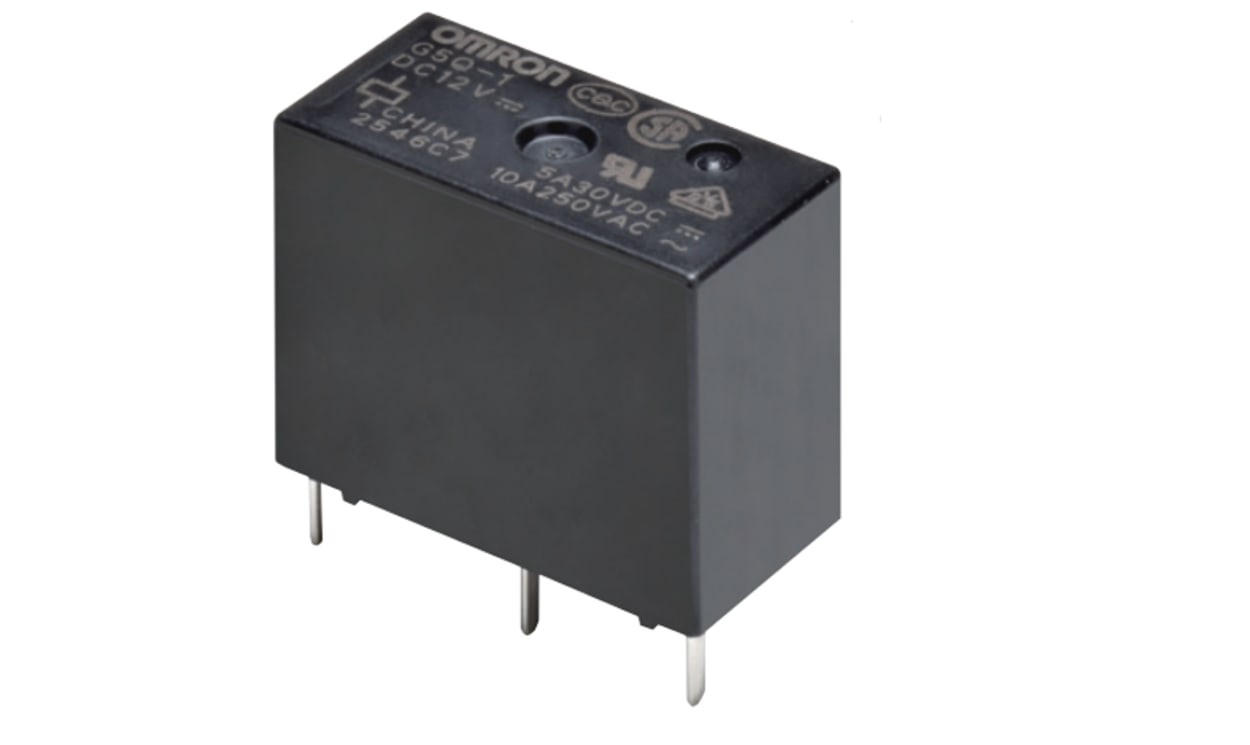

OMRON G5Q-1A-HA-PW DC12 (TY) | PCB Mount Non-Latching Relay | 12 V DC Coil, 10 A, SPST

Name: OMRON G5Q-1A-HA-PW DC12 (TY) | PCB Mount Non-Latching Relay | 12 V DC Coil, 10 A, SPST
Brand: OMRON
SKU: G5Q-1A-HA-PW DC12 (TY)
Availability: InStock

Part Number : G5Q-1A-HA-PW DC12 (TY)

With its 12 V DC coil, OMRON G5Q-1A-HA-PW DC12 (TY) is an SPST PCB-mount non-latching relay with a 10 A switching current rating. Coil resistance is 720 Ω with 200 mW coil power, and coil-to-contact isolation is 8 kV.

SPST contact configuration, 1 pole
Number of coils: single
OMRON G5Q series

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron miniature power relay with 1-pole and 10A switching capacity. Rated coil voltage is 12Vdc and use for output applications of control equipment.

Excellent switching performance for a variety of loads
Small, yet provides 8-kV impulse withstand voltage (between coil and contacts)
Low coil power consumption (SPST-NO: 200 mW, SPDT: 400 mW)
Coil insulation system: Class F (UL1446)
IEC/EN 60335-1 confor

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	SPST
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	1
Series	G5Q
Coil Resistance	720 Ω
Coil Power	200mW
Isolation Coil To Contact	8kV
Number of Coils	Single
