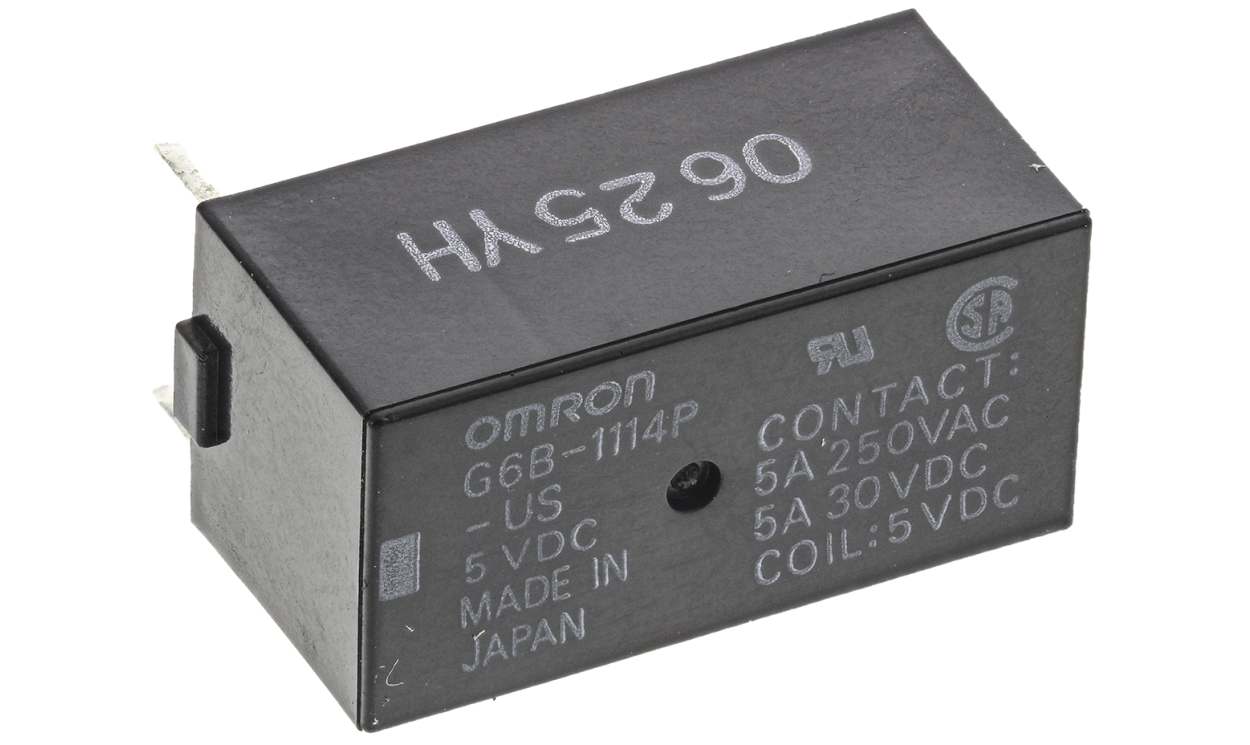

OMRON G6B-1114P-US 5DC | PCB Mount Power Relay | 5 V DC Coil, 5 A, SPST
Part Number : G6B-1114P-US 5DC
The OMRON G6B-1114P-US 5DC is a PCB-mount non-latching power relay with a 5 V DC coil and SPST contacts rated at 5 A. Coil resistance is 125 Ω with 200 mW coil power, and coil-to-contact isolation is 3 kV AC.
- SPST contact configuration, 1 pole
- Operating temperature: -25 to +70 °C
- Life: 50,000,000 electrical cycles
- Dimensions (L x D x H): 21 x 10 x 10 mm
- Terminal type: through hole
- OMRON G6B series
For pricing, please contact our experts.
Omron PCB Power Relays - G6B Series
The Omron G6B series PCB power relay is a subminiature, low power consumption device that features a unique moving loop armature that aids in the reduction of relay size, magnetic interference and contact bounce time. Omron G6B power relays are high capacity, high dialectric strength, fully sealed devices with an impulse withstand voltage of 6kV. The G6B series would be ideal for output applications of control equipment.
Subminiature: 20x10x10mm
Low 200 mW power consumption
Low 200 mW power consumption
Approvals
UL recognised; CSA certified
