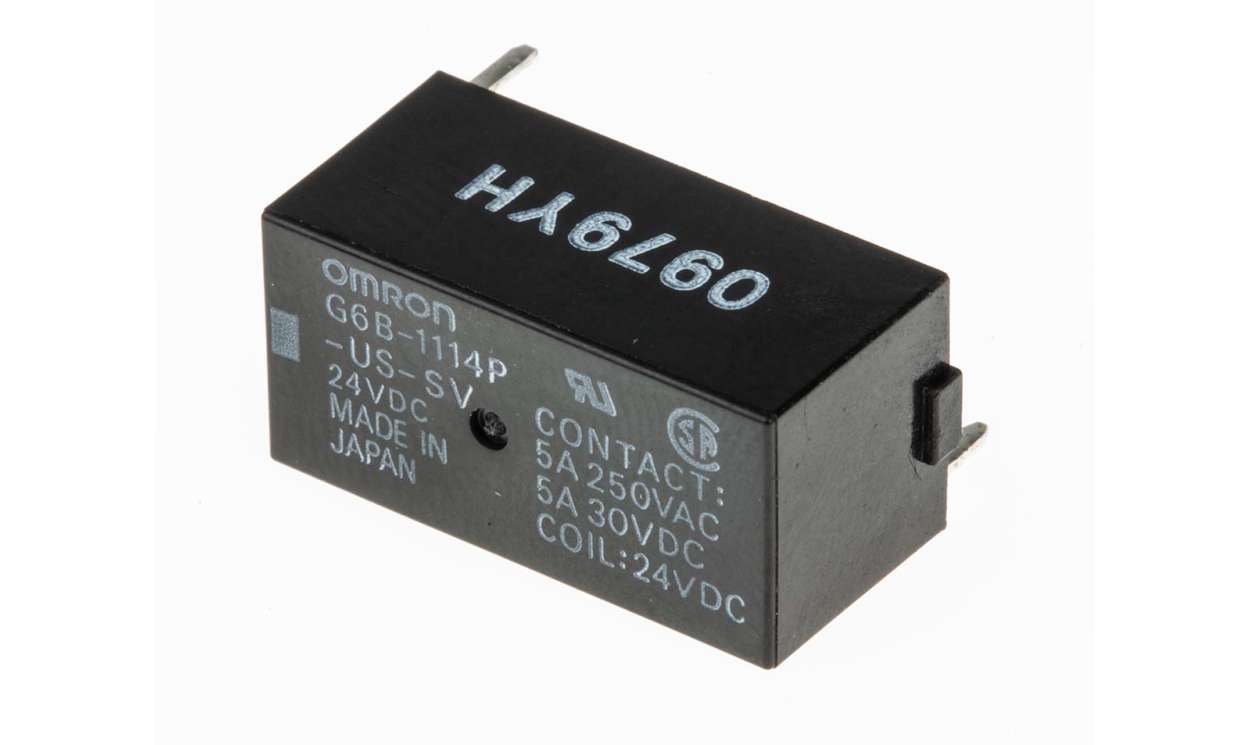

OMRON G6B-1114P-US-SV DC24 | PCB Mount Power Relay | 24 V DC Coil, 5 A, SPST
Part Number : G6B-1114P-US-SV DC24
OMRON G6B-1114P-US-SV DC24 pairs a 24 V DC coil with SPST contacts carrying 5 A in a PCB-mount non-latching power relay format. On this model, the coil draws 200 mW and measures 2,880 Ω, and contacts handle up to 380 V AC or 125 V DC.
- SPST contact configuration, 1 pole
- Terminal type: through hole
- OMRON G6B series
- Coil-to-contact isolation: 3 kV AC
- Contact material: silver alloy
- Maximum operating temperature: +70 °C
For pricing, please contact our experts.
Omron SPNO Miniature PCB Relay
The Omron G6B series PCB mount non-latching subminiature relay has a contact configuration of SPNO. It is actuated with 24VDC coil voltage and 5A switching current. This relay has a unique moving loop armature that aids in the reduction of relay size, magnetic interference and contact bounce time. It has a high capacity, high dielectric strength, fully sealed devices with an impulse withstand voltage of 6kV. This relay is ideal for output applications of the control panel.
Features and Benefits
Low 200mW power consumption
Coil power is 200mW
Coil resistance is 2.88Kohm
Through hole mount
Coil power is 200mW
Coil resistance is 2.88Kohm
Through hole mount
Certifications
UL recognised
CSA certified
SEV approved
CSA certified
SEV approved
