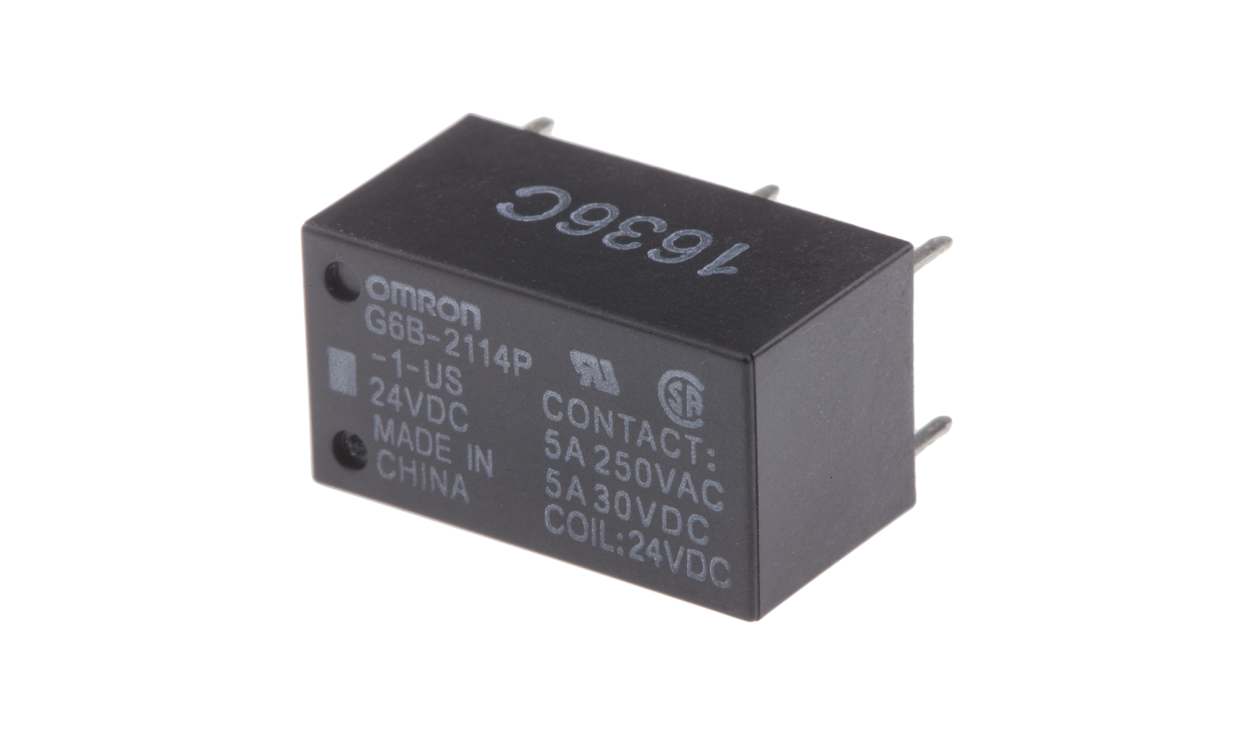

OMRON G6B-2114P-1-US DC24 | PCB Mount Power Relay | 24 V DC Coil, 5 A, SPST-NO + SPST-NC

Name: OMRON G6B-2114P-1-US DC24 | PCB Mount Power Relay | 24 V DC Coil, 5 A, SPST-NO + SPST-NC
Brand: OMRON
SKU: G6B-2114P-1-US DC24
Availability: InStock

Part Number : G6B-2114P-1-US DC24

Rated for 5 A switching, the OMRON G6B-2114P-1-US DC24 PCB-mount non-latching power relay uses a 24 V DC coil and an SPST-NO + SPST-NC contact arrangement. The coil draws 200 mW and measures 2,880 Ω, and contacts handle up to 380 V AC or 125 V DC.

SPST-NO + SPST-NC contact configuration
Contact material: silver alloy
Operating temperature: -25 to +70 °C
Life: 100,000 operations
Dimensions (L x D x H): 20 x 11 x 11 mm
Terminal type: through hole

Availability: low stock

Detailed Description
Specifications
Downloads

Omron PCB Power Relays - G6B Series

The Omron G6B series PCB power relay is a subminiature, low power consumption device that features a unique moving loop armature that aids in the reduction of relay size, magnetic interference and contact bounce time. Omron G6B power relays are high capacity, high dialectric strength, fully sealed devices with an impulse withstand voltage of 6kV. The G6B series would be ideal for output applications of control equipment.

Subminiature: 20x10x10mm
Low 200 mW power consumption

Approvals

UL recognised; CSA certified

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	SPST-NC, SPST-NO
Mounting Type	PCB Mount
Switching Current	5A
Number of Poles	1
Series	G6B
Latching	No
Terminal Type	Through Hole
Maximum Switching Voltage AC	380V ac
Maximum Switching Voltage DC	125V dc
Length	20mm
Coil Resistance	2880Ω
Coil Power	200mW
Height	11mm
Contact Material	Silver Alloy
Life	100000 Operations
Depth	11mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
