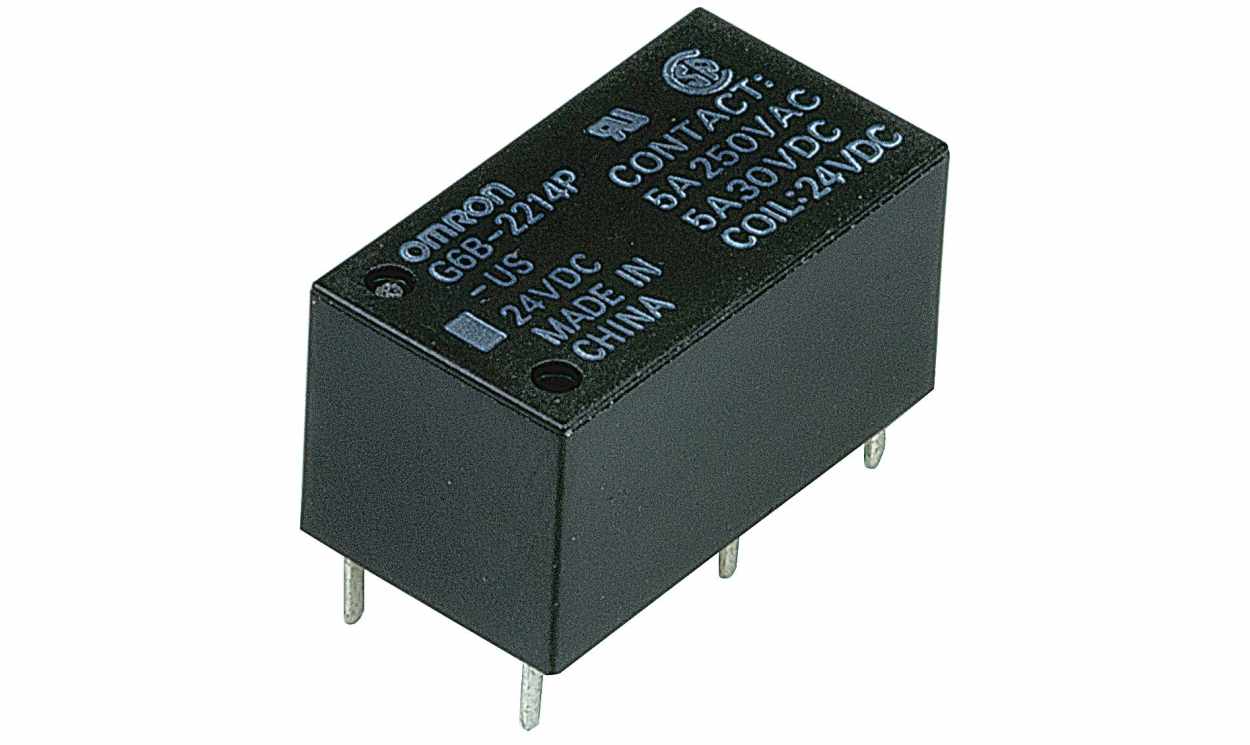

OMRON G6B-2214P-US DC24 | PCB Mount Power Relay | 24 V DC Coil, 5 A, DPST
Part Number : G6B-2214P-US DC24
Rated for 5 A switching, the OMRON G6B-2214P-US DC24 PCB-mount non-latching power relay uses a 24 V DC coil and an DPST contact arrangement. For this variant, coil resistance is listed as 1,920 Ω, and maximum switching power is 1.25 kVA AC / 150 W DC.
- DPST contact configuration, 2 poles
- Contact material: silver
- Operating temperature: -25 to +70 °C
- Dimensions (L x D x H): 20 x 11 x 11 mm
- Terminal type: through hole
- Listed application: power
For pricing, please contact our experts.
Omron PCB Power Relays - G6B Series
The Omron G6B series PCB power relay is a subminiature, low power consumption device that features a unique moving loop armature that aids in the reduction of relay size, magnetic interference and contact bounce time. Omron G6B power relays are high capacity, high dialectric strength, fully sealed devices with an impulse withstand voltage of 6kV. The G6B series would be ideal for output applications of control equipment.
Subminiature: 20x10x10mm
Low 200 mW power consumption
Low 200 mW power consumption
Approvals
UL recognised; CSA certified
