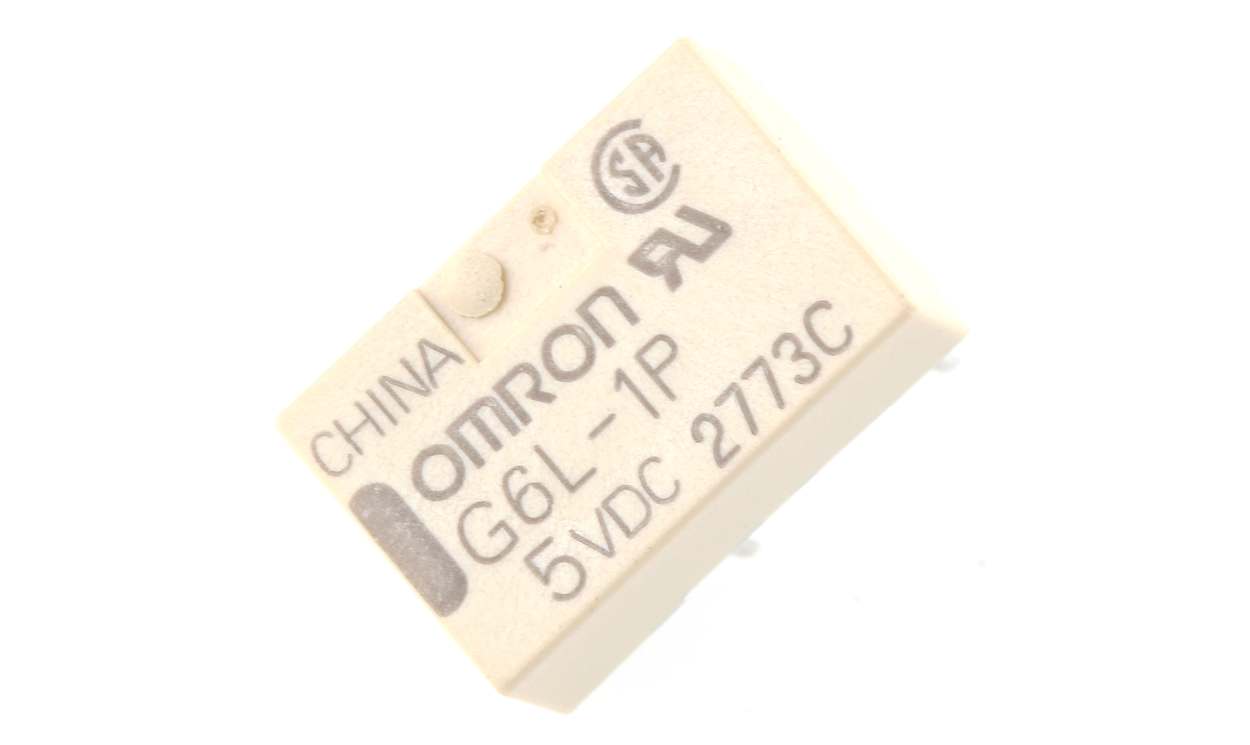

Name: Omron G6L-1P 5DC, PCB Mount Signal Relay, 5V dc Coil, 1A Switching Current, SPST
Brand: OMRON
SKU: G6L-1P 5DC
Availability: OutOfStock

Omron G6L-1P 5DC, PCB Mount Signal Relay, 5V dc Coil, 1A Switching Current, SPST

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G6L-1P 5DC, PCB Mount Signal Relay, 5V dc Coil, 1A Switching Current, SPST

Part Number : G6L-1P 5DC

Availability: Sold out

Detailed Description
Specifications
Downloads

G6L-1P Series

Extremely thin SPST-NO flat relay

Dimensions: 7x10.6x3.8 (WxLxH)
Dielectric strength between coil and contacts 1000 Vac, 50//60 Hz for 1min.
Conforms to FCC part 68
Use of lead completely eliminated
Max. Switching current 1A
Max. Switching voltage 125Vac 60Vdc
Expected life cycle 5 x 10⁶
Operating temperature range -40 to +70°C

Brand	Omron
Coil Voltage	5V dc
Contact Configuration	SPST
Mounting Type	PCB Mount
Maximum Switching Current DC	1 A
Maximum Switching Voltage AC	125V
Maximum Switching Voltage DC	60V dc
Series	HFD31
Maximum Switching Power DC	30 W
Length	10.6mm
Latching	No
Depth	7mm
Height	3.8mm
Dimensions	10.6 x 3.8 x 7mm
Terminal Type	PCB Pin
Number of Poles	1
Switching Current	1A
Application	Signal
Isolation Coil To Contact	1.5kV ac
Maximum Operating Temperature	+70°C

Omron G6L-1P 5DC, PCB Mount Signal Relay, 5V dc Coil, 1A Switching Current, SPST
