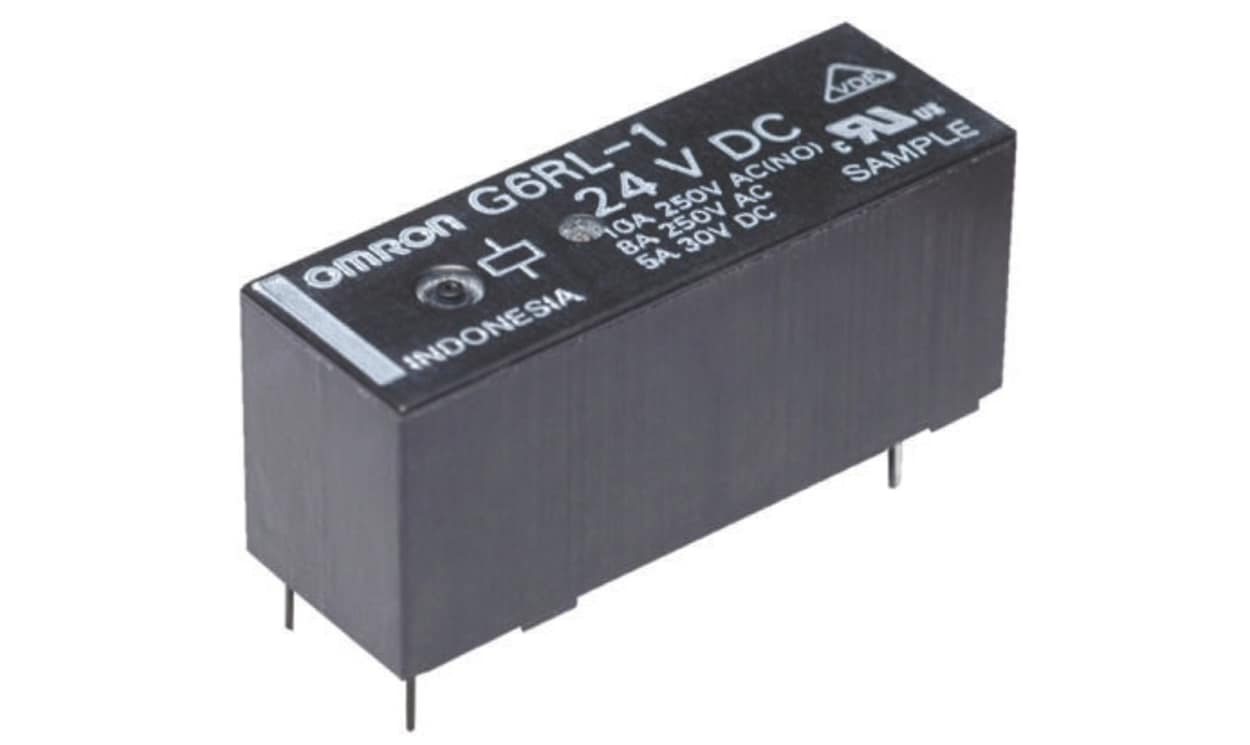

OMRON G6RL-14-ASI DC24 | PCB Mount Power Relay | 24 V DC Coil, 10 A, SPDT
Part Number : G6RL-14-ASI DC24
This 24 V DC version of the OMRON G6RL-14-ASI DC24 is a PCB-mount non-latching power relay offering SPDT contacts and 10 A switching current. Coil resistance is 2,618 Ω with 220 mW coil power, and contacts handle up to 400 V AC or 300 V DC.
- SPDT contact configuration, 1 pole
- Coil-to-contact isolation: 5 kV AC
- Contact material: silver alloy
- Maximum operating temperature: +85 °C
- Life: 10,000,000 mechanical operations
- Dimensions (L x D x H): 28.5 x 10 x 12.3 mm
For pricing, please contact our experts.
G6RL Series
Available in SPST-NO and SPDT contact forms
Low profile: 12.3mm max height
Flux proof
Clearance and creepage distance 10 mm
Low coil power consumption: 220mW (typical)
Low profile: 12.3mm max height
Flux proof
Clearance and creepage distance 10 mm
Low coil power consumption: 220mW (typical)
Approvals
UL 508 (File no. E41643), VDE
