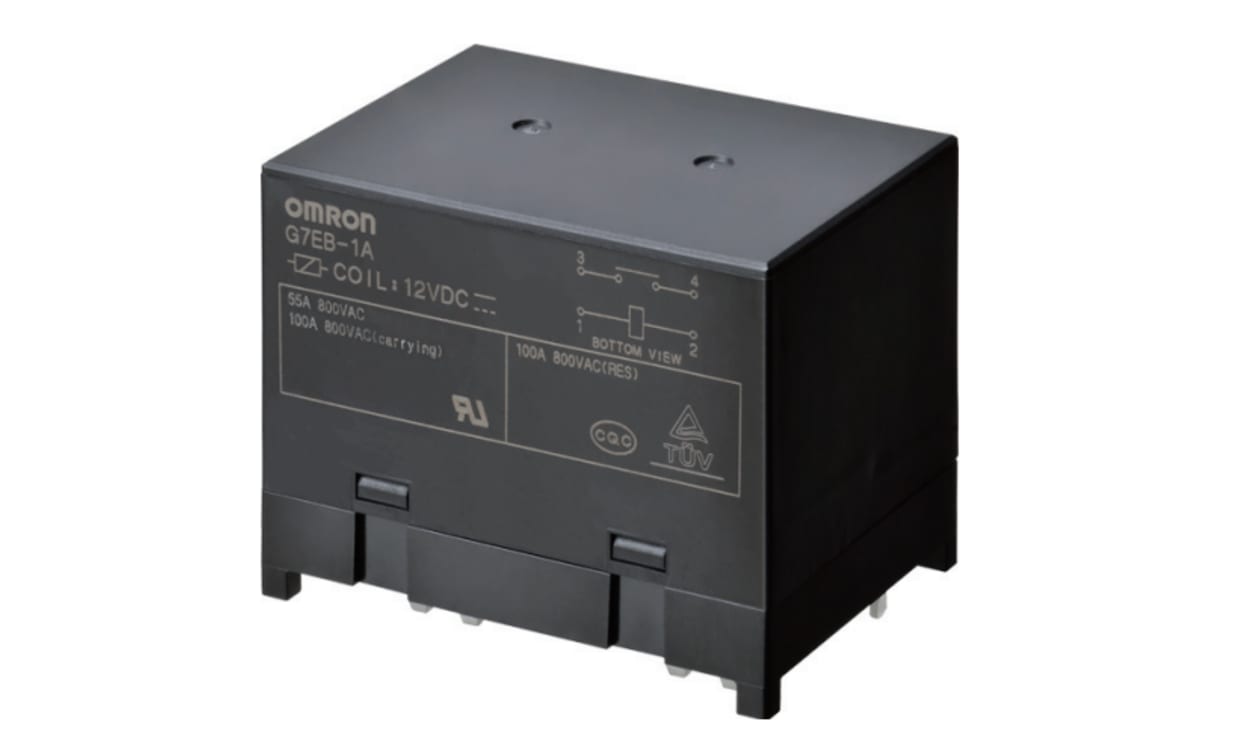

OMRON G7EB-1A DC12 | PCB Mount Non-Latching Relay | 12 V DC Coil, 100 A, SPST

Name: OMRON G7EB-1A DC12 | PCB Mount Non-Latching Relay | 12 V DC Coil, 100 A, SPST
Brand: OMRON
SKU: G7EB-1A DC12
Availability: InStock

Part Number : G7EB-1A DC12

OMRON G7EB-1A DC12 pairs a 12 V DC coil with SPST contacts carrying 100 A in a PCB-mount non-latching relay format. On this model, the coil draws 2.8 W and measures 51 Ω, and coil-to-contact isolation is 10 kV.

SPST contact configuration, 1 pole
OMRON G7EB series
Number of coils: single

Availability: low stock

Detailed Description
Specifications

The Omron G7EB series high power and high temperature type power relay with 480 VAC and 100 A switching current. Used for power conditioner inverter and industrial inverter.

480 VAC/100 A high current switching
60 VDC/100 A for normal/reverse direction switching
Ambient temperature 85°C
High impulse withstand voltage, 10 kV
Contact gap ≥3.6 mm (Applied to VDE0126)
Low initial contact resistance ≤5 mΩ

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	SPST
Mounting Type	PCB Mount
Switching Current	100A
Number of Poles	1
Series	G7EB
Coil Resistance	51 Ω
Coil Power	2.8W
Isolation Coil To Contact	10kV
Number of Coils	Single
