Name: Omron G7SA-3A1B 24VDC, PCB Mount Force Guided Relay, 24V dc Coil Voltage, 4 Pole, 3PST, SPST
Brand: OMRON
SKU: G7SA-3A1B 24VDC
Availability: OutOfStock

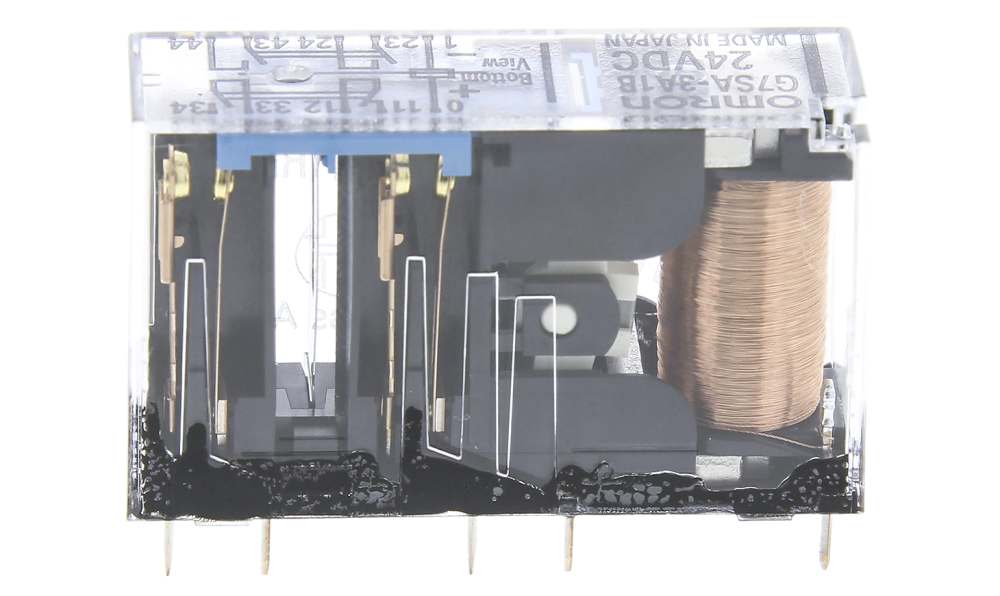

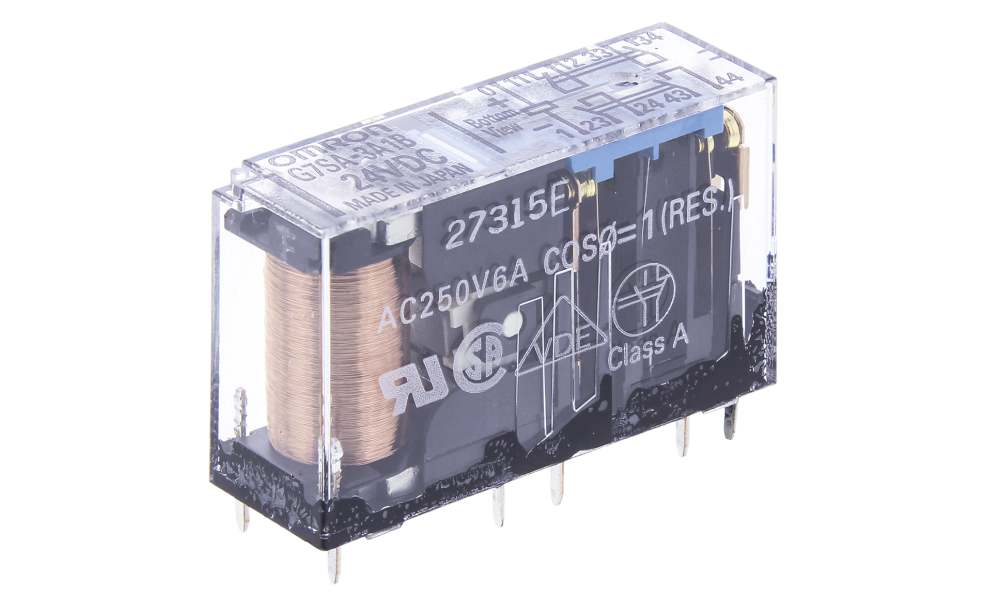

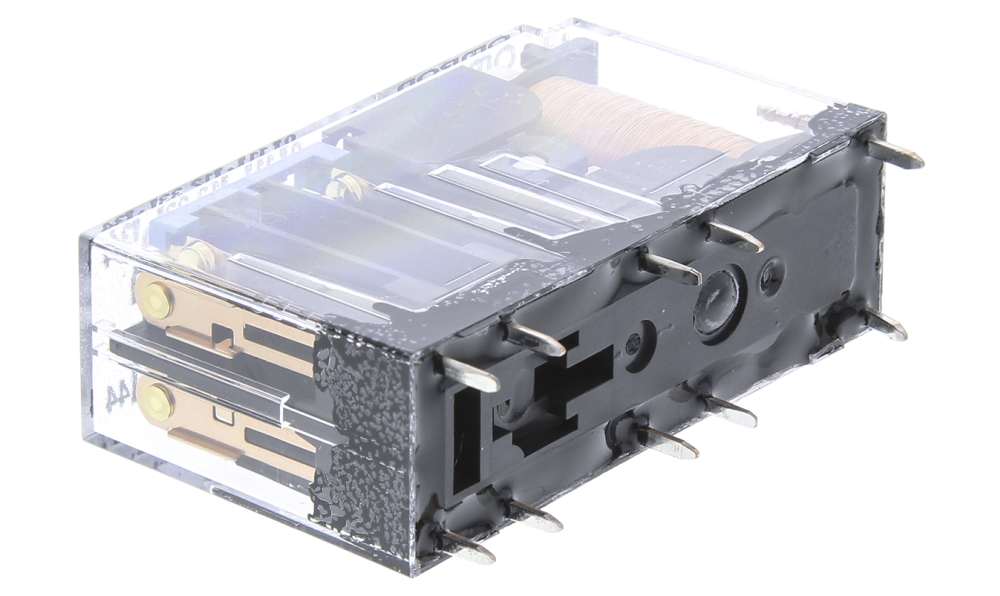

Omron G7SA-3A1B 24VDC, PCB Mount Force Guided Relay, 24V dc Coil Voltage, 4 Pole, 3PST, SPST

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G7SA-3A1B 24VDC, PCB Mount Force Guided Relay, 24V dc Coil Voltage, 4 Pole, 3PST, SPST

Part Number : G7SA-3A1B 24VDC

Availability: Sold out

Detailed Description
Specifications

6A Relays with Forcibly Guided Contacts - G7SA

The slimline G7SA relay family with forcibly guided contacts is available as a four- or six-pole type in various contact combinations and offers reinforced insulation. Terminals are arranged for easy PCB layout. It can be soldered directly to a PCB or used together with the P7SA sockets for panel installations.

Forcibly guided contacts
6A at 240VAC and 6A at 24VDC for resistive loads
Reinforced insulation between inputs and outputs and poles
4- and 6-pole relays available
Sealing: flux-tight
Operating temperature: -40 to 85C

Standards

Conforms to EN 50205

Approvals

UL, CSA

OMRON Force Guided Relay, 4000V AC Dielectric Strength, PCB Mounting - G7S Series - G7SA-3A1B DC24

Need a way to keep tabs on the circuits in your machinery? Count on this force guided relay from OMRON. It has a safety design that monitors your system and powers it down in the event of a hazard, helping prevent accidents. The gold-plated silver contacts are highly conductive and corrosion-resistant, so you get reliable performance even in damp settings. To support long-term use, flux-tight sealing prevents damage from external contaminants. A low current rating of 15mA means the component is an energy-saving choice for use anywhere from lighting systems to automated doors.

Features & Benefits

• Performs reliably in a wide operating temperature range between -40°C and +85°C
• Through-hole termination achieves a secure and vibration-proof attachment to machinery
• Light weight of 22g so it won't strain your PCB
• 4-pole configuration to streamline your equipment
• Insulation resistance of 1000MΩ for protection against electric shocks

Applications

• Automotive industry
• Power plants
• Chemical processing factories

What's the lifespan of this relay?

The component has a mechanical lifecycle of 10 million operations, so you can count on it to perform for the long run.

Brand	Omron
Coil Voltage	24V dc
Mounting Type	PCB Mount
Contact Configuration	3PST, SPST
Number of Poles	4
Coil Resistance	1.6 kΩ
Switching Current	6A
Maximum Switching Current AC	6 A
Coil Power	800mW
Maximum Switching Current DC	6 A
Maximum Switching Voltage DC	30V
Maximum Switching Voltage AC	250V
Terminal Type	Through Hole
Depth	13mm
Length	40mm
Life	1000000 Cycles; 100000Cycles
Maximum Operating Temperature	+85°C
Series	G7S
Minimum Operating Temperature	-40°C
Height	24mm
