OMRON G9SX-GS226-T15-RT DC24 | Safety Interlock Relay Unit | 24 V DC, Dual Channel, Category 4

Name: OMRON G9SX-GS226-T15-RT DC24 | Safety Interlock Relay Unit | 24 V DC, Dual Channel, Category 4
Brand: OMRON
SKU: G9SX-GS226-T15-RT DC24
Availability: InStock

Part Number : G9SX-GS226-T15-RT DC24

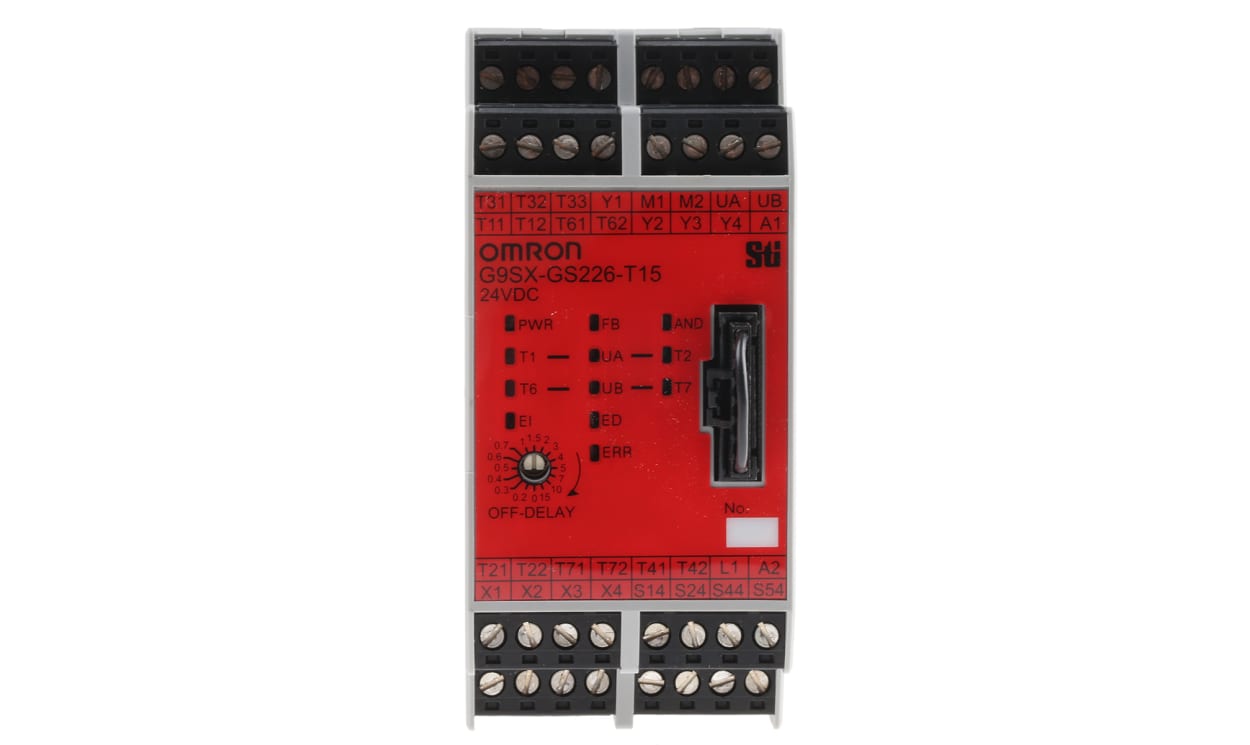

The OMRON G9SX-GS226-T15-RT is a G9SX-GS safety relay for safety switch and interlock monitoring, supplied at 24 V DC with dual-channel input. It is rated Category 4 and has screw terminals in a 100 x 45.5 x 115 mm housing.

Function: safety switch / interlock monitoring
Supply voltage: 24 V DC
Input channels: dual
Safety category 4 (ISO 13849-1)
Terminals: screw
Dimensions (L x W x D): 100 x 45.5 x 115 mm

Availability: low stock

Detailed Description
Specifications
Downloads

G9SX-GS, Safety Relays, Guard Switching

The G9SX-GS safety relay is designed to support maintenance mode and normal operation mode in a safe way.

Two operation modes to support auto switching for applications where machine and worker co-operate and manual switching for applications with limitations in operation such as machine maintenance
Clear LED diagnosis of all inputs and outputs
Applicable up to Category 4 acc. EN 954-1

Standards

EN 954-1

G9SX-GS Safety Guard Relay Switching Module.

• Two functions supporting two types of application.
• Auto-switching. Where operators work along with machines.
• Manual switching. Applications with limited operations.
• External indicator outputs indicating the switching status of two safety input devices.
• Auxiliary outputs allow monitoring of safety inputs, outputs, errors.
• LED indicators for easy diagnosis.
• Logical and connections for difficult applications along with other G9SX series.

G9SX-GS226-T15-RT DC24 Safety Guard Switching Unit.

• Safety outputs. P channel MOS-FET output.
• Instantaneous – 2 semi-conductor.
• OFF-delayed 2 semi-conductor. (instantaneous output by setting OFF-delay time to 0 s).
• Auxiliary outputs 6 semi-conductor. PNP transistor output – except for external indicator outputs, they are P channel MOS-FET outputs.
• Logical AND connections 1 semi-conductor input and output.
• Max OFF delayed time 15 s.
• Time OFF set in 16 steps (0, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 1, 1.5, 2, 3, 4, 5, 7, 10 or 15 s)
• Rated voltage 24 V dc.
• Screw terminal block.

Features and Benefits.

• Rated supply voltage 24 V dc.
• Operating voltage range -15% to 10% of sated supply voltage.
• Power consumption 5 W max.
• Input operating voltage 20.4 V dc to 26.4 V dc, Internal impedance approx. 2.8 kΩ
• Instantaneous safety outputs P channel MOS-FET
• OFF-delayed safety outputs load current 0.8 A dc max (derating required when mounted side by side 0.4 A max load)
• Auxiliary outputs PNP transistor (load current 0.8 A dc max output max) (derating required when mounted side by side 0.4 A max load)
• External indicator outputs P channel MOS-FET, connectable indicators, 24 V dc, 3 to 7 W Incandescent lamp. LED lamp 10 to 300 mA dc output.
• Overvoltage category II.
• Operating time OFF to ON state 50 ms max (safety input ON), 100 ms max (Logical AND connection input ON).
• Response time (ON to OFF state) 15 ms max
• Maximum wiring length of safety input and logical AND input 100 m max.
• Vibration resistance frequency 10 to 55 to 10 Hz, 0.375mm single amplitude (0.75 mm double amplitude).
• Shock resistance destruction 300 m/s².
• Shock resistance malfunction 100 m/s².
• Electrical durability 100,000 cycles min.
• Mechanical durability 5,000,000 cycles min.
• Weight 240 g.

Applications.

• Safety measure for hazardous operations maintaining productivity.
• Auto-switching function, safety light curtain.
• Manual switching function, door switch monitors.

Standards

IEC/EN 61508 (SIL3), IEC/EN 62061 (SIL3), EN ISO 13849-1 (PLe/safety category 4)

Brand	Omron
Supply Voltage	24V dc
Number of Channels	2
Function	Safety Switch/Interlock
Safety Category ISO 13849-1	4
Terminal Type	Screw
Depth	115mm
Width	45.5mm
Series	G9SX-GS
Length	100mm

OMRON G9SX-GS226-T15-RT DC24 | Safety Interlock Relay Unit | 24 V DC, Dual Channel, Category 4

DOWNLOAD CATALOG

G9SX-GS226-T15-RT DC24 Machine Guarding and Safety Range Overview 0900766b814521cd

G9SX-GS226-T15-RT DC24 Omron Machine Safety 0900766b814c686b

G9SX-GS226-T15-RT DC24 Datsheet 0900766b816a2286
