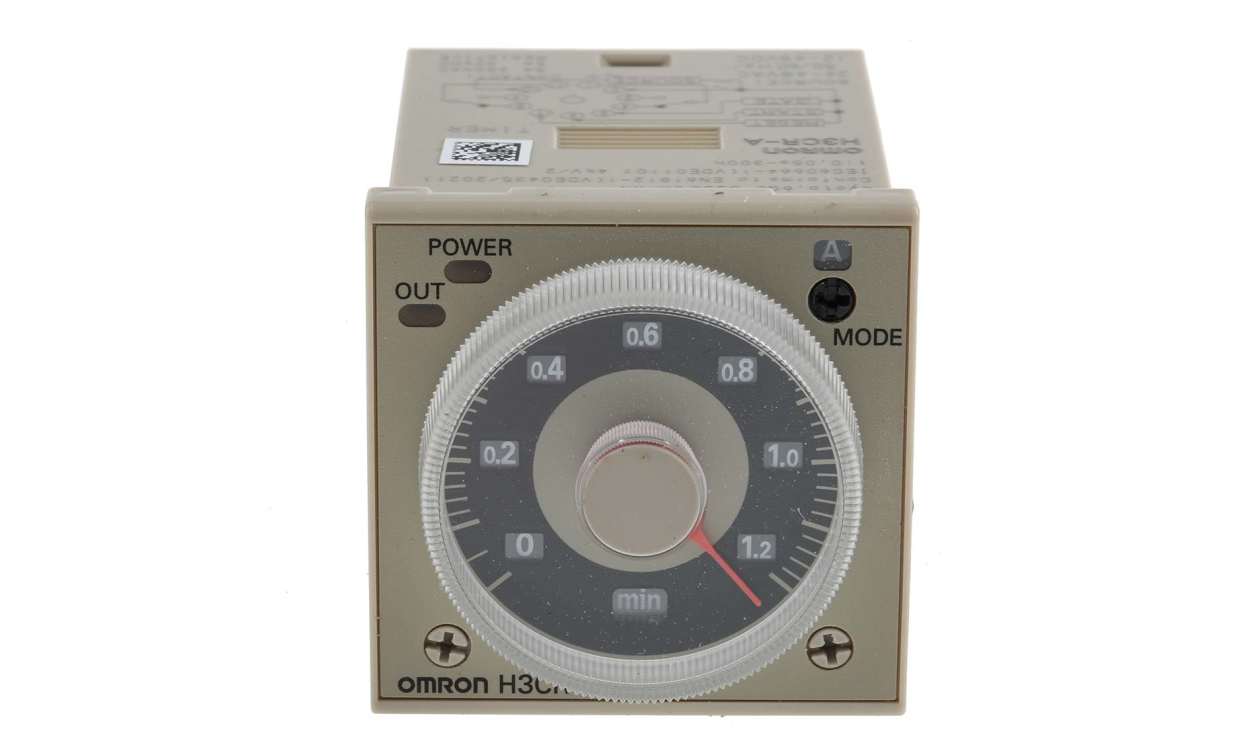

Omron H3CR-A AC24-48/DC12-48, H3CR Series DIN Rail, Panel Mount Timer Relay, 12 → 48 V dc, 24 → 48V ac, 2-Contact, 0.05 s
Part Number : H3CR-A AC24-48/DC12-48
Timer, plug-in, 11-pin, DIN 48 x 48 mm, multifunction, 0.05 s-300 h, DPDT, 5 A, 24-48VAC, 12-48VDC
For pricing, please contact our experts.
OMRON Timer Relay, 11-Pin Terminal Connector, 0.05 Seconds to 300 Hours Time Range - H3CR Series - H3CR-A AC24-48/DC12-48
Make sure your control processes never miss a beat with this timer relay from OMRON. It accurately times the start, stop and pause periods of automated machinery, medical devices and automatic lights to streamline their efficiency. You just plug in the 11-pin connector and terminate the circuits you want to manage. For versatility, you can snap the unit onto a DIN rail or install it in a panel. With compact dimensions of 48 (L) x 48 (W) x 81.6mm (D), this device makes the most of limited space.
Features & Benefits
• Multi-function inputs to control different time-sensitive parameters
• Time-setting rings help with accurate and reliable selection
• Wide voltage supply rating between 12 and 48V DC or 24 and 48V AC for use with common power feeds
• Time-setting rings help with accurate and reliable selection
• Wide voltage supply rating between 12 and 48V DC or 24 and 48V AC for use with common power feeds
Applications
• Textile industry
• Automotive manufacturing
• Industrial assembly lines
• Medical imaging systems
• Automotive manufacturing
• Industrial assembly lines
• Medical imaging systems
What's the time range of this timer relay?
The device has a time range between 0.05 seconds and 300 hours, so it's a versatile option.
Is it safe to touch this timer relay while it's connected?
Yes, it's IP40-rated, meaning it's protected against objects larger than 1mm, including your fingers.
Approvals
UL, CSA. Conforms to EMC standards.
