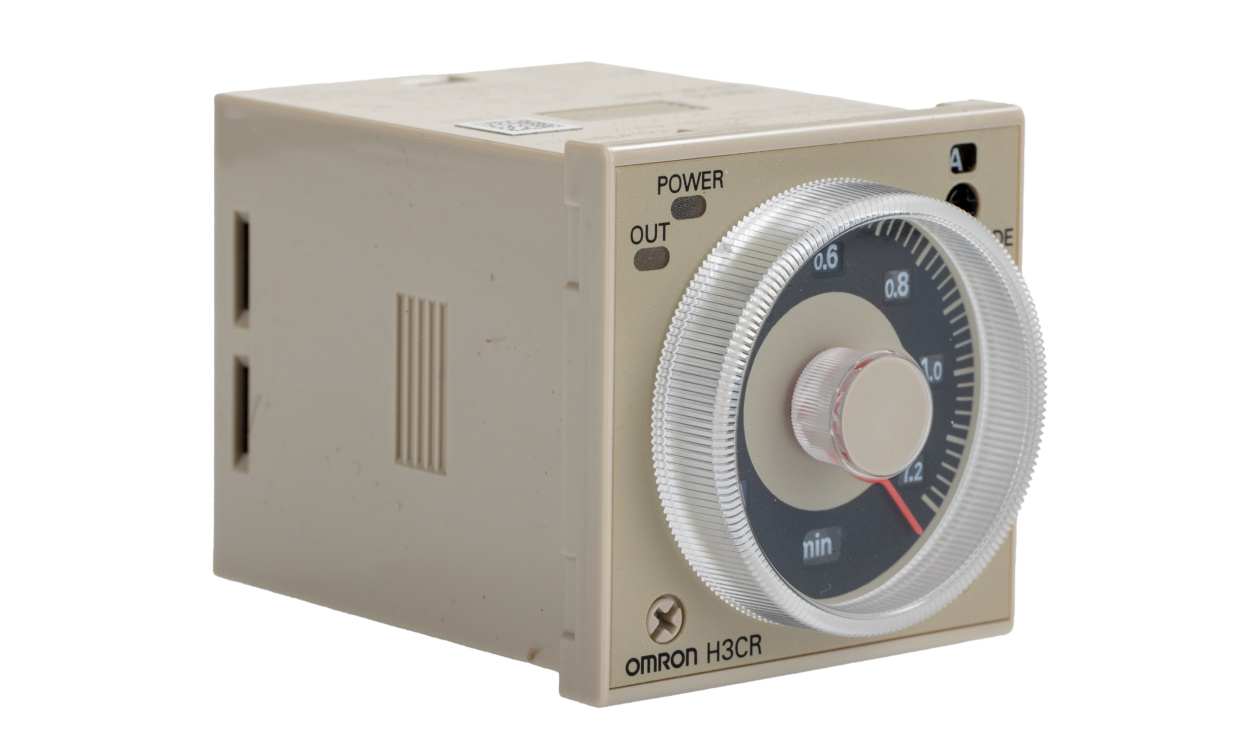

Omron H3CR-A8S AC24-48/DC12-48, H3CR Series DIN Rail Mount Timer Relay, 12 → 48 V dc, 24 → 48V ac, 8-Contact, 0.05 s → 300h

Name: Omron H3CR-A8S AC24-48/DC12-48, H3CR Series DIN Rail Mount Timer Relay, 12 → 48 V dc, 24 → 48V ac, 8-Contact, 0.05 s → 300h
Brand: OMRON
SKU: H3CR-A8S AC24-48/DC12-48
Availability: OutOfStock

Part Number : H3CR-A8S AC24-48/DC12-48

Availability: Sold out

Detailed Description
Specifications

Omron H3CR Series Timer Relay, 12 to 48V DC/24 to 48V AC Supply Voltage, 0.05s to 300h Time Range - H3CR-A8S AC24-48/DC12-48

This timer relay is designed for precision timing in various industrial applications. It plays a key role in automation, ensuring processes are executed as scheduled through its dependable ON delay operation. With a versatile operating range and a compact design suitable for DIN rail mounting, this device enhances operational efficiency and reliability in control systems.

Features & Benefits

• Supports a broad supply voltage range for flexible integration
• Multi-function capability accommodates various timing applications
• Precise time settings from 0.05 seconds to 300 hours maximise versatility
• Handles maximum currents of 0.1A for effective performance

Applications

• Utilised in automated manufacturing processes
• Ideal for timing control in HVAC systems
• Employed in lighting control to enhance energy efficiency
• Suitable for motor control in machinery
• Used in process control for precise timing sequences

How can I set the timer to specific timing increments?

You can adjust the timer settings by selecting the desired increments, including hours, minutes, or seconds, based on its multifunction capabilities.

Is this device compatible with both AC and DC power?

Yes, it operates with a supply voltage of 12 to 48V DC and 24 to 48V AC, ensuring compatibility with various systems.

What is the maximum load it can handle?

The relay can manage a maximum current of 0.1A, making it suitable for light loads.

Can it withstand extreme temperatures?

Yes, it operates effectively within a temperature range of -10°C to +55°C, allowing use in various environmental conditions.

Brand	Omron
Supply Voltage	12 → 48 V dc, 24 → 48V ac
Mounting Type	DIN Rail
Mode of Operation	ON Delay
Time Range	0.05 s → 300h
Number of Contacts	8
Number of Timer Functions	Multi Function
Time Increment	Hours, Minutes, Seconds
Maximum Current	0.1A
Maximum Voltage	48V ac/dc
Terminal Type	Crimp
Power Supply	Internal
Minimum Voltage	12 V dc, 24V ac
Width	48mm
Length	48mm
Depth	81.6mm
Maximum Operating Temperature	+55°C
Series	H3CR
Contact Material	Ag Alloy
Minimum Operating Temperature	-10°C
