OMRON H3CR-FN AC24-48/DC12-48 | Timer Relay | 0.05 s-30 h, 12-48 V DC, 24-48 V AC, DPDT

Name: OMRON H3CR-FN AC24-48/DC12-48 | Timer Relay | 0.05 s-30 h, 12-48 V DC, 24-48 V AC, DPDT
Brand: OMRON
SKU: H3CR-FN AC24-48/DC12-48
Availability: InStock

Part Number : H3CR-FN AC24-48/DC12-48

The OMRON H3CR-FN AC24-48/DC12-48 is an H3CR timer relay offering a 0.05 s to 30 h time range and operating from 12 to 48 V DC, 24 to 48 V AC; its listed mode of operation is flicker-on start.

Output contacts: DPDT, 5 A maximum
Mounting: DIN rail
Terminals: plug-in
Maximum switching voltage: 48 V AC/DC
Supply voltage: 12 to 48 V DC, 24 to 48 V AC

Availability: low stock

Detailed Description
Specifications
Downloads

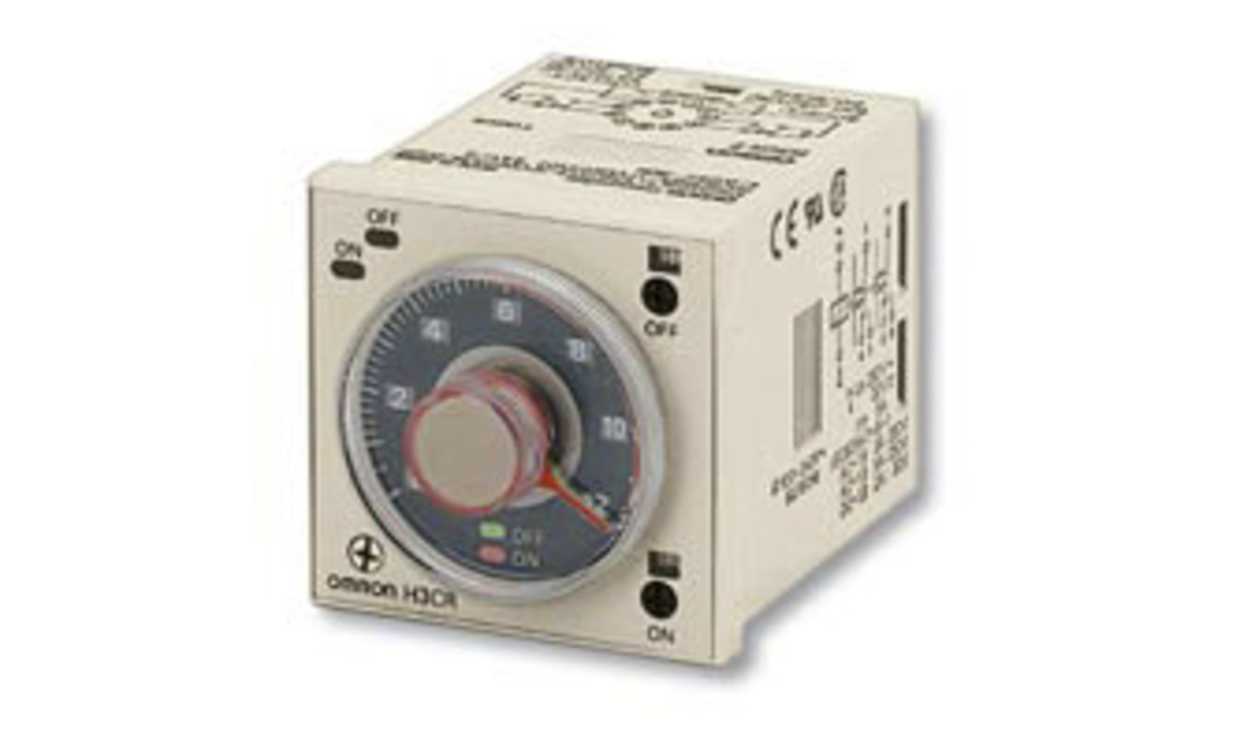

Omron H3CR Series Timer Relay, 12 to 48V DC Supply Voltage, 11 Contacts - H3CR-FN AC24-48/DC12-48

This timer relay is an essential component for industrial automation, suitable for controlling timed operations. Designed for mounting on a DIN rail, it operates within a supply voltage range of 12 to 48V DC and 24 to 48V AC. With dimensions of 48mm in width, 84mm in depth, and 48mm in length, it features a robust dual-function mechanism, making it a reliable choice for various applications.

Features & Benefits

• Operates with a time range of 0.05 s to 30 h
• Offers dual timer functions for flexible operation
• Equipped with 11 contacts for diverse connection options
• Supports a maximum current of 5A for heavy-duty applications
• Utilises a plug-in terminal type for easy installation
• Designed to function at temperatures from -10 °C to +55 °C

Applications

• Utilised in automated machinery for precise timing control
• Ideal for lighting systems requiring flicker ON start operation
• Used for controlling HVAC systems to optimise energy efficiency
• Suitable for various industrial equipment requiring timed functions

What type of relay configuration does this device use?

It features a DPDT (Double Pole Double Throw) configuration, allowing for versatile control setups in automation applications.

How does the time increment feature enhance usability?

The timer relay allows for time increments in hours, minutes, and seconds, making it adaptable for tasks that require precise timing adjustments.

What are the environmental operational limits for this relay?

It can operate within a temperature range of -10 °C to +55 °C, ensuring reliability in various working conditions.

Brand	Omron
Supply Voltage	12 → 48 V dc, 24 → 48V ac
Mounting Type	DIN Rail
Mode of Operation	Flicker ON Start
Time Range	0.05 s → 30h
Number of Contacts	11
Number of Timer Functions	Dual Function
Contact Configuration	DPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	48V ac/dc
Switch Configuration	DPDT
Terminal Type	Plug In
Power Supply	External
Minimum Voltage	12 V dc, 24V ac
Width	48 mm
Length	48 mm
Depth	84 mm
Minimum Current	10 mA
Series	H3CR

OMRON H3CR-FN AC24-48/DC12-48 | Timer Relay | 0.05 s-30 h, 12-48 V DC, 24-48 V AC, DPDT

DOWNLOAD CATALOG

H3CR-FN AC24-48 DC12-48 Selection Guide - H3 and H5 Series A700000014532075

OMRON H3CR-FN AC24-48/DC12-48 | Timer Relay | 0.05 s-30 h, 12-48 V DC, 24-48 V AC, DPDT

Omron H3CR Series Timer Relay, 12 to 48V DC Supply Voltage, 11 Contacts - H3CR-FN AC24-48/DC12-48
