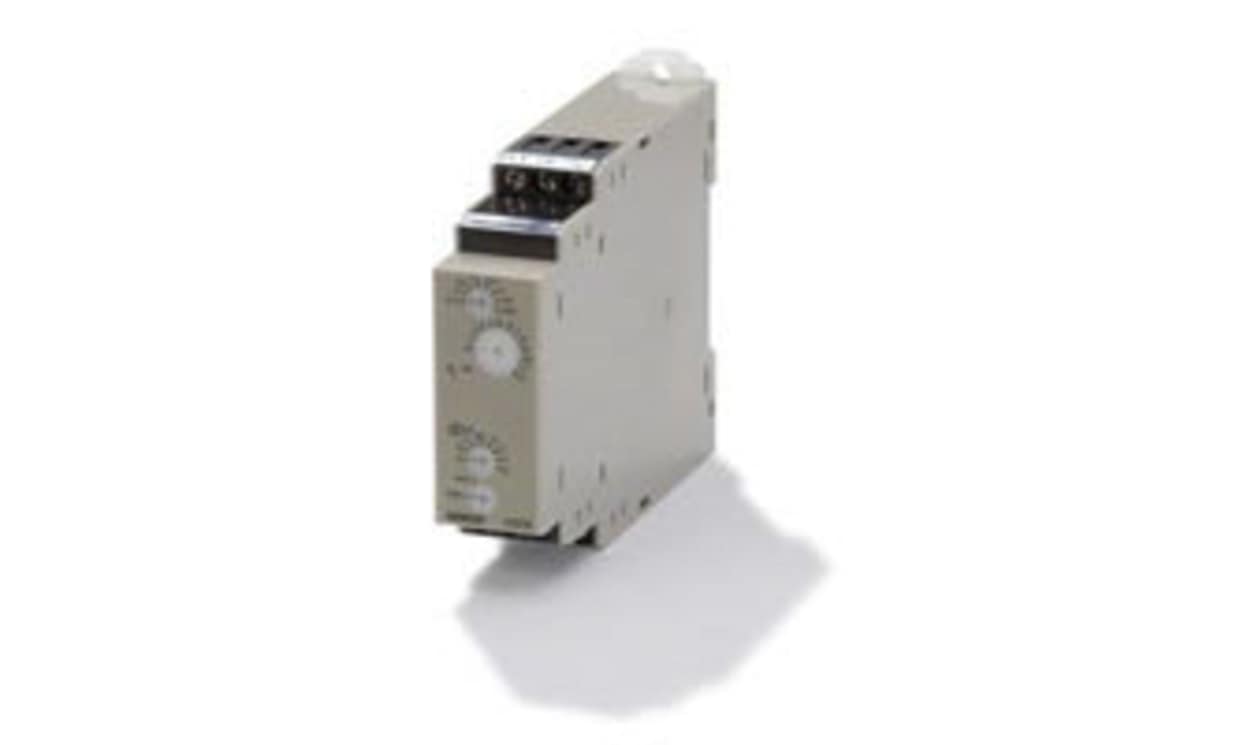

OMRON H3DK-FA DC12 | Timer Relay | 0.1 s-100 h, 12 V DC, SPDT

Name: OMRON H3DK-FA DC12 | Timer Relay | 0.1 s-100 h, 12 V DC, SPDT
Brand: OMRON
SKU: H3DK-FA DC12
Availability: InStock

Part Number : H3DK-FA DC12

OMRON's H3DK-FA DC12 H3DK timer relay runs on 12 V DC and provides timing over 0.1 s to 100 h; its specified operating mode is on/off-delay.

Contact configuration: SPDT, 5 A maximum
Mounting: DIN rail
Terminals: screw
Maximum switching voltage: 12 V DC
Operating temperature: up to +55 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Omron Timer Relay

The Omron H3DK series is a multifunction relay. It has an OFF/ON delay along with 2 changeover contacts and is DIN rail mount. The relay requires a supply voltage of 12VDC and a maximum current rating of 5A. It has an adjustable time range between 0.01sec and 100hours.

Features and Benefits

• Contact configuration is SPDT
• Operating temperature ranges between -20°C and 55°C
• Screw terminal type

Applications

• Industrial application
• Timing control

Certifications

• CE approved
• CSA certified
• EN 61812-1
• UL certified

Brand	Omron
Supply Voltage	12V dc
Mounting Type	DIN Rail
Mode of Operation	ON/OFF Delay
Time Range	0.1 s → 100h
Number of Contacts	2
Number of Timer Functions	Multi Function
Contact Configuration	SPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	12V dc
Switch Configuration	SPDT
Terminal Type	Screw
Power Supply	External
Width	79mm
Maximum Operating Temperature	+55°C
Length	22.5mm
Minimum Current	0.1A
Series	H3DK
Depth	100mm
