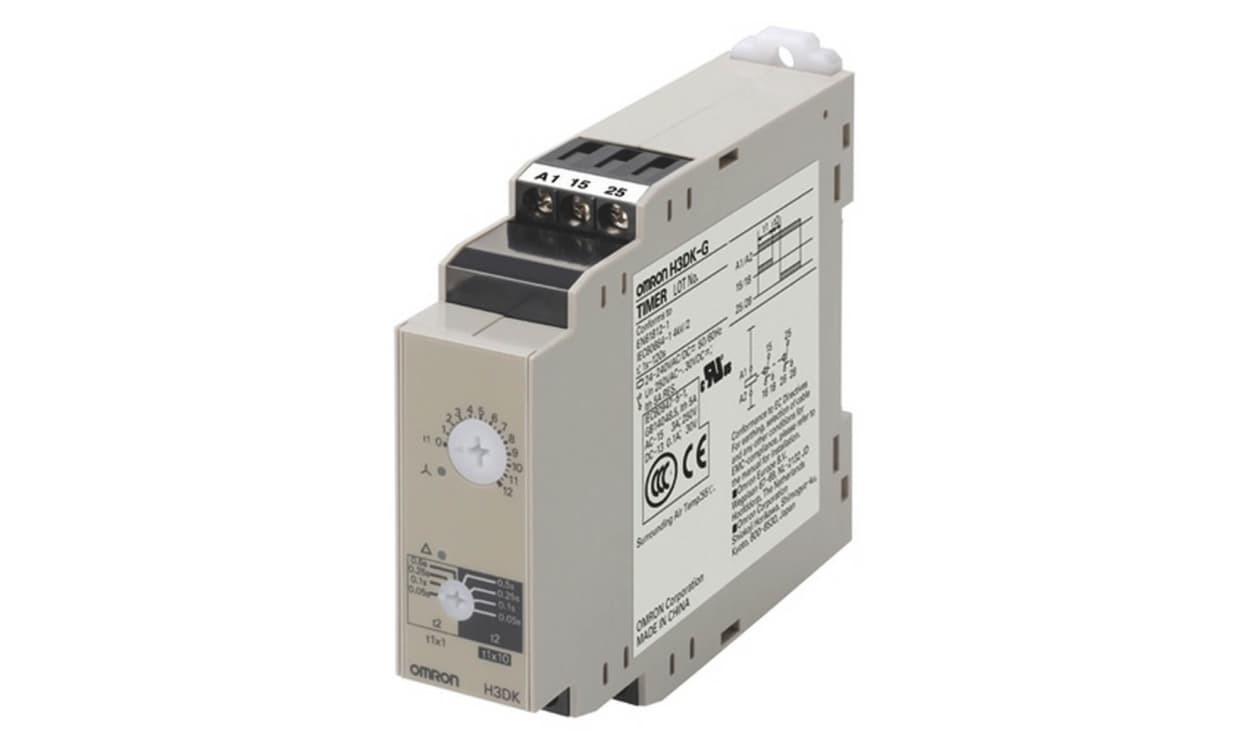

Omron H3DK-G 24-240VAC/DC, DIN Rail Mount Timer Relay, 24-240V ac/dc, 2-Contact, 1 → 120s, 1-Function, DPDT

Name: Omron H3DK-G 24-240VAC/DC, DIN Rail Mount Timer Relay, 24-240V ac/dc, 2-Contact, 1 → 120s, 1-Function, DPDT
Brand: OMRON
SKU: H3DK-G 24-240VAC/DC
Availability: OutOfStock

Part Number : H3DK-G 24-240VAC/DC

Timer, DIN rail mounting, 22.5mm, star-delta-delay, 1-120s, DPDT, 5 A, 24-240 VAC/DC

Availability: Sold out

Detailed Description
Specifications
Features

Omron Timer Relay, DPDT Contact Configuration, 1 to 120s Time Range - H3DK-G AC/DC24-240

The Omron H3DK-G Timer Relay is essential for automation systems, allowing for precise control of electrical operations. It effectively manages star-delta starting configurations, making it particularly useful in industrial settings where efficiency and timing are critical. Designed for DIN rail mounting, this relay ensures easy installation and integration into existing systems, making it suitable for professionals in the electrical and mechanical industries.

Features & Benefits

• Operates efficiently with a supply voltage of 24 to 240 V
• Time range adjustable from 1 to 120 seconds
• Two DPDT relay contacts provide versatile connectivity
• Designed for a single function, promoting simplicity and reliability
• Well-suited for star-delta applications to enhance performance
• Quick installation on standard DIN rail, improving efficiency

Applications

• Utilised with electric motors for effective star-delta starting
• Employed in automation systems for sequential timing control
• Applicable for timing circuits in production machinery
• Useful in HVAC systems for efficient operational timing

How does one adjust the timing range?

The timing range can be set using the designated control on the device, allowing flexibility between 1 and 120 seconds.

What types of systems is it compatible with?

It is compatible with most standard electrical control panels and automation systems that use a supply voltage of 24-240V.

Is it suitable for outdoor installations?

This relay is mainly designed for indoor use

additional protection should be considered if used outdoors.

Can it be mounted alongside other DIN rail components?

Yes, it can be mounted alongside other DIN rail components without any issues.

Brand	Omron
Supply Voltage	24-240V ac/dc
Mounting Type	DIN Rail
Mode of Operation	Star Delta
Time Range	1 → 120s
Number of Contacts	2
Number of Timer Functions	Single
Contact Configuration	DPDT
Maximum Voltage	240V
Width	22.5mm
Maximum Operating Temperature	+55°C
Length	89.4mm
Depth	100mm
Minimum Operating Temperature	-20°C
Contact Material	Ag Alloy

Timer, DIN rail mounting, 22.5mm, star-delta-delay, 1-120s, DPDT, 5 A, 24-240 VAC/DC
