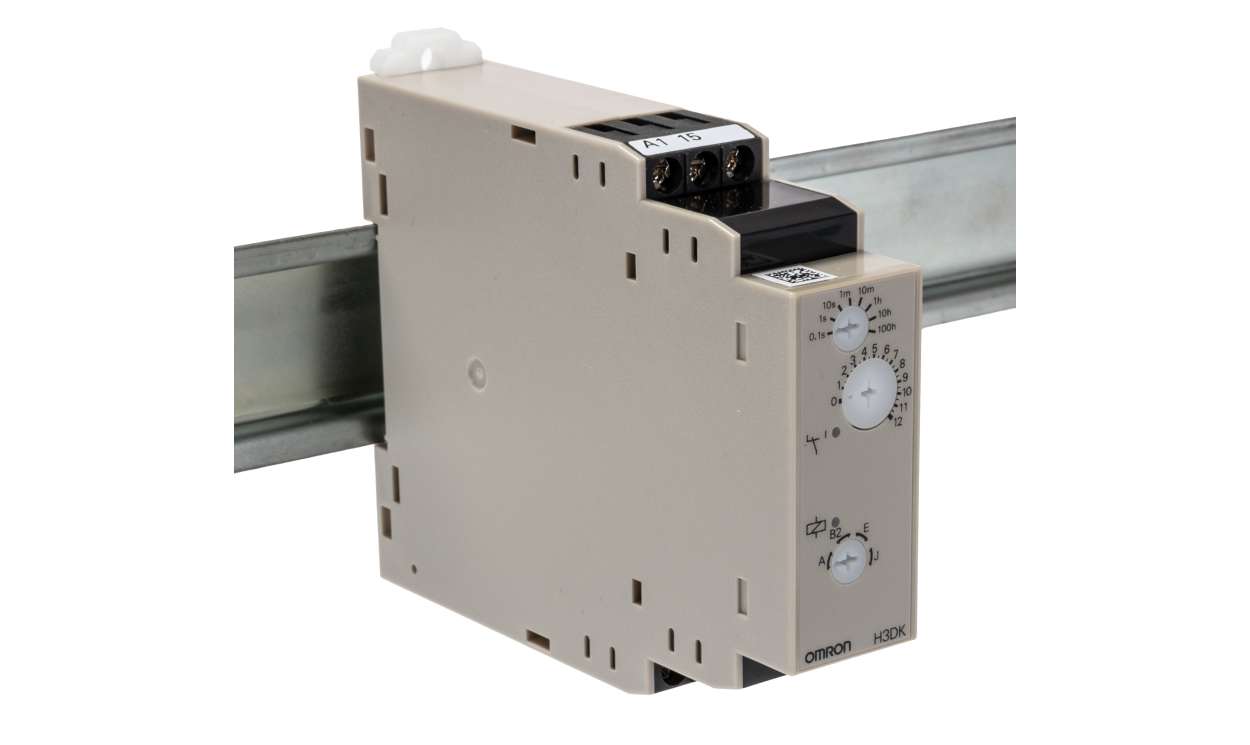

Omron H3DK-S1A DC12, H3DK Series DIN Rail Mount Timer Relay, 12V dc, 1-Contact, 0.1 s → 1200 h, SPDT

Name: Omron H3DK-S1A DC12, H3DK Series DIN Rail Mount Timer Relay, 12V dc, 1-Contact, 0.1 s → 1200 h, SPDT
Brand: OMRON
SKU: H3DK-S1A DC12
Availability: OutOfStock

Part Number : H3DK-S1A DC12

Availability: Sold out

Detailed Description
Specifications

Omron H3DK Series Timer Relay, 12V DC Supply Voltage, SPDT Contact Configuration - H3DK-S1A DC12

This timer relay plays an important role in automation and control systems by providing precise timing functions crucial for industrial applications. It features a one-shot mode, allowing timed activation of connected devices. Its advanced functionality and ease of integration make it a vital component in various electrical and mechanical systems.

Features & Benefits

• Operates on a 12V DC supply for diverse Applications
• Provides a time range from 0.1s to 1200h
• Includes multi-function capabilities for added versatility
• Screw terminal connections for straight installation
• Supports SPDT configuration for consistent switching

Applications

• Suitable for automatic lighting control systems
• Ideal for delay circuits in industrial machinery
• Utilised for timed operations in HVAC equipment
• Employed in conveyor belt systems for process automation

How does the timer manage different time settings?

It allows for both short (0.1s) and long durations (up to 1200h).

What type of connections does it use for setup?

The setup is facilitated through screw terminal connections, ensuring secure wiring.

Brand	Omron
Supply Voltage	12V dc
Mounting Type	DIN Rail
Mode of Operation	One Shot
Time Range	0.1 s → 1200 h
Number of Contacts	1
Number of Timer Functions	Multi Function
Contact Configuration	SPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	12V dc
Terminal Type	Screw
Switch Configuration	SPDT
Power Supply	External
Width	79mm
Maximum Operating Temperature	+55°C
Minimum Current	0.1A
Length	22.5mm
Series	H3DK
Depth	100mm
