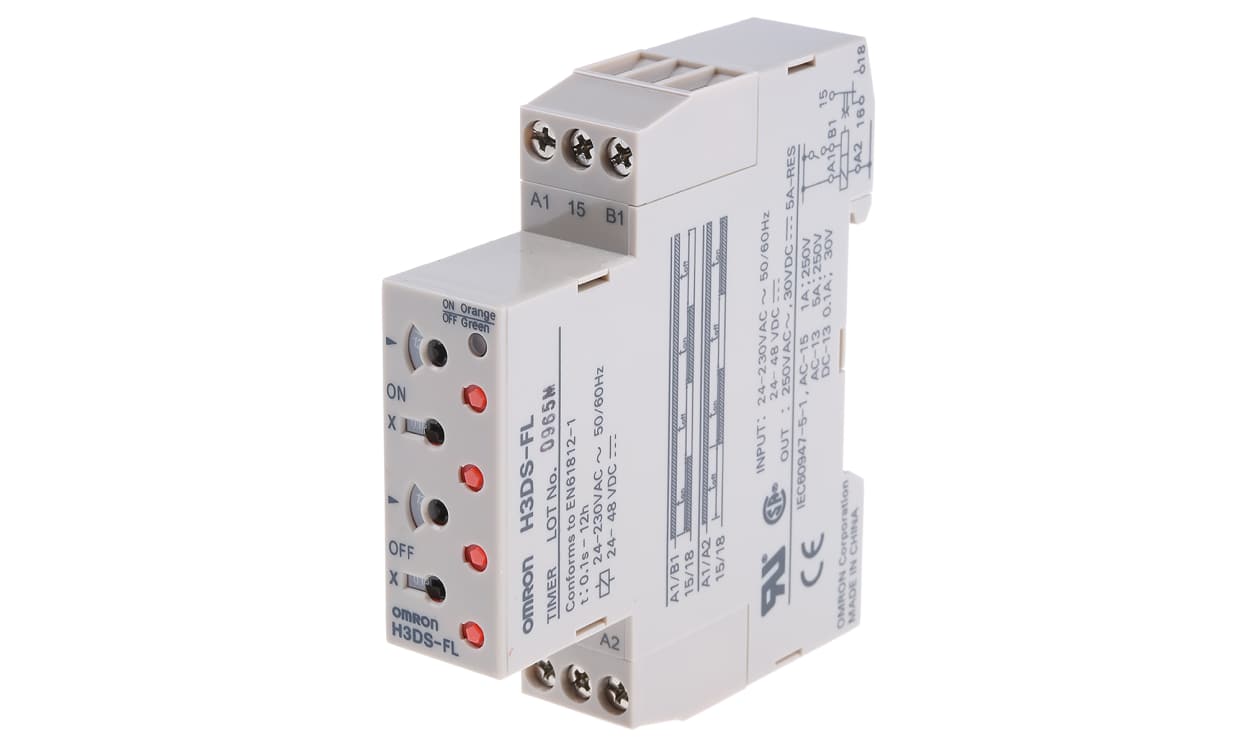

Omron H3DS-FL, H3DS Series DIN Rail Mount Timer Relay, 24 → 230 V ac, 24 → 48V dc, 1-Contact, 0.1 s → 12h

Name: Omron H3DS-FL, H3DS Series DIN Rail Mount Timer Relay, 24 → 230 V ac, 24 → 48V dc, 1-Contact, 0.1 s → 12h
Brand: OMRON
SKU: H3DS-FL
Availability: OutOfStock

Part Number : H3DS-FL

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron H3DS Series Timer Relay, 24 to 230V AC/24 to 48V DC Supply Voltage, 0.1s to 12h Time Range - H3DS-FL

This timer relay is designed for various automation tasks, enabling precise control over electrical circuits. It accommodates a wide supply voltage range of 24 to 230 V AC and 24 to 48 V DC, making it essential for both industrial and commercial settings. With its multi-function capabilities and temperature resilience, it serves as a valuable tool for professionals in the automation, electrical, and mechanical fields.

Features & Benefits

• Supports a broad supply voltage range for adaptability
• Multi-function capability enhances operational versatility
• Timing range from 0.1 seconds to 12 hours for accurate timing
• Flicker ON/OFF modes provide flexible control options
• External power supply simplifies installation
• Maximum current rating of 5A accommodates diverse applications

Applications

• Suitable for control processes in industrial automation systems
• Utilised in heating and cooling systems requiring timers
• Applicable for time-sensitive machinery operations
• Effective in lighting control
• Employed in equipment needing external power for timing functions

Can it operate in extreme temperatures?

Yes, it functions effectively within a temperature range of -10°C to +55°C.

What is the minimum voltage required for operation?

The minimum voltage required is 5V DC.

How is it mounted?

The unit is designed for straightforward installation on DIN rails.

Is it compatible with both AC and DC systems?

Yes, it operates with both AC and DC supply, enhancing versatility.

Approvals

UL, CSA

Brand	Omron
Supply Voltage	24 → 230 V ac, 24 → 48V dc
Mounting Type	DIN Rail
Mode of Operation	Flicker OFF, Flicker ON
Time Range	0.1 s → 12h
Number of Contacts	1
Number of Timer Functions	Multi Function
Time Increment	Hours, Seconds
Maximum Current	5A
Maximum Voltage	125V dc
Terminal Type	Screw
Switch Configuration	SPDT
Power Supply	External
Minimum Voltage	5V dc
Width	17.5mm
Depth	73mm
Series	H3DS
Minimum Current	10mA
Length	80mm
Maximum Operating Temperature	+55°C

Omron H3DS-FL, H3DS Series DIN Rail Mount Timer Relay, 24 → 230 V ac, 24 → 48V dc, 1-Contact, 0.1 s → 12h

DOWNLOAD CATALOG

H3DS-FL Brochure - Screw-Less Clamp Solutions A700000012100939
