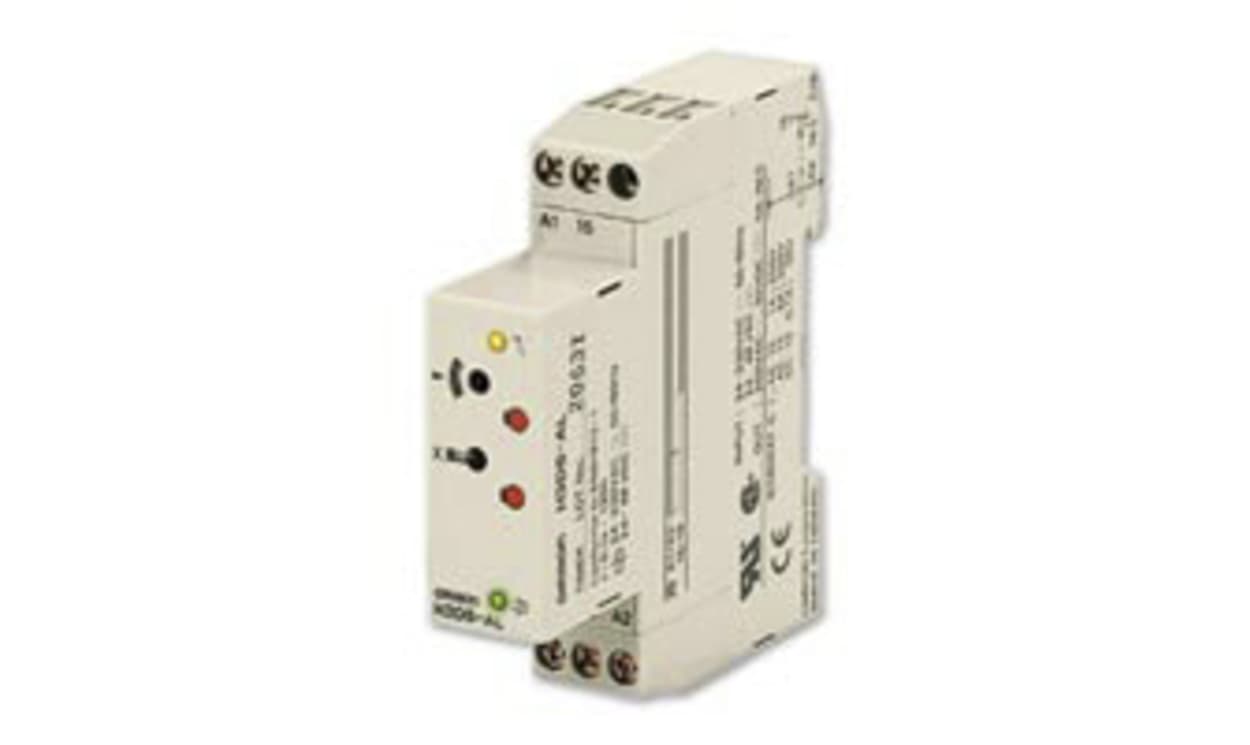

Omron H3DS-FLC, H3DS Series DIN Rail Mount Timer Relay, 24 → 230 V ac, 24 → 48V dc, 2-Contact, 0.1 s → 120h,

Name: Omron H3DS-FLC, H3DS Series DIN Rail Mount Timer Relay, 24 → 230 V ac, 24 → 48V dc, 2-Contact, 0.1 s → 120h,
Brand: OMRON
SKU: H3DS-FLC
Availability: OutOfStock

Part Number : H3DS-FLC

Availability: Sold out

Detailed Description
Specifications

Analog Set Multi-function, Ultra-Slim17.5 mm Timers for Track Mounting

Wide AC/DC power supply range (24 to 230 VAC/24 to 48 VDC) minimizes inventory
Smart Dial/Selector-Locking Mechanism prevents the dials and selectors on the timer’s front panel from being operated without authorization (lock can only be unlocked and locked with an optional pen-type Lock Key)
Eight operating modes (H3DS-M) and four operating modes (H3DS-S) to cover a wide range of applications
Offers wide time setting range of 0.10 s to 120 h
Finger protection terminal block prevents shock
High immunity to inverter noise

Brand	Omron
Supply Voltage	24 → 230 V ac, 24 → 48V dc
Mounting Type	DIN Rail
Mode of Operation	Flicker-OFF/Flicker-ON Start
Time Range	0.1 s → 120h
Number of Contacts	2
Number of Timer Functions	Multi Function
Contact Configuration	SPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	48 V dc, 230V ac
Terminal Type	Screw
Switch Configuration	SPDT
Power Supply	Internal
Width	80mm
Minimum Voltage	24V ac/dc
Depth	74mm
Series	H3DS
Maximum Operating Temperature	+55°C
Length	17.5mm
