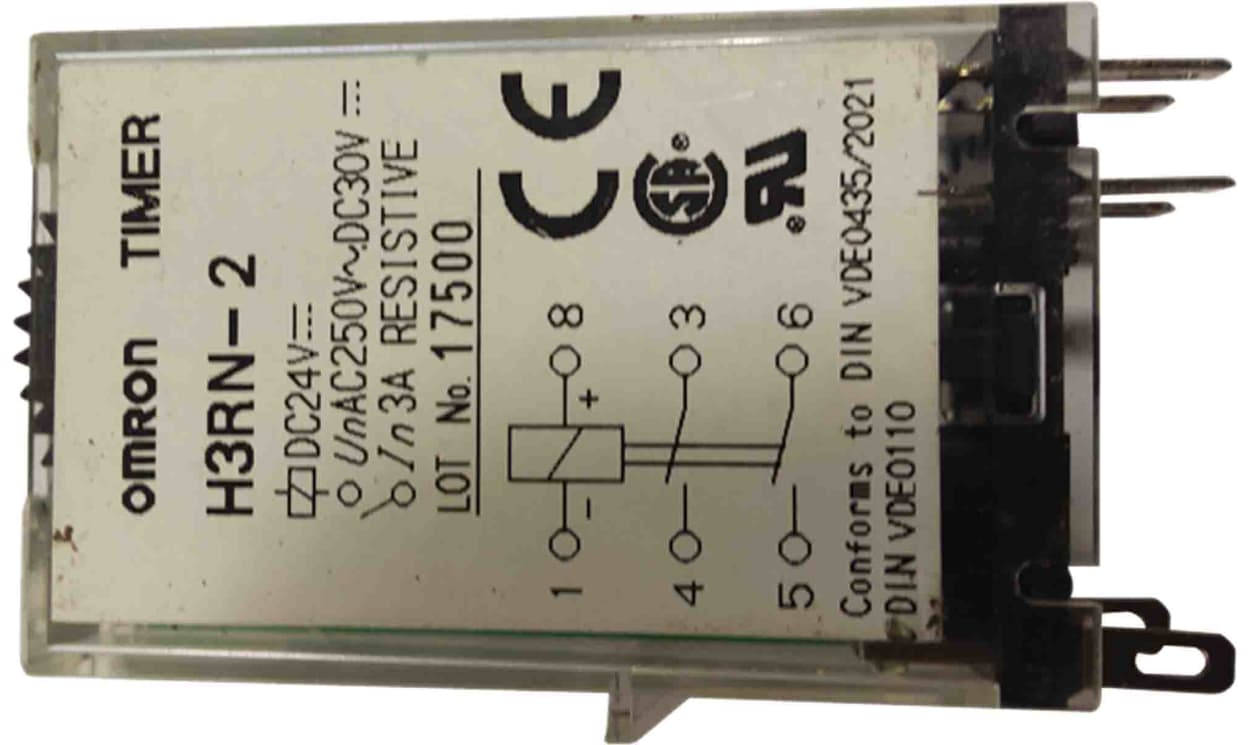

OMRON H3RN-21 24VDC | Plug-In Multifunction Timer Relay | 24 V DC, 0.1 min–10 h, DPST
Part Number : H3RN-21 24VDC
OMRON H3RN-21 24VDC: a 24 V DC H3RN series plug-in multifunction timer relay with timing from 0.1 min to 10 h. Further H3RN-21 24VDC details: DPST output and a 3 A maximum current rating.
- Timing modes: Flicker OFF Start, Flicker ON Start (DIP switch selectable), Interval, ON Delay
- Socket terminal connection
- Dimensions: 12.8 mm wide, 31.2 mm long and 53.4 mm deep (as listed)
- Operating temperature -10 to +55 °C
For pricing, please contact our experts.
Ultra-slim Multifunction Relay Timer - H3RN
• Functions - 143, 421, 611, 612 (for explanation of these functions refer to introductory pages in the 'Timers' section).
• Ultra slim 13 mm design, for G2R relay socket.
• Dimensions W46mm, D13mm, H29 mm.
• Creepage and Clearance 1.5 mm; 2.5 mm.
• Operating Accuracy +/- 1% FS max
• Switching Voltage 250 Vac.
• Ultra slim 13 mm design, for G2R relay socket.
• Dimensions W46mm, D13mm, H29 mm.
• Creepage and Clearance 1.5 mm; 2.5 mm.
• Operating Accuracy +/- 1% FS max
• Switching Voltage 250 Vac.
Standards
EN61812-1
Approvals
UL recognised component, CSA certified
Approvals
UL recognised component, CSA certified
Standards
EN61812-1
