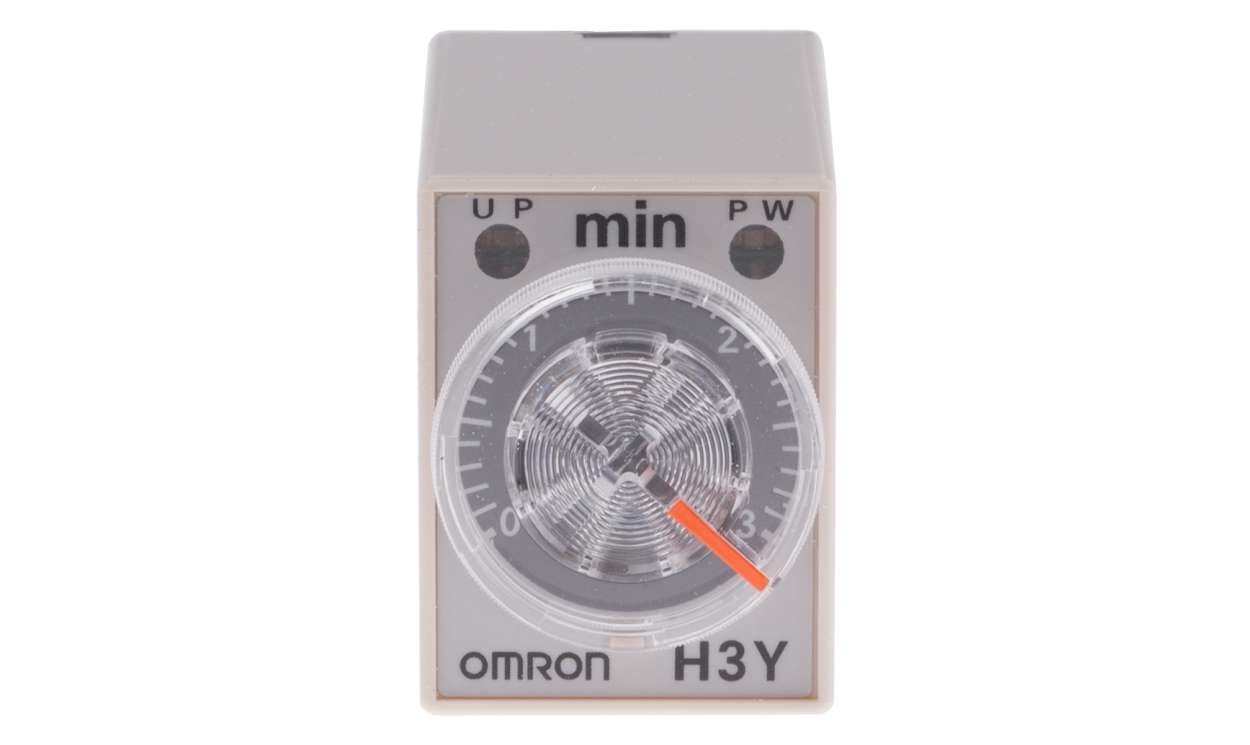

OMRON H3Y-4 AC200-230 3M | On-Delay Timer Relay | 200–230 V AC, 0.1–3 min, 4PDT

Name: OMRON H3Y-4 AC200-230 3M | On-Delay Timer Relay | 200–230 V AC, 0.1–3 min, 4PDT
Brand: OMRON
SKU: H3Y-4 AC200-230 3M
Availability: InStock

Part Number : H3Y-4 AC200-230 3M

OMRON H3Y-4 AC200-230 3M: a 200 to 230 V AC H3Y-4 series on-delay timer relay with timing from 0.1 to 3 min. The H3Y-4 AC200-230 3M provides 4PDT output, DIN rail or surface mounting and a 5 A maximum current rating.

Operating mode: ON Delay
Single timer function
Plug-in terminal connection
Dimensions: 21.5 mm wide, 28 mm long and 63 mm deep (as listed)
Operating temperature -10 to +50 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Miniature - H3Y4

Function - 111
Pin compatible with MY power relay
Time settings adjustable with a screwdriver
All have 14 pins (rectangular format)

Standards

EN 50081-2, EN50082-2, VDE0435/P2021, VDE0110

Approvals

UL, CSA

Brand	Omron
Supply Voltage	200 → 230V ac
Mounting Type	DIN Rail, Surface Mount
Mode of Operation	ON Delay
Time Range	0.1 → 3min
Number of Contacts	4
Number of Timer Functions	Single
Contact Configuration	4PDT
Time Increment	Minutes
Maximum Current	5A
Maximum Voltage	250V ac
Terminal Type	Plug In
Switch Configuration	4PDT
Width	21.5mm
Power Supply	External
Length	28mm
Depth	63mm
Series	H3Y-4
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	-10°C

OMRON H3Y-4 AC200-230 3M | On-Delay Timer Relay | 200–230 V AC, 0.1–3 min, 4PDT
