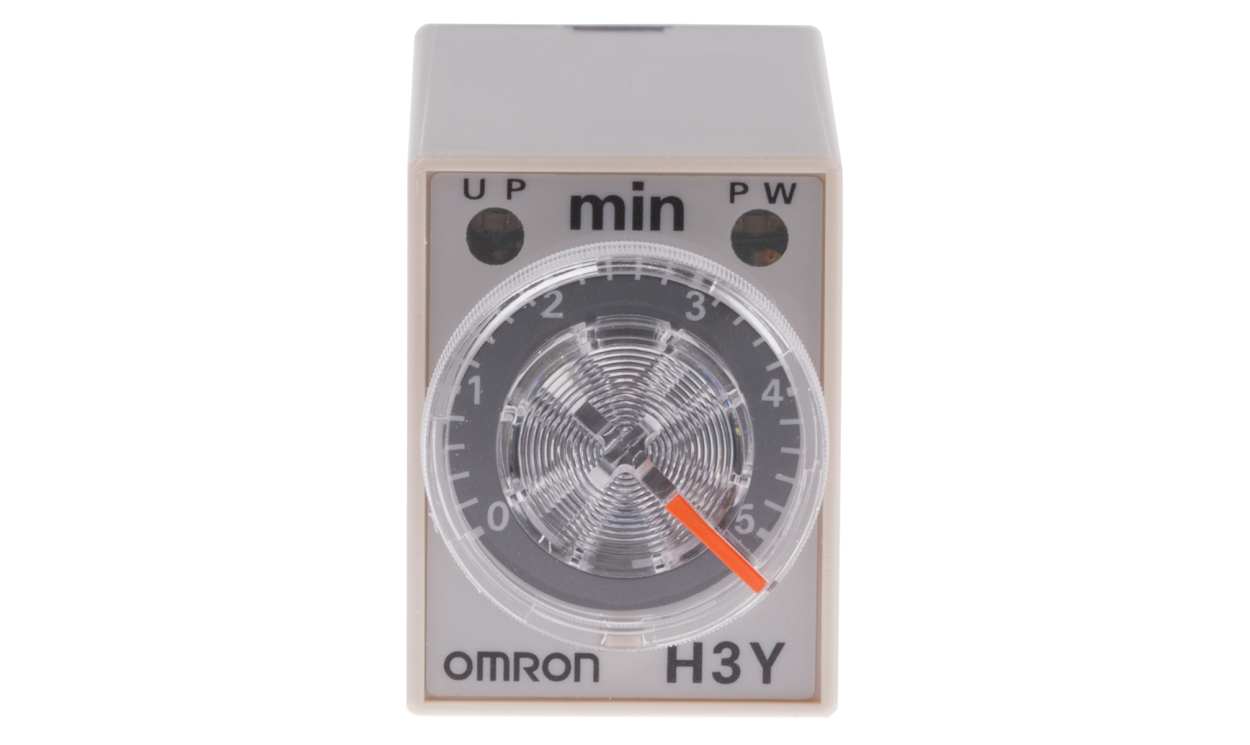

OMRON H3Y-4 AC200-230 5M | Timer Relay | 200–230 V AC, 0.2–5 min, 4PDT
Part Number : H3Y-4 AC200-230 5M
The OMRON H3Y-4 AC200-230 5M is an H3Y-4 series timer relay with a 0.2 to 5 min time range, powered from 200 to 230 V AC. Listed specifications for the H3Y-4 AC200-230 5M include 4PDT output, DIN rail or surface mounting and a 5 A maximum current rating.
- Operating mode: Time Limit Operation
- Single timer function
- Plug-in terminal connection
- Dimensions: 21.5 mm wide, 28 mm long and 63 mm deep (as listed)
- Operating temperature -10 to +50 °C
For pricing, please contact our experts.
Omron H3Y-4 Series Timer Relay, 200 to 230V AC Supply Voltage, 4PDT Contact Configuration - H3Y-4 AC200-230 5M
This timer relay is an essential component for time-sensitive applications within the automation and electrical industries. Designed for stability and efficiency, it operates on a supply voltage of 200-230V AC and features a compact form, measuring 21.5mm in width, 63mm in depth, and 28mm in length. The device incorporates a time limit operation mode with an adjustable time range from 0.2 to 5 minutes, making it highly versatile for various uses.
Features & Benefits
• Supports a maximum current of 5A for robust operations
• Utilises a 4PDT contact configuration for extensive functionality
• Operates effectively in temperatures from -10°C to +50°C
• Easy integration with a plug-in terminal type for user convenience
• Designed for both DIN rail and surface mounting options
• Features a time increment precision of up to 0.1 seconds
• Utilises a 4PDT contact configuration for extensive functionality
• Operates effectively in temperatures from -10°C to +50°C
• Easy integration with a plug-in terminal type for user convenience
• Designed for both DIN rail and surface mounting options
• Features a time increment precision of up to 0.1 seconds
Applications
• Utilised in industrial control circuits for automated processes
• Employed for time-related switching tasks in machinery
• Supports operation in HVAC systems for timed function control
• Integrates seamlessly within electrical panels for enhanced control
• Employed for time-related switching tasks in machinery
• Supports operation in HVAC systems for timed function control
• Integrates seamlessly within electrical panels for enhanced control
What is the maximum operating temperature for reliable performance?
The device can operate efficiently at temperatures up to +50°C, ensuring it remains functional in various environments.
How does this relay enhance time management in automation processes?
With a time range of 0.2 to 5 minutes, it allows for precise control of processes, ensuring tasks are executed within designated timeframes.
What type of mounting options does this component provide?
It supports both DIN rail and surface mounting, facilitating flexible installation in diverse applications based on user needs.
