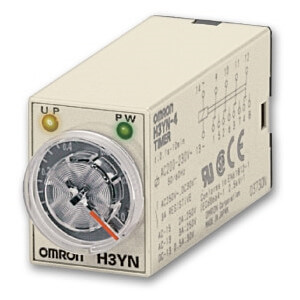

Omron H3YN-2 AC200-230, H3YN Series DIN Rail Mount Timer Relay, 200 → 230V ac, 2-Contact, 0.1 s→ 10min, DPDT

Name: Omron H3YN-2 AC200-230, H3YN Series DIN Rail Mount Timer Relay, 200 → 230V ac, 2-Contact, 0.1 s→ 10min, DPDT
Brand: OMRON
SKU: H3YN-2 AC200-230
Availability: OutOfStock

Part Number : H3YN-2 AC200-230

Timer, plug-in, 8-pin, multifunction, 0.1 s-10 m short-time range model, DPDT, 200-230 VAC supply voltage

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron H3YN Series Timer Relay, 200 to 230V AC Supply Voltage, DPDT Contact Configuration - H3YN-2 AC200-230

This timer relay facilitates precise control in various industrial applications, allowing for efficient management of electrical operations. Operating within a range of 200-230V AC, it serves as a versatile component for automation and control systems. Its interval mode enables adjustable timing, making it a valuable asset for optimising mechanical and electrical processes.

Features & Benefits

• Dual pole, double throw configuration for diverse connections
• Plug-in terminal type simplifies installation and replacement
• Functions effectively over a wide temperature range
• Adjustable time range from 0.1 to 10minutes

Applications

• Ideal for automation systems requiring precise timing
• Suitable for controlling motor operations in machinery
• Utilised in HVAC systems for interval control functions
• Used for lighting control in industrial environments

How do I install the relay?

The relay can be securely mounted onto a DIN rail, with plug-in terminals facilitating quick wiring and installation.

What voltage range can this relay handle?

It operates within a supply voltage range of 200-230V AC, appropriate for various industrial applications requiring this specification.

What is the maximum temperature this relay can withstand?

The relay is capable of functioning effectively in environments with a maximum operating temperature of +50°C, ensuring performance in warmer settings.

How many contacts does the relay have?

This model features two contacts, supporting dual pole, double throw configurations for varied application possibilities.

Brand	Omron
Supply Voltage	200 → 230V ac
Mounting Type	DIN Rail
Mode of Operation	Interval
Time Range	0.1 s→ 10min
Number of Contacts	2
Number of Timer Functions	Multi Function
Contact Configuration	DPDT
Time Increment	Minutes, Seconds
Maximum Voltage	230V ac
Switch Configuration	DPDT
Terminal Type	Plug In
Minimum Voltage	200V ac
Width	21.5mm
Series	H3YN
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	-10°C

Timer, plug-in, 8-pin, multifunction, 0.1 s-10 m short-time range model, DPDT, 200-230 VAC supply voltage
