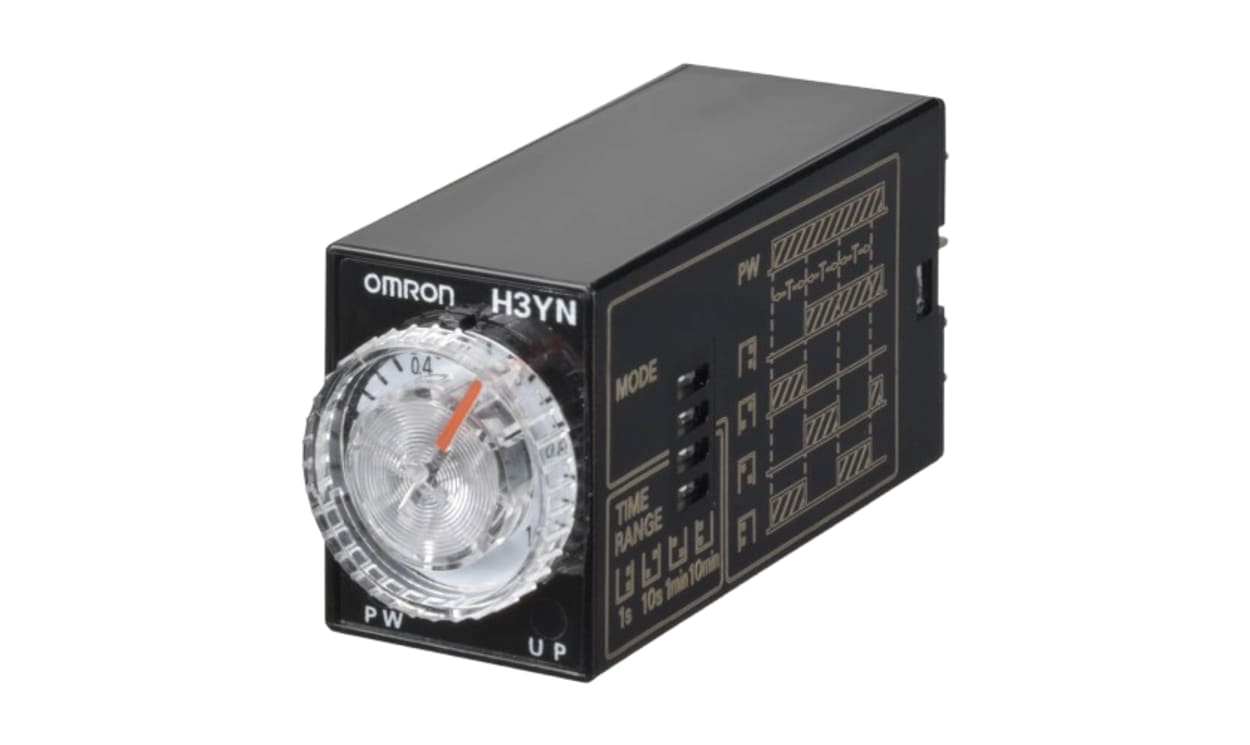

OMRON H3YN-2-B AC200-230 | Panel Mount Multifunction Timer Relay | 200–230 V AC, 0.1 s–10 min, DPDT

Name: OMRON H3YN-2-B AC200-230 | Panel Mount Multifunction Timer Relay | 200–230 V AC, 0.1 s–10 min, DPDT
Brand: OMRON
SKU: H3YN-2-B AC200-230
Availability: InStock

Part Number : H3YN-2-B AC200-230

Covering a 0.1 s to 10 min time range, the OMRON H3YN-2-B AC200-230 H3YN series panel mount multifunction timer relay runs on a 200 to 230 V AC supply. On the H3YN-2-B AC200-230 you get DPDT output and a 5 A maximum current rating.

Timing modes: Delay ON, Flicker OFF Start, Flicker ON Start
Push-in terminals
Dimensions: 56.6 mm wide, 21.5 mm long and 28 mm deep (as listed)
Operating temperature -10 to +55 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Omron H3YN Series Timer Relay, 200 to 230 V AC Supply Voltage, 8 Contacts - H3YN-2-B AC200-230

This timer relay is a crucial device in automation and control applications, available in a compact design with a supply voltage ranging from 200 to 230 V AC. With dimensions of 56.6mm in width, 28mm in depth, and 21.5mm in height, it is engineered for panel mounting and offers versatile functionality tailored to the needs of the industrial sector.

Features & Benefits

• Supports delay ON and flicker OFF/ON start modes for flexibility
• External power supply requirement simplifies installation in various settings
• Designed with a plug-in terminal type for easy connectivity
• Complies with EMC standards for reliable operation in industrial environments

Applications

• Used for machine cycle control in manufacturing automation
• Effective in HVAC systems for time-based operation schedules
• Integrated with alarm systems for delay functions
• Used for lighting control in commercial premises
• Enhances process automation in industrial machinery

What voltage range can it operate on?

It operates effectively within a supply voltage range of 200 to 230 V AC, ensuring compatibility with various industrial power systems.

How does the time setting work for different applications?

The timer relay features a time range from 0.1 seconds to 10 minutes, adjustable easily via a transparent knob, suitable for both precise timing and longer delays.

Can it handle multiple contacts at once?

Yes, the timer relay is equipped with 8 contacts configured as DPDT, capable of managing multiple outputs simultaneously for complex control tasks.

Is it easy to install in existing systems?

The relay's plug-in terminal design allows for straightforward installation into existing control panels, minimising downtime during upgrades.

What are the maximum ratings for voltage and current?

It has a maximum voltage rating of 250V AC and a maximum current rating of 5A, suitable for a variety of loads in industrial applications.

Brand	Omron
Supply Voltage	200 → 230V ac
Mounting Type	Panel Mount
Mode of Operation	Delay ON, Flicker OFF Start, Flicker ON Start
Time Range	0.1 s → 10min
Number of Contacts	4
Number of Timer Functions	Multi Function
Contact Configuration	DPDT
Time Increment	Minutes, Seconds
Maximum Current	5A
Maximum Voltage	250V ac
Switch Configuration	DPDT
Terminal Type	Push In
Power Supply	External
Width	56.6mm
Maximum Operating Temperature	+55°C
Series	H3YN
Length	21.5mm
Depth	28mm
Minimum Operating Temperature	-10°C
