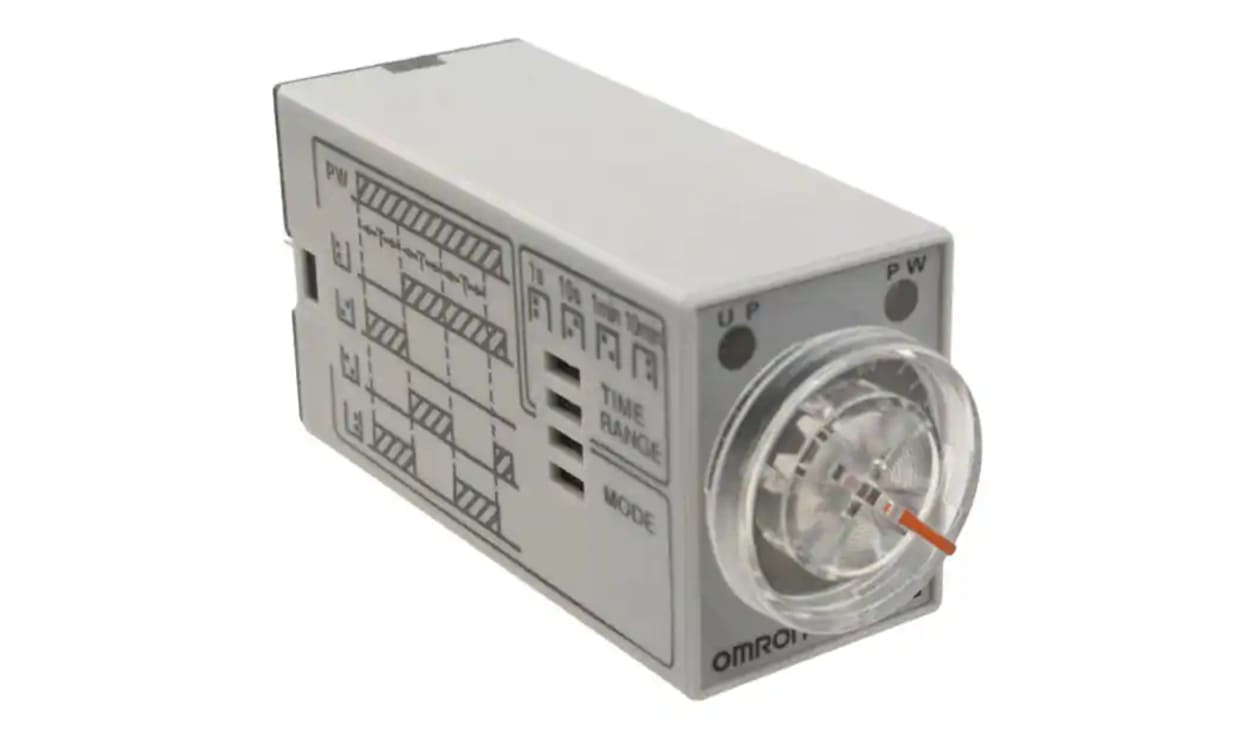

Omron H3YN-2 DC24, H3YN Series DIN Rail Mount Timer Relay, 24V dc, 2-Contact, 0.1 s → 10min

Name: Omron H3YN-2 DC24, H3YN Series DIN Rail Mount Timer Relay, 24V dc, 2-Contact, 0.1 s → 10min
Brand: OMRON
SKU: H3YN-2 DC24
Availability: OutOfStock

Part Number : H3YN-2 DC24

Timer, plug-in, 8-pin, multifunction, 0.1 s-10 m short-time range model, DPDT, 24 VDC supply voltage

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron H3YN Series Timer Relay, 24V DC Supply Voltage, 0.1s to 10min Time Range - H3YN-2 DC24

This timer relay is designed for precision in various timing applications, providing a reliable solution for automation and control systems. With capabilities ranging from brief intervals to extended durations, it is well-suited for environments where accurate timing and control are essential. The product's versatility and performance make it vital for managing operational timings in industrial settings.

Features & Benefits

• Supports multiple timing ranges from 0.1 seconds to 10 minutes
• Configured for interval operation to enhance process control
• Utilises plug-in connections for straightforward installation and maintenance
• Durable design accommodates temperatures from -10°C to +50°C
• DPDT outputs enable flexible control for various circuit configurations

Applications

• Used in automated assembly lines for timed operations
• Employed in HVAC systems for effective cycle management
• Suitable for machinery requiring precise start/stop functions
• Integrated into lighting systems for scheduled control
• Implemented in electrical panels for process synchronisation

How can I integrate this into my existing system?

It features plug-in connectivity and can be easily mounted on DIN rails.

Is it suitable for outdoor applications?

This product is intended for indoor use due to its operational temperature limits and IP40 protection.

What electrical specifications are important for compatibility?

Ensure the supply voltage aligns with the 24V DC specifications for optimal performance.

Can I adjust the timings after installation?

Yes, the settings can be modified using DIP switches for specific time ranges.

What is the expected lifespan under continuous use?

The mechanical lifespan is rated for 10,000,000 operations and 500,000 electrical operations.

Brand	Omron
Supply Voltage	24V dc
Mounting Type	DIN Rail
Mode of Operation	Interval
Time Range	0.1 s → 10min
Number of Contacts	2
Number of Timer Functions	Multi Function
Time Increment	Minutes, Seconds
Maximum Voltage	230V
Switch Configuration	DPDT
Terminal Type	Plug In
Width	21.5mm
Depth	21.5mm
Series	H3YN
Maximum Operating Temperature	+50°C
Length	63mm
Contact Material	Silver
Minimum Operating Temperature	-10°C

Timer, plug-in, 8-pin, multifunction, 0.1 s-10 m short-time range model, DPDT, 24 VDC supply voltage
